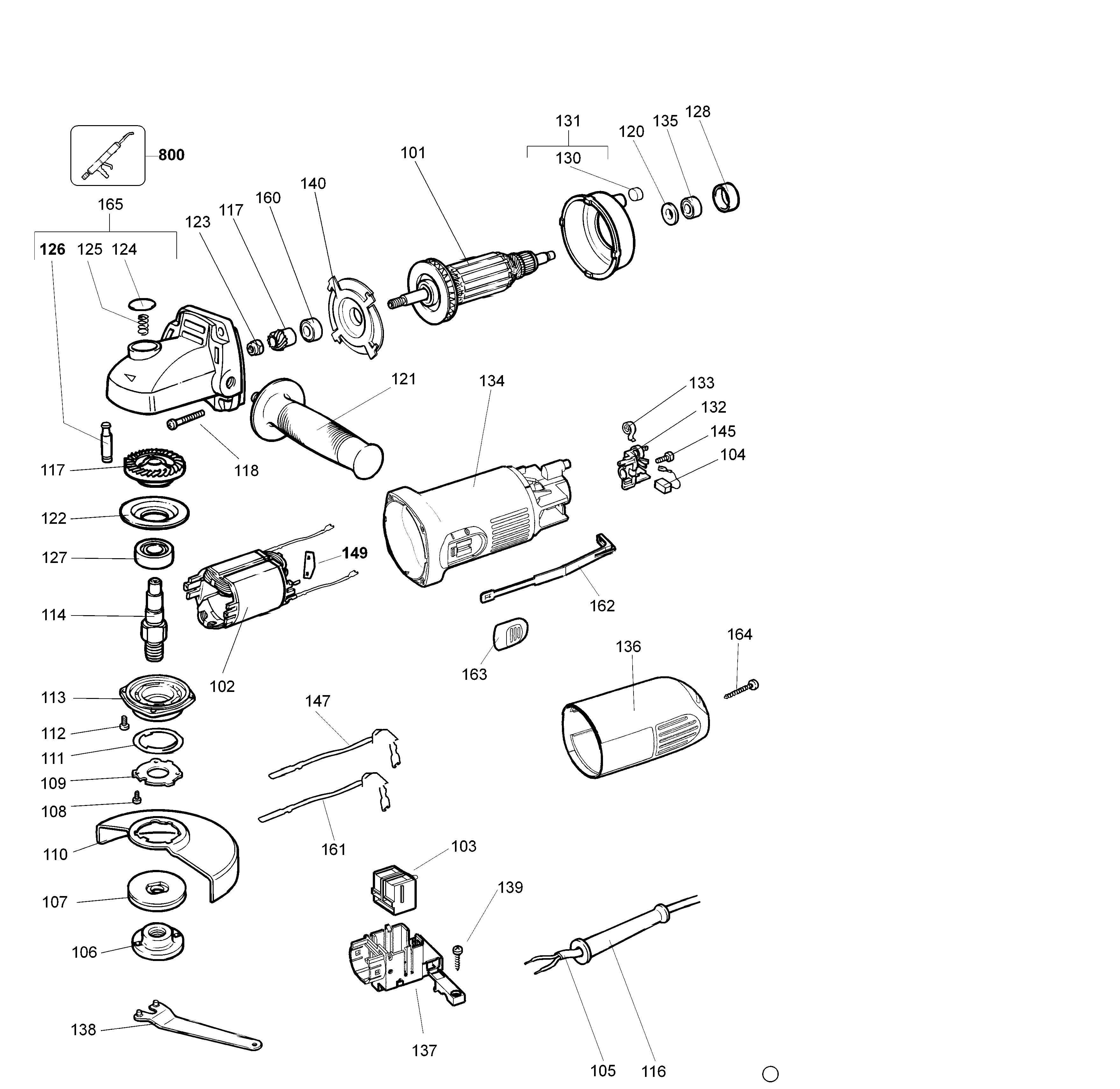

DW824 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 393921-07 | 1 | ARMATURE SA | GB |  |
||
| 102 | 395990-00 | 1 | FIELD 230V | GB |  |
||
| 103 | 945614-00 | 1 | SWITCH | GB | |
||
| 104 | 949646-02 | 2 | BRUSH CUT OFF 230V | GB | |
||
| 105 | 562226-09 | 1 | CABLE | GB | |
||
| 106 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 107 | 930771-00 | 1 | INNER FLANGE | GB | |
||
| 107 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 108 | 562160-00 | 3 | SCREW | GB | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | GB | |
||
| 110 | 944586-00 | 1 | GUARD | GB | |
||
| 111 | 393576-00 | 1 | RING | GB | |
||
| 112 | 562160-01 | 4 | SCREW | GB | |||
| 113 | 390521-00 | 1 | GEARCASE COVER | GB | |
||
| 114 | 393932-01 | 1 | SPINDLE SA | GB | |
||
| 114 | 391971-00 | 1 | SPINDLE | GB | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 116 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 117 | 945295-02 | 1 | GEAR & PINION | GB | |
||
| 118 | 562097-01 | 4 | SCREW | GB | |
||
| 120 | 945287-00 | 1 | SPACER | GB | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | GB | |
||
| 122 | 945590-00 | 1 | FLANGE | GB | |
||
| 123 | 945292-00 | 1 | NUT | GB | |
||
| 124 | 944574-00 | 1 | BUTTON | GB | |
||
| 125 | 562210-00 | 1 | SPRING | GB | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | GB | |
||
| 127 | 605040-22 | 1 | BEARING | GB | |
||
| 128 | 949721-02 | 1 | SLEEVE | GB | |
||
| 128 | 930275-00 | 1 | SLEEVE | GB | |
||
| 129 | 401623-00 | 1 | BAFFLE | GB | |
||
| 130 | 949638-01 | 2 | BUFFER | GB | |
||
| 131 | 401635-00 | 1 | BAFFLE SA | GB | |
||
| 132 | 569925-00 | 2 | BRUSH HOLDER SA | GB | |
||
| 132 | 395985-01 | 2 | BRUSH HOLDER | GB | |
||
| 133 | 562204-00 | 2 | SPRING | GB | |
||
| 134 | 395243-06 | 1 | FIELDCASE SA | GB | |
||
| 135 | 605040-02 | 1 | BEARING | GB | |
||
| 135 | 949625-01 | 1 | BEARING | 8 x 19 x 9 | GB | |
|
| 136 | 394938-01 | 1 | END CAP | GB | |
||
| 137 | 5140000-13 | 1 | SWITCH SUPPORT | GB | |
||
| 138 | 401680-00 | 1 | WRENCH | GB | |
||
| 139 | 562097-05 | 1 | SCREW | GB | |
||
| 140 | 401622-01 | 1 | FLANGE | GB | |
||
| 145 | 562097-00 | 2 | SCREW | GB | |
||
| 149 | 402489-00 | 2 | PAD | GB | |
||
| 150 | 930151-00 | 1 | BRUSH 220V | GB | |
||
| 160 | N110359 | 1 | BEARING | GB | |
||
| 161 | 329021-03 | 1 | LEAD SA | GB | |
||
| 162 | 611737-00 | 1 | LINK | GB | |
||
| 163 | 569624-01 | 1 | BUTTON | GB | |
||
| 164 | 562097-13 | 1 | SCREW | GB | |
||
| 165 | 610704-00 | 1 | SERVICE KIT | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
