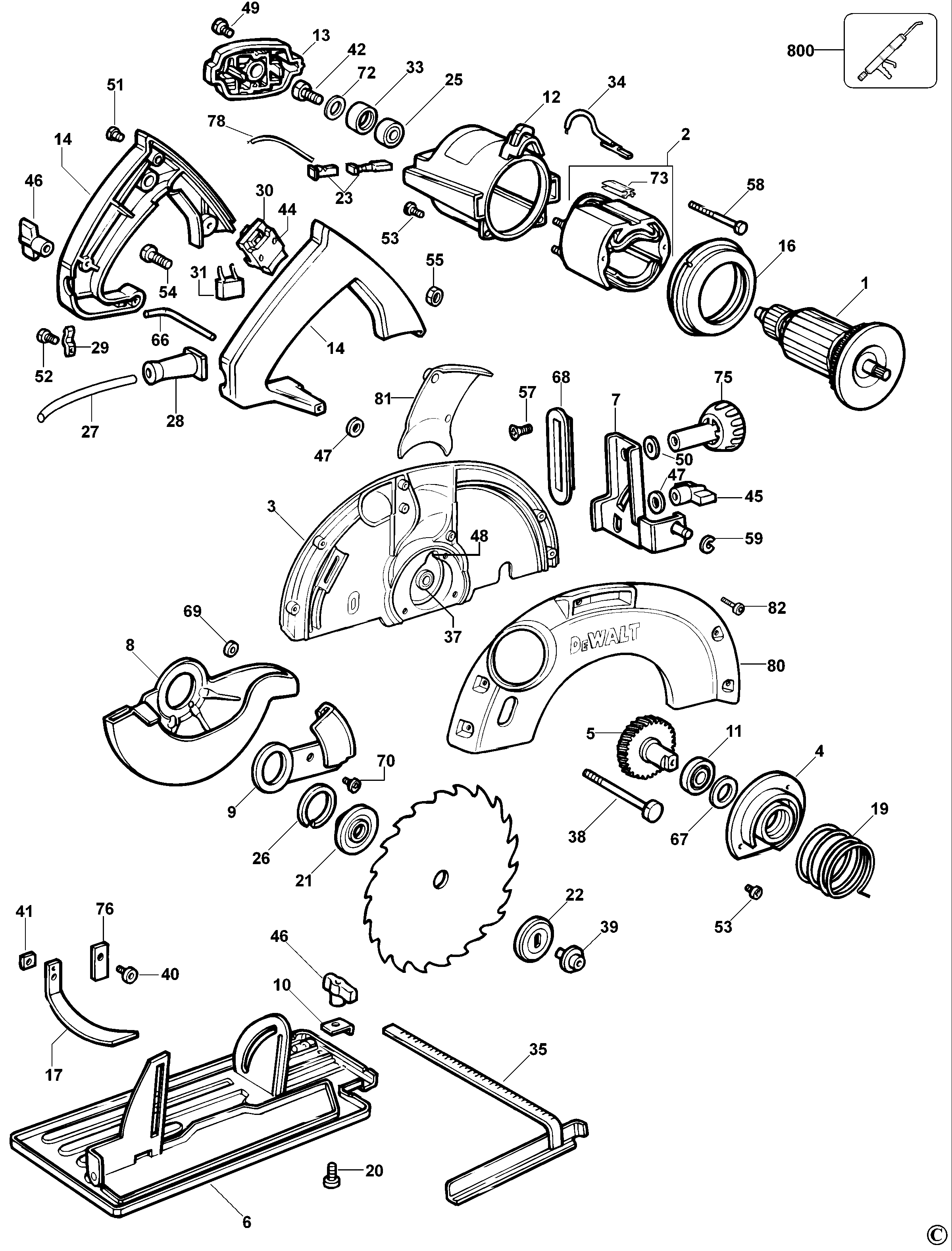

DW62 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 369454-13 | 1 | ARMATURE 230V | GB 240V | GB |  |
|
| 1 | 369454-05 | 1 | ARMATURE 115V | GB 115V | GB | |
|
| 2 | 373007-14 | 1 | FIELD 115V | GB 115V | GB | |
|
| 2 | 373007-13 | 1 | FIELD 230V | GB 240V | GB | |
|
| 3 | 328272-00 | 1 | GUARD SA | GB | |
||
| 4 | 876522 | 1 | COVER GEARCASE | GB | |
||
| 5 | 876542-01 | 1 | GEAR SA | GB | |
||
| 6 | 327423-01 | 1 | SHOE SA | GB | |
||
| 7 | 327424-01 | 1 | ADJUSTER HEIGHT | GB | |
||
| 8 | 327422-01 | 1 | GUARD | GB | |
||
| 9 | 324596-02 | 1 | BRACKET | GB | |
||
| 10 | 328233-01 | 1 | CLAMP | GB | |
||
| 11 | 915358 | 1 | BEARING | GB | |
||
| 12 | 327414-00 | 1 | HOUSING | GB | |
||
| 13 | 327407-00 | 1 | END CAP | GB | |
||
| 14 | 578406-00 | 1 | HANDLE SA | GB | |
||
| 15 | 578406-00 | 1 | HANDLE SA | GB | |
||
| 16 | 916128 | 1 | BAFFLE FAN | GB | |
||
| 17 | 324499-00 | 1 | RIVING KNIFE | GB | |
||
| 19 | 912748-00 | 1 | SPRING | GB | |
||
| 20 | 328296-00 | 1 | SCREW | GB | |
||
| 21 | 325174-00 | 1 | WASHER | GB | |
||
| 22 | 911795 | 1 | FLANGE | GB | |
||
| 23 | 324826-00 | 2 | BRUSH & HOLDER 230V | GB |  |
||
| 25 | 330003-31 | 1 | BEARING | GB | |
||
| 26 | 913784 | 1 | CIRCLIP | GB | |
||
| 27 | 378990 | 1 | CORDSET | GB 115V | GB | |
|
| 27 | 330060-44 | 1 | CORDSET (M/PLUG) | GB 240V | GB | |
|
| 28 | 916968 | 1 | CORD PROTECTOR | GB | |
||
| 29 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 30 | 911724-00 | 1 | SWITCH | GB 240V | GB | |
|
| 30 | 581436-00 | 1 | SWITCH | GB 115V | GB | |
|
| 31 | 321384 | 1 | CAPACITOR | GB | |
||
| 33 | 870052 | 1 | SLEEVE | GB | |
||
| 34 | 580235-00 | 2 | LEADWIRE | GB | |
||
| 35 | 327426-00 | 1 | FENCE | GB | |
||
| 37 | 910560 | 1 | BEARING | GB | |
||
| 38 | 911335 | 1 | SCREW | GB | |
||
| 39 | 328295-00 | 1 | SCREW | GB | |
||
| 40 | 725181 | 1 | SCREW | GB | |
||
| 41 | 742289 | 1 | NUT | GB | |
||
| 42 | 911276 | 1 | SCREW | GB | |
||
| 44 | 911026 | 4 | SCREW | GB 240V | GB | |
|
| 45 | 911102 | 1 | NUT WING | GB | |
||
| 46 | 915848 | 2 | NUT WING | GB | |
||
| 47 | 913721 | 1 | WASHER | GB | |
||
| 48 | 330004-31 | 1 | BEARING | GB | |
||
| 49 | 894748 | 2 | O RING | GB | |
||
| 50 | 744937-00 | 2 | WASHER | GB | |
||
| 51 | 911060 | 3 | SCREW | GB | |
||
| 52 | 911059 | 2 | SCREW | GB | |
||
| 53 | 725198 | 5 | SCREW | GB | |
||
| 54 | 911233 | 1 | SCREW | GB | |
||
| 55 | 911092 | 1 | NUT | GB | |
||
| 57 | 860301-00 | 1 | SCREW | GB | |
||
| 58 | 916231 | 2 | SCREW | GB | |
||
| 59 | 911273 | 1 | CLIP | GB | |
||
| 66 | 098000-11 | 1 | HEX KEY | GB | |
||
| 67 | 910623 | 1 | WASHER | GB | |
||
| 68 | 917101 | 1 | INSERT | GB | |
||
| 69 | 911644 | 1 | STOP RUBBER | GB | |
||
| 70 | 911141 | 1 | SCREW | GB | |
||
| 72 | 870405 | 1 | WASHER | GB | |
||
| 73 | 916193-01 | 1 | SLEEVE | GB | |
||
| 75 | 379019 | 1 | KNOB | GB | |
||
| 76 | 324483-00 | 1 | PLATE | GB | |
||
| 78 | 323779-00 | 2 | LEAD SA | GB 115V | GB | |
|
| 78 | 323768-09 | 2 | LEAD SA | GB 240V | GB | |
|
| 80 | 379588-00 | 1 | GUARD COVER | GB | |
||
| 81 | 327408-00 | 1 | INSERT | GB | |
||
| 82 | 324006-00 | 6 | SCREW | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
