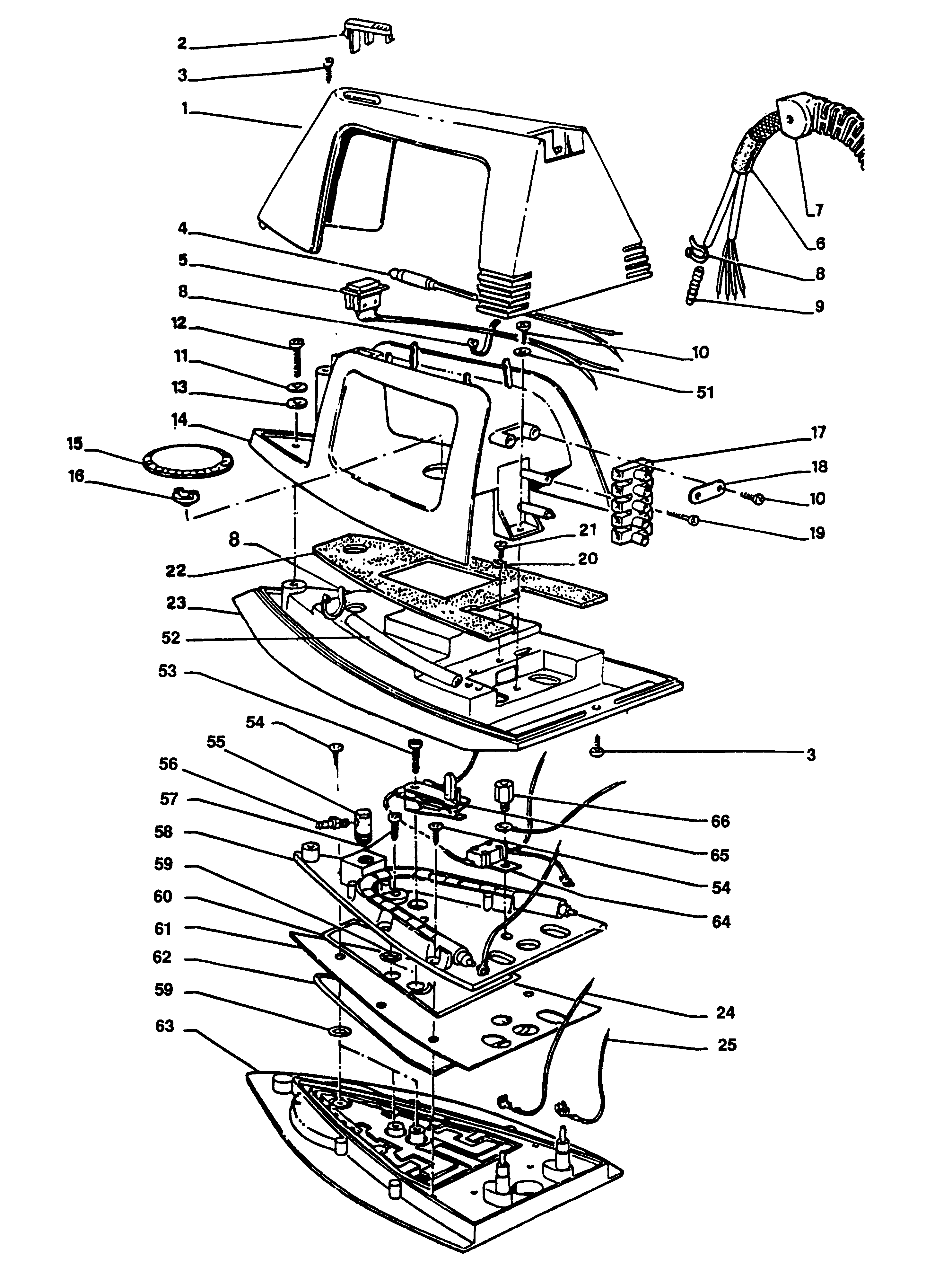

SR150-----B IRON Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 278000-00 | 1 | COVER | XJ |  |
||
| 2 | 278001-00 | 1 | COVER | XJ | |
||
| 3 | 278002-00 | 2 | SCREW | XJ | |
||
| 4 | 278003-00 | 1 | LAMP & LEADS SA | XJ | |
||
| 5 | 278004-00 | 1 | SWITCH & LEAD SA | XJ | |
||
| 6 | 278005-00 | 1 | CORDSET | XJ | |
||
| 7 | 278006-00 | 1 | PROTECTOR | XJ | |
||
| 8 | 278007-00 | 1 | TIE | XJ | |
||
| 9 | 278008-00 | 1 | CONNECTOR | XJ | |
||
| 10 | 278009-00 | 2 | SCREW | XJ | |
||
| 11 | 278010-00 | 1 | WASHER | XJ | |
||
| 12 | 278011-00 | 1 | SCREW | XJ | |
||
| 13 | 278012-00 | 1 | WASHER | XJ | |
||
| 14 | 278013-00 | 1 | COVER | XJ | |
||
| 15 | 278014-00 | 1 | SCALE | XJ | |
||
| 16 | 278015-00 | 1 | CONNECTOR | XJ | |
||
| 17 | 278016-00 | 1 | CONNECTOR | XJ | |
||
| 18 | 278017-00 | 1 | CABLE CLAMP | XJ | |
||
| 19 | 278018-00 | 1 | SCREW | XJ | |
||
| 20 | 278019-00 | 1 | WASHER 5 MM | XJ | |
||
| 21 | 278020-00 | 2 | SCREW | XJ | |
||
| 22 | 278021-00 | 1 | INSULATOR | XJ | |
||
| 23 | 278983-00 | 1 | COVER | XJ | |
||
| 24 | 278023-00 | 1 | LEAD BROWN | XJ | |
||
| 25 | 278024-00 | 1 | LEAD BLUE | XJ | |
||
| 51 | 278752-00 | 1 | WASHER | XJ | |
||
| 52 | 279019-00 | 1 | TUBE | XJ | |
||
| 53 | 278966-00 | 1 | SCREW.TEMP | XJ | |
||
| 54 | 278960-00 | 2 | SCREW.TEMP | XJ | |
||
| 55 | 279023-00 | 1 | UNION | XJ | |
||
| 56 | 279020-00 | 1 | NIPPLE | XJ | |
||
| 57 | 279021-00 | 1 | SCREW.TEMP | XJ | |
||
| 58 | 279022-00 | 1 | ELEMENT & BASE SA | XJ | |
||
| 59 | 278954-00 | 2 | SEAL | XJ | |
||
| 60 | 279673-00 | 1 | GASKET | XJ | |
||
| 61 | 279024-00 | 1 | INTERPLATE | XJ | |
||
| 62 | 279025-00 | 1 | GASKET | XJ | |
||
| 63 | 279026-00 | 1 | SOLE PLATE | XJ | |
||
| 64 | 279027-00 | 1 | FUSE | XJ | |
||
| 65 | 278970-00 | 1 | THERMOSTAT | XJ | |
||
| 66 | 278959-00 | 1 | STAND-OFF | XJ | |
