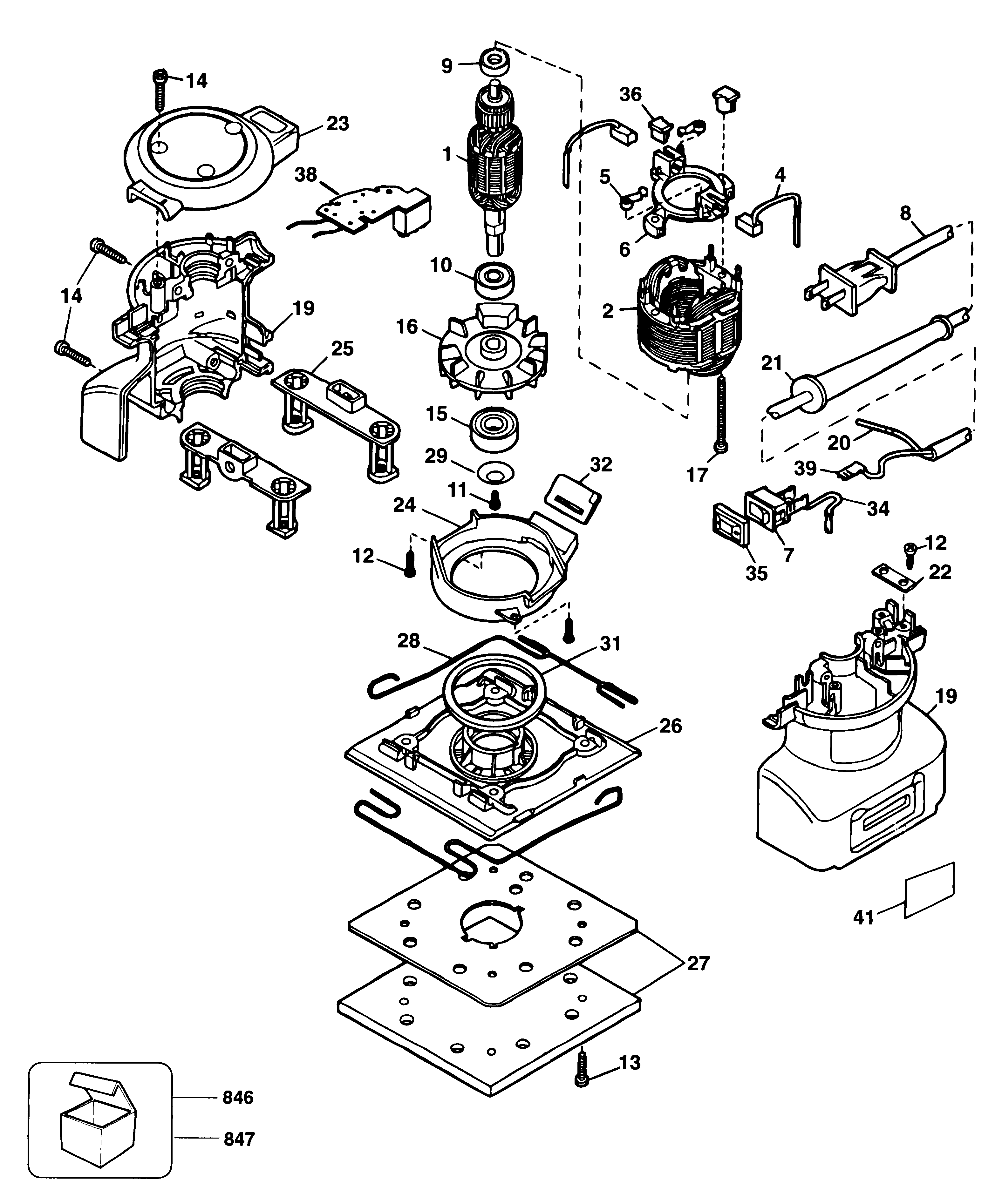

DW411 SANDER Type 1 - 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-00 | 1 | ARMATURE 115V | XW |  |
||
| 2 | 807254-08 | 1 | FIELD 115V | XW | |
||
| 4 | 445861-34 | 2 | BRUSH 120V | BK93 | XW | |
|
| 5 | 445860-00 | 2 | BRUSH SPRING | XW |  |
||
| 6 | 449899-05 | 1 | RING | XW | |
||
| 7 | 656494-00 | 1 | SWITCH | XW | |
||
| 7 | 656494-00 | 1 | SWITCH | XW | |
||
| 8 | 330061-11 | 1 | CORDSET | XW | |
||
| 9 | 605040-05 | 1 | BEARING | XW | |
||
| 10 | 330003-17 | 1 | BEARING | XW | |
||
| 11 | 098012-11 | 1 | SCREW | XW | |
||
| 12 | 330019-02 | 2 | SCREW | XW | |
||
| 13 | 464285-00 | 4 | SCREW | XW | |
||
| 14 | 330019-13 | 7 | SCREW | M4X19 T20 | XW | |
|
| 15 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XW | |
|
| 16 | 464281-00 | 1 | FAN | XW | |
||
| 17 | 330019-08 | 2 | SCREW | XW | |
||
| 19 | 464279-11 | 1 | CLAMSHELL PAIR | XW | |
||
| 20 | 825209-00 | 1 | CONNECTOR | XW | |
||
| 21 | N542553 | 1 | CORD PROTECTOR | XW | |||
| 21 | N542553 | 1 | CORD PROTECTOR | XW | |||
| 22 | 380414-00 | 1 | CORD CLAMP | XW | |
||
| 23 | 151670-13 | 1 | CAP | XW | |
||
| 24 | 144964-00 | 1 | COVER | XW | |
||
| 25 | N542568 | 2 | FOOT | XW | |
||
| 25 | N542568 | 2 | FOOT | XW | |
||
| 26 | N073798 | 1 | BASE | 1/4 SHEET | XW | |
|
| 27 | 151284-00SV | 1 | PAD | XW | |
||
| 28 | 151288-00 | 2 | CLAMP | XW | |
||
| 29 | 151652-00 | 1 | WASHER | XW | |
||
| 31 | N100227 | 1 | SEAL | XW | |
||
| 32 | 144975-01 | 1 | DOOR | XW | |
||
| 34 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | XW | ||
| 35 | 144983-07 | 1 | COVER | XW | |
||
| 36 | 144956-00 | 2 | NUT | XW | |
||
| 38 | 145283-03 | 1 | PCB | Tyco | XW | |
|
| 39 | 445964-00 | 2 | TERMINAL | XW | |
||
| 846 | 144954-00 | 1 | PUNCH | XW | |
||
| 847 | 608358-00 | 1 | DUSTBAG | XW | |
