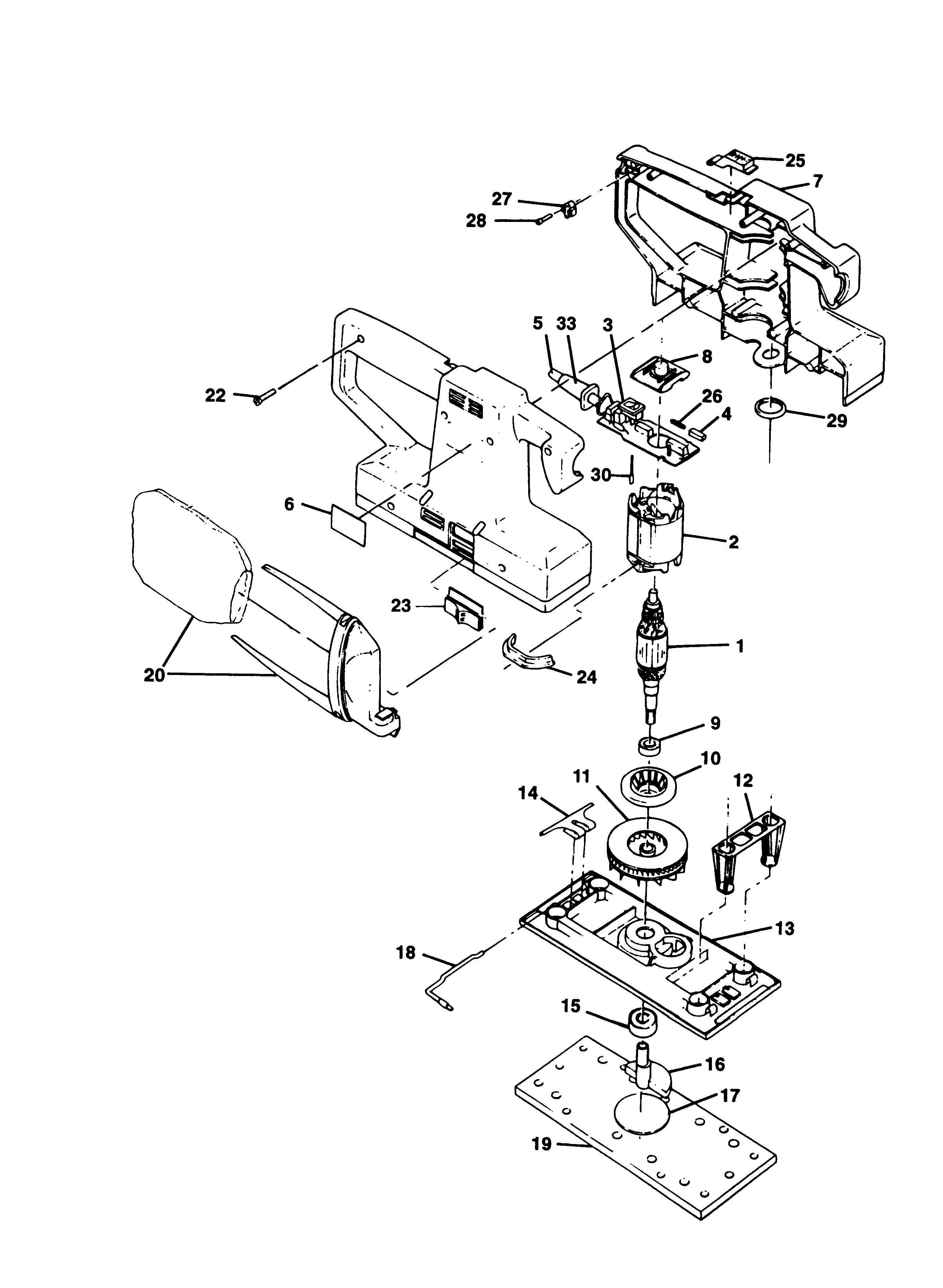

DN273 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248170-00 | 1 | HANDLE HALF | GB |  |
||
| 2 | 811656-49 | 1 | FIELD 240V | GB | |
||
| 2 | 568359-00 | 1 | AXLE | GB | |
||
| 3 | 578462-00 | 1 | PCB | GB | |
||
| 3 | 027351200 | 1 | SPANNER | GB | |
||
| 4 | 736703 | 2 | BRUSH | GB |  |
||
| 4 | 329866-02 | 1 | RATING PLATE | GB | |
||
| 5 | 330060-00 | 1 | CORDSET (M/PLUG) | GB | |
||
| 5 | 4688558 | 1 | CABLE PER METRE | GB | |
||
| 5 | GHM62 | 1 | HOUSING | GB | |||
| 6 | 177162701 | 1 | CABLE CLAMP | GB | |
||
| 7 | 374129-01 | 1 | CLAMSHELL | GB | |
||
| 7 | 6010028-10 | 1 | FRAME | GB | |
||
| 8 | 372946-49 | 1 | BEARING SA | GB | |
||
| 9 | 330003-19 | 1 | BEARING | GB | |
||
| 9 | 330060-44 | 1 | CORDSET (M/PLUG) | CHUCK S2A | GB | |
|
| 10 | 735653 | 1 | CAGE | GB | |
||
| 11 | 736246 | 1 | FAN | GB | |
||
| 11 | 477681-00 | 1 | SPRING | GB | |
||
| 12 | 733668 | 1 | STUD | GB | |
||
| 12 | 1006575-00 | 1 | COVER-TOP | GB | |
||
| 14 | 748364 | 2 | GRIP | GB | |
||
| 14 | 325028-00 | 1 | CASTING SA | GB | |
||
| 15 | 730453 | 1 | BEARING | GB | |
||
| 16 | 370539 | 1 | ECCENTRIC | GB | |
||
| 16 | 833876 | 11 | ELEMENT | GB | |||
| 17 | 733563 | 1 | PAD | GB | |
||
| 18 | 745700 | 2 | LEVER | GB | |
||
| 19 | 736516 | 1 | RUBBER PAD | GB | |
||
| 19 | 793003-49 | 1 | BLADE & GEAR SA | GB | |||
| 20 | 831865 | 1 | BAG SA | GB | |
||
| 20 | 494040-01 | 1 | BRUSH PAIR 115V | CHUCK S2A | GB | |
|
| 22 | 849256 | 8 | SCREW | GB | |
||
| 22 | 248831-00 | 1 | FRAME SA | GB | |
||
| 23 | 733669 | 1 | COVER | GB | |
||
| 23 | 559868-00 | 1 | MOTOR SA | GB | |
||
| 24 | 823726 | 4 | INSULATOR | GB | |
||
| 24 | 6010029-19 | 1 | CABLE | INTERNAL | GB | ||
| 25 | 578252-00 | 1 | ACTUATOR | GB | |
||
| 25 | 809030-01 | 1 | CHARGER SA | GB | |
||
| 26 | 830501 | 2 | SPRING | GB | |
||
| 26 | 860077-01 | 2 | WASHER | GB | |
||
| 27 | 994808 | 1 | CABLE CLAMP | GB | |
||
| 27 | 935840 | 2 | GEAR SA | GB | |
||
| 28 | 849256 | 2 | SCREW | GB | |
||
| 28 | 279805-00 | 2 | SPINDLE | GB | |
||
| 29 | 736504 | 1 | RING | GB | |
||
| 29 | 249026-00 | 1 | COVER BRUSH | GB | |
||
| 30 | 823723 | 4 | CONNECTOR | GB | |
||
| 33 | 770235 | 1 | PROTECTOR | GB | |
||
| 34 | 826568 | 1 | BRAND LABEL | BD273 | GB | |
