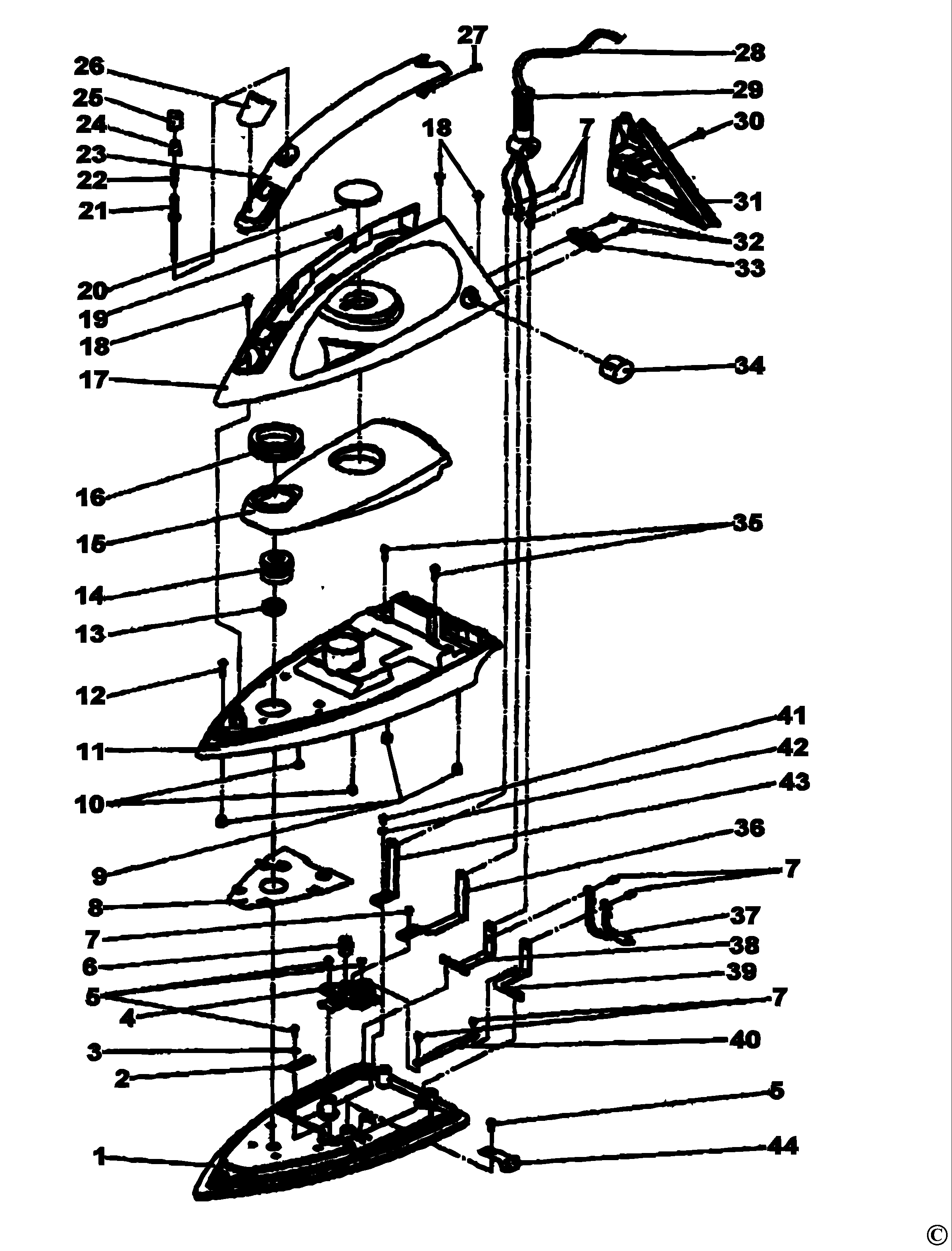

X600 STEAM IRON Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010100-01 | 1 | SOLE PLATE | 230V | XJ | ||
| 1 | 6010100-03 | 1 | SOLE PLATE | 115V | XJ | ||
| 2 | 6010100-02 | 1 | PLATE | BIMETAL SA | XJ | ||
| 3 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 4 | 6010100-04 | 1 | THERMOSTAT | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 6010022-07 | 1 | STOP | THERMOSTAT STOPPER | XJ | ||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 6010089-14 | 1 | SLEEVE | CERAMIC | XJ | ||
| 10 | 6010100-09 | 1 | SLEEVE | XJ | |||
| 11 | 6010100-11 | 1 | BASE PLATE | XJ | |||
| 12 | 6010100-12 | 1 | SCREW | XJ | |||
| 13 | 6010100-13 | 1 | GASKET | COPPER | XJ | ||
| 14 | 6010100-08 | 1 | TUBE SILICONE | XJ | |||
| 15 | 6010100-15 | 1 | TANK | WATER | XJ | ||
| 16 | 6010100-16 | 1 | SEAL | WATER TANK | XJ | ||
| 17 | 6010100-17 | 1 | HANDLE | XJ | |||
| 18 | 6010100-18 | 1 | SCREW | XJ | |||
| 19 | 6010100-19 | 1 | SPRING | XJ | |||
| 20 | 6010100-20 | 1 | KNOB | XJ | |||
| 21 | 6010100-06 | 1 | BAR | COPPER BAR SA | XJ | ||
| 22 | 6010100-22 | 1 | SPRING | XJ | |||
| 23 | 6010100-23 | 1 | HANDLE COVER | XJ | |||
| 24 | 6010100-24 | 1 | GASKET | STEAM BUTTON | XJ | ||
| 25 | 6010100-25 | 1 | BUTTON | XJ | |||
| 26 | 6010100-26 | 1 | LID | WATER TANK | XJ | ||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 6010100-42 | 1 | CORDSET | 115V | XJ | ||
| 28 | 6010100-28 | 1 | CORDSET | 230V | XJ | ||
| 29 | 6010100-29 | 1 | CORD PROTECTOR | XJ | |||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 31 | 6010100-31 | 1 | COVER REAR | XJ | |||
| 32 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 33 | 6010100-33 | 1 | CORD CLAMP | XJ | |||
| 34 | 6010100-34 | 1 | COVER | LIGHT | XJ | ||
| 35 | 6010100-35 | 1 | SCREW | XJ | |||
| 36 | 6010100-36 | 1 | CONNECTOR | XJ | |||
| 37 | 6010100-37 | 1 | PILOT | LIGHT | XJ | ||
| 38 | 6010100-38 | 1 | CONNECTOR | XJ | |||
| 39 | 6010100-39 | 1 | CONNECTOR | FUSE | XJ | ||
| 40 | 6010100-41 | 1 | FUSE SA | 115V | XJ | ||
| 40 | 6010100-40 | 1 | FUSE SA | 230V | XJ | ||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
