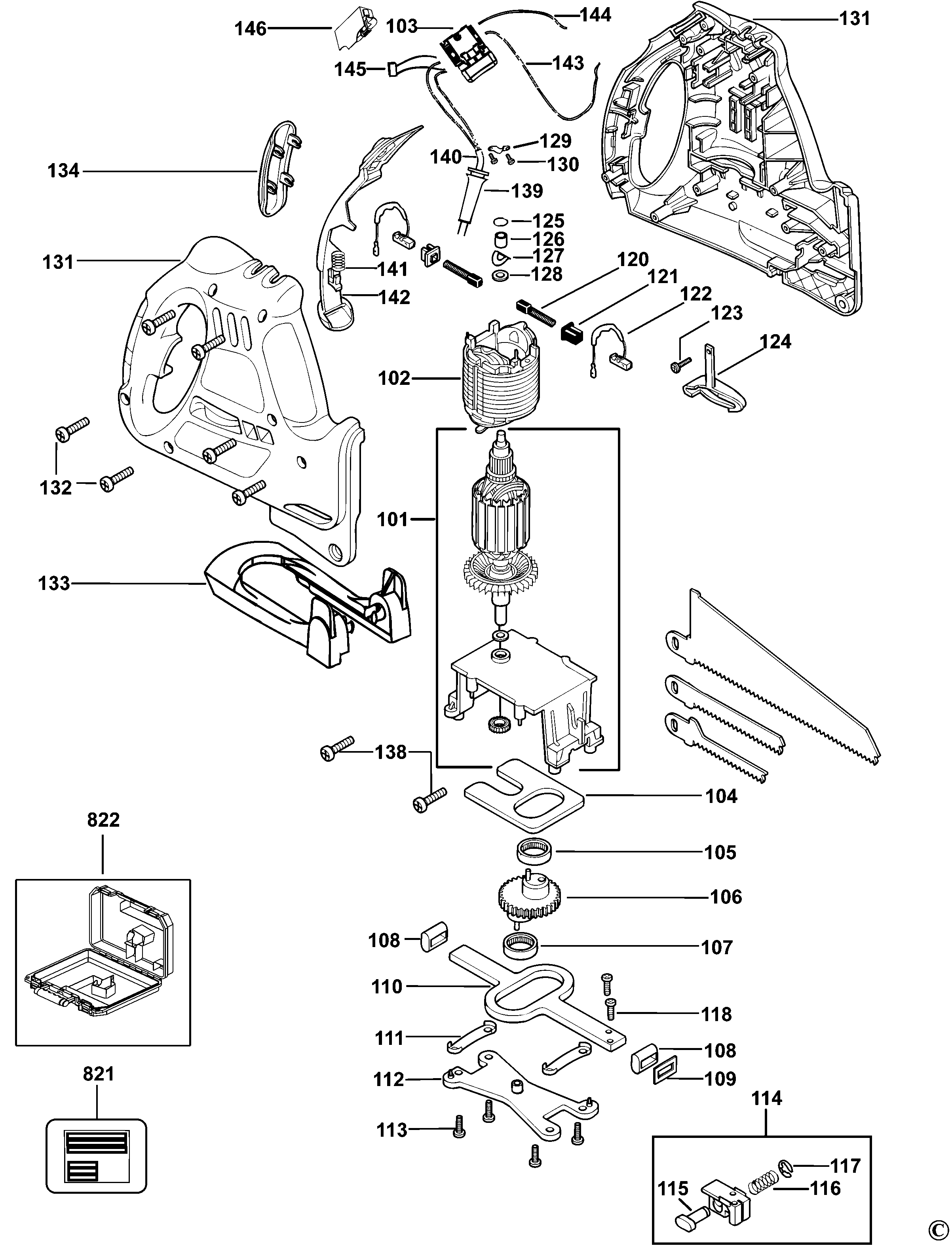

KS890E SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376446-02 | 1 | ARMATURE SA | GB |  |
||
| 101 | 374218-01 | 1 | ACTUATOR | GB | |
||
| 102 | 576374-34 | 1 | FIELD 230V | GB |  |
||
| 103 | 580000-02 | 1 | SWITCH SA | GB | |||
| 104 | 377372 | 1 | BALANCE WEIGHT | GB | |
||
| 104 | 911532 | 1 | WASHER | GB | |
||
| 105 | 377454 | 1 | BEARING | GB | |
||
| 106 | 376450-02 | 1 | GEAR SA | GB | |
||
| 107 | 377454 | 1 | BEARING | GB | |
||
| 107 | 330003-56 | 2 | BEARING | GB | |
||
| 108 | 795680 | 2 | BEARING | GB | |
||
| 108 | 325918-38 | 1 | CLAMSHELL PAIR | GB | |
||
| 109 | 795694 | 1 | SEAL | GB | |
||
| 110 | 376449-00 | 1 | SHAFT SA | 109+110+114+118 | GB | |
|
| 110 | 6010029-19 | 1 | CABLE | INTERNAL | GB | ||
| 111 | 795647 | 2 | CLAMP | GB | |
||
| 111 | 6010069-60 | 1 | SOLE PLATE SA | 230v (non stick) | NEW LEVEL CLAMSHELL | GB | |
| 112 | 377389 | 1 | GEARCASE COVER | GB | |
||
| 112 | 569389-00 | 1 | BRAKE | GB | |||
| 113 | 575946-00 | 4 | SCREW | GB | |
||
| 114 | 377375-00 | 1 | CLAMP SA | GB | |
||
| 114 | 586835-01 | 1 | WARNING LABEL | GB | |
||
| 115 | 571265-00 | 1 | LOCK PIN | GB | |
||
| 116 | 368671 | 1 | SPRING | GB | |
||
| 117 | 571181-00 | 1 | CLIP | GB | |
||
| 117 | 326276-03 | 1 | GUIDE BUSH | GB | |
||
| 118 | 577359-00 | 2 | SCREW | GB | |
||
| 118 | 326265-01 | 1 | SCALE | GB | |
||
| 119 | 326268-00 | 1 | BELLOWS | GB | |
||
| 120 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | GB | |
|
| 120 | 326237-00 | 1 | BRACKET | GB | |
||
| 121 | 875735 | 2 | INSERT | GB | |
||
| 122 | 914115 | 2 | BRUSH HOLDER | GB | |||
| 123 | 821057 | 1 | SCREW | No 6 x 12.7mm | GB | |
|
| 123 | 569427-00 | 1 | BEARING | 606 | GB | ||
| 124 | 571182-00 | 1 | LOCK BUTTON | Jade Green | GB | |
|
| 124 | 571182-01 | 1 | LOCK BUTTON | GB | |
||
| 124 | 577537-00 | 1 | GRASSBOX RIGHT | GB | |
||
| 125 | 583894-00 | 1 | O RING | GB | |
||
| 126 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 127 | 373296-00 | 1 | WASHER BOW | GB | |
||
| 127 | 569460-00 | 1 | SCREW | ST4.2 X 16 | GB | |
|
| 128 | 373295-01 | 1 | WASHER FIBRE | GB | |
||
| 128 | 326203-01 | 1 | BODY | GB | |||
| 129 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 129 | 882300 | 1 | PLATE | GB | |||
| 130 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 130 | 150870-09 | 1 | BATTERY PACK | GB | |
||
| 131 | 580063-02N | 1 | CLAMSHELL SET | ORANGE | GB | |
|
| 131 | 580063-00 | 1 | CLAMSHELL SET | Jade Green | GB | |
|
| 131 | 326215-49 | 1 | REPAIR KIT | GB | |||
| 132 | 375669 | 6 | SCREW | GB | |
||
| 133 | 90594113 | 1 | SHOE | GB | |
||
| 133 | 373705-02 | 1 | END CAP SA | GB | |
||
| 134 | 377452 | 1 | HANDLE | Jade Green | GB | |
|
| 134 | 377452-01 | 1 | HANDLE | GB | |
||
| 134 | 569420-00 | 1 | BALL STEEL 4MM | DIA 4 | GB | ||
| 135 | 326238-00 | 2 | FENCE | GB | |
||
| 137 | 326276-05 | 1 | GUIDE BUSH | GB | |
||
| 138 | 747329 | 2 | SCREW | GB | |
||
| 138 | 1004771-15 | 1 | WIRE | GB | |
||
| 139 | 770235 | 1 | PROTECTOR | GB | |
||
| 139 | N041971 | 1 | RATING PLATE | GB | |
||
| 140 | 330060-53 | 1 | CORDSET | GB | |
||
| 141 | 575706-00 | 1 | SPRING | GB | |
||
| 142 | 577775-00 | 1 | SWITCH LOCK OFF | Jade Green | GB | |
|
| 142 | 577775-01 | 1 | SWITCH LOCK OFF | GB | |
||
| 142 | 1003297-00 | 1 | SWITCH | GB | |||
| 143 | 580090-00 | 1 | LEADWIRE | GB | |
||
| 143 | 325935-00 | 1 | GASKET | GB | |
||
| 144 | 580091-00 | 1 | LEADWIRE | GB | |
||
| 144 | 325990-00 | 2 | SEAL | GB | |
||
| 145 | 807285-06 | 1 | CAPACITOR | GB | |
||
| 145 | 326098-03 | 1 | CYLINDER | GB | |
||
| 146 | 324986-00 | 1 | SPINDLE LOCK | GB | |||
| 147 | 569363-00 | 1 | PAD | NEW LEVEL CAP | GB | |
|
| 148 | 569365-00 | 1 | HANDLE RH | NEW LEVEL TANK | GB | |
|
| 149 | 833876 | 15 | ELEMENT | GB | |||
| 150 | 326098-02 | 1 | CYLINDER | GB | |
||
| 151 | 326087-00 | 1 | SWITCH | GB | |
||
| 152 | 326125-00 | 1 | CASTING SA | Silver | GB | |
|
| 153 | 1004440-15 | 1 | RAM | GB | |||
| 154 | 570593-00 | 1 | SUPPORT | GB | |
||
| 155 | 326589-06 | 2 | SCALE | GB | |
||
| 156 | 6010076-40 | 2 | FUSE | THERMAL FUSE 230V | GB | ||
| 157 | 570849-00 | 1 | LEAD | GB | |
||
| 158 | 025121501 | 1 | BRUSH | GB | |
||
| 161 | 144976-01 | 1 | BAG DUST | GB | |||
| 162 | 648980-00 | 1 | WARNING LABEL | 310 ml | GB | |
|
| 163 | 487066-00 | 1 | BRAND LABEL | GB | |
||
| 164 | 569281-00 | 1 | BOARD | GB | |
||
| 165 | 569281-00 | 1 | BOARD | GB | |
||
| 167 | 568350-00 | 1 | GEARCASE SA | GB | |
||
| 200 | N093607 | 1 | SCREW | M5x75 | GB | |
|
| 846 | 6010064-02 | 1 | COVER | LOWER COVER | GB |
