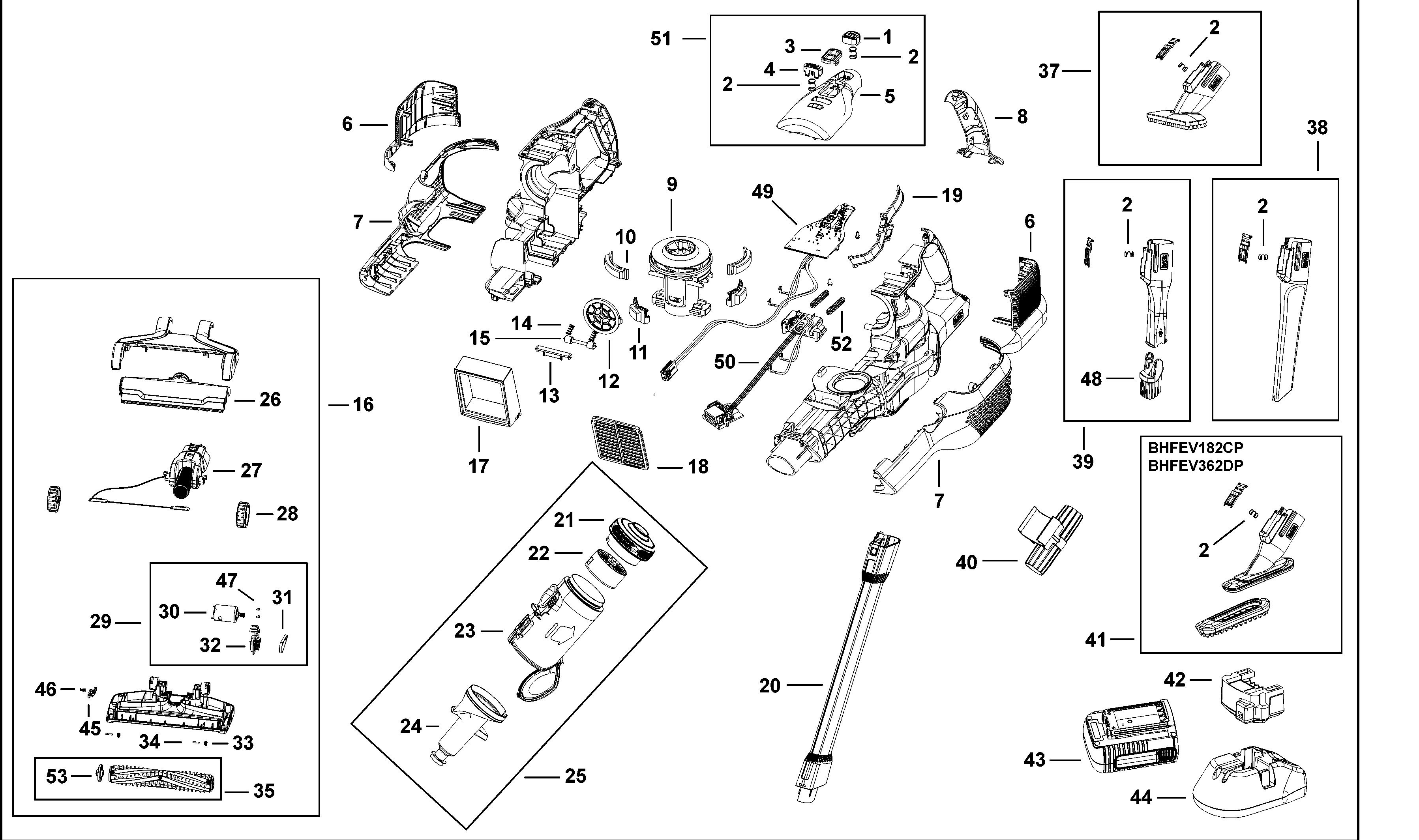

BHFEV36B2D STICK-VAC Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N636423 | 1 | BUTTON | GB |  |
||
| 2 | 90627526 | 4 | SPRING | GB | |
||
| 3 | N636424 | 1 | SLIDER | GB | |
||
| 4 | N636425 | 1 | BUTTON | GB | |
||
| 5 | N619154 | 1 | COVER | GB | |
||
| 6 | N722853 | 1 | COVER | BHFEV36B2D | GB | |
|
| 7 | N691272 | 1 | COVER | BHFEV36B2D | GB | |
|
| 8 | N652586 | 1 | HANDLE COVER | BHFEV36B2D | GB | |
|
| 9 | N766097 | 1 | MOTOR | 36V | BHFEV36B2D | GB | |
| 10 | N661053 | 2 | SUPPORT | GB | |
||
| 11 | N653723 | 2 | SUPPORT | GB | |
||
| 12 | N632578 | 1 | GUARD | GB | |
||
| 13 | N681439 | 1 | COVER | GB | |
||
| 14 | N601518 | 2 | SPRING | GB | |
||
| 15 | N655507 | 1 | SHAFT | GB | |
||
| 16 | N924902 | 1 | FOOT SA | GB | |
||
| 16 | N765679 | 1 | FOOT SA | BHFEV36B2D | GB | ||
| 17 | N620175 | 1 | FRAME | GB | |
||
| 18 | N663973 | 1 | GRILL | GB | |
||
| 19 | N645043 | 1 | CLIP CABLE | GB | |
||
| 20 | N687804 | 1 | TUBE SA | BHFEV36B2D | GB | |
|
| 21 | N765293 | 1 | CLEANING PAD | GB | |||
| 21 | N925234 | 1 | CLEANING PAD | GB | |
||
| 22 | N665227 | 1 | FILTER | GB | |
||
| 23 | N765300 | 1 | BOWL | BHFEV36B2D | GB | ||
| 24 | N765299 | 1 | PRE-FILTER | BHFEV36B2D | GB | ||
| 25 | N765320 | 1 | FILTER SA | BHFEV36B2D | GB | ||
| 26 | N783828 | 1 | COVER | GB | |
||
| 27 | N765673 | 1 | HOSE | LOWER | BHFEV36B2D | GB | |
| 28 | N639443 | 2 | WHEEL | GB |  |
||
| 29 | N765664 | 1 | MOTOR SA | BHFEV36B2D | GB | ||
| 30 | N687513 | 1 | MOTOR & PINION | BHFEV36B2D | GB | ||
| 31 | N609679 | 1 | BELT | GB | |
||
| 32 | N765667 | 1 | SUPPORT BRACKET | GB | |||
| 32 | N924577 | 1 | SUPPORT BRACKET | GB | |
||
| 33 | N675938 | 2 | WHEEL | GB | |
||
| 34 | 90608269 | 2 | DOWEL | GB | |
||
| 35 | N764706 | 1 | ROLLER | BHFEV36B2D | GB | ||
| 37 | N764712 | 1 | BRUSH | DUST | GB | |
|
| 38 | N764710 | 1 | TOOL CREVICE | GB | |
||
| 39 | N764709 | 1 | BRUSH | GB | |
||
| 40 | N741930 | 1 | HOLDER | GB | |
||
| 42 | 90616337-02 | 1 | CHARGER 36V | UA CHARGER 36V | BHFEV36B2D | GB | |
| 43 | N688781 | 1 | BATTERY 36V - 2.5AH | BHFEV36B2D | GB | ||
| 44 | N687558 | 1 | MOUNTING BRACKET | GB | |||
| 45 | N573719 | 1 | RELEASE | GB | |
||
| 46 | N676836 | 1 | SPRING | GB | |
||
| 47 | 311940-01 | 2 | SCREW | GB | |
||
| 48 | N757182 | 1 | BRUSH | GB | |
||
| 49 | N765675 | 1 | PCB SA | BHFEV36B2D | GB | ||
| 49 | N924714 | 1 | PCB SA | GB | |
||
| 50 | N657564 | 1 | CONNECTOR | BATTERY | BHFEV36B2D | GB | |
| 51 | N795792 | 1 | COVER SA | GB | |
||
| 52 | 5100035-03 | 2 | SPRING | GB | |
||
| 53 | N569821 | 1 | END CAP | GB | |
