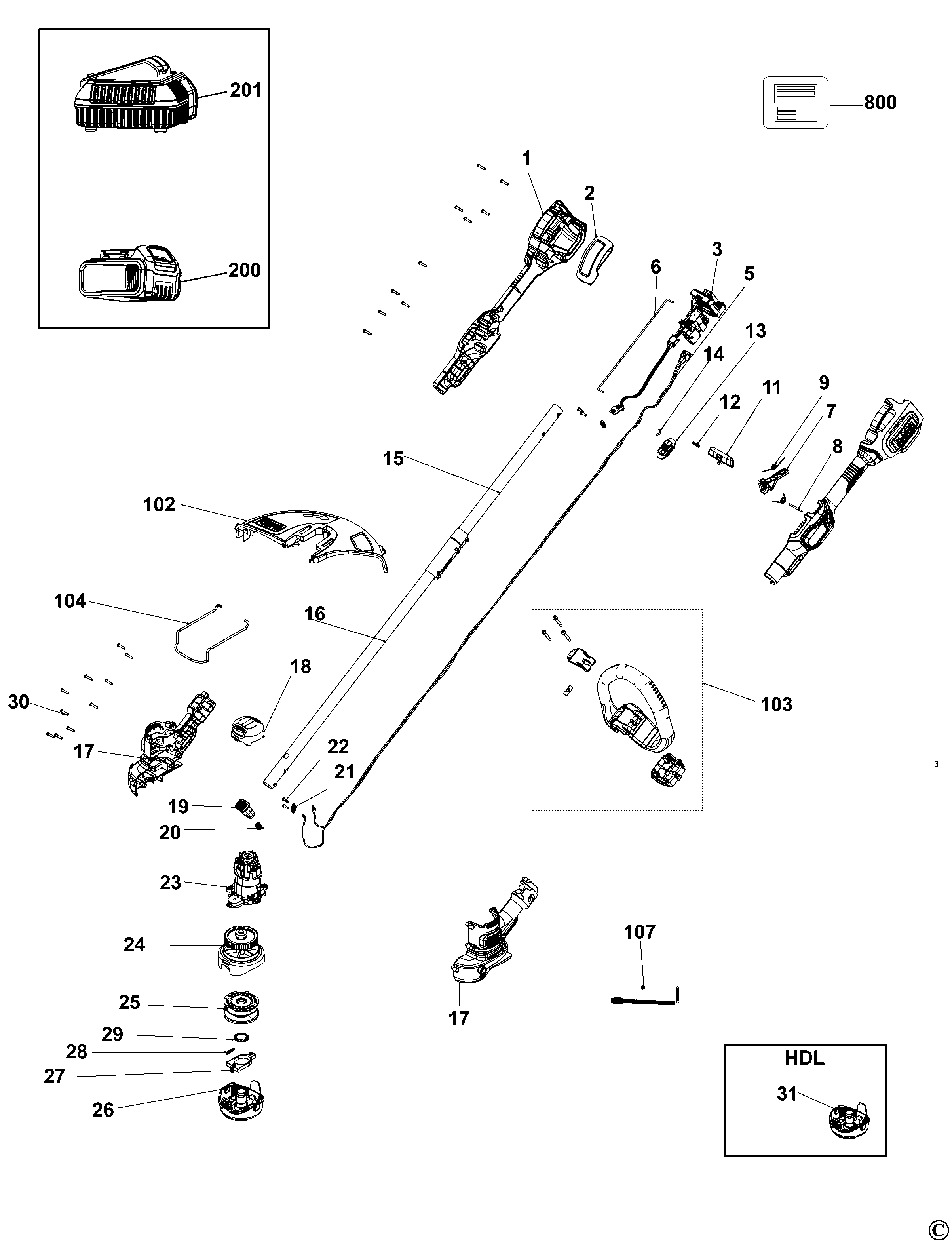

STC5433PC STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90628939 | 1 | HOUSING PAIR | GB |  |
||
| 2 | 90630730 | 1 | PAD | GB |  |
||
| 3 | N506406 | 1 | MODULE | GB | |
||
| 5 | N509333 | 1 | HARNESS | GB | |
||
| 6 | 90630062 | 1 | LINKAGE SA | GB | |
||
| 7 | 90628945 | 1 | TRIGGER | GB | |
||
| 8 | 90608942 | 1 | PIN | GB | |
||
| 9 | 90602634 | 2 | SPRING | GB | |
||
| 10 | 90629916 | 1 | BUTTON | GB | |
||
| 11 | 90628946 | 1 | CLIP | GB | |
||
| 12 | 90559867 | 1 | SPRING COMPRESSION | GB | |
||
| 13 | 90629917 | 1 | BUTTON | GB | |
||
| 14 | 90636699 | 1 | SPRING | GB | |
||
| 15 | 90634871 | 1 | POLE PIECE SA | GB | |
||
| 16 | 90634872 | 1 | POLE PIECE SA | GB | |
||
| 17 | 90628942 | 1 | HOUSING SA | GB | |
||
| 18 | 90632216 | 1 | END CAP | GB | |
||
| 19 | 90611181 | 1 | BUTTON | GB | |
||
| 20 | 90550451 | 1 | SPRING | GB | |
||
| 21 | 329301-00 | 2 | CORD CLAMP | GB | |
||
| 22 | 330019-02 | 1 | SCREW | GB | |
||
| 23 | N510399 | 1 | MOTOR SA | GB | |
||
| 24 | N508630 | 1 | GEAR & SPINDLE SA | GB | |
||
| 25 | 90635923 | 1 | SPOOL & LINE | GB | |
||
| 26 | 90635919 | 1 | COVER SA | GB | |
||
| 27 | 90635831 | 1 | LEVER SA | GB | |
||
| 28 | 90630900 | 1 | SPRING | GB | |
||
| 29 | 90635931 | 1 | RETAINER | GB | |
||
| 30 | 90611830 | 20 | SCREW | GB | |
||
| 31 | 90588530 | 1 | CAP | GB | |
||
| 102 | 90627167 | 1 | GUARD 13" | GB | |
||
| 103 | 90628949 | 1 | HANDLE SA | GB | |
||
| 104 | 90638559 | 1 | GUIDE | GB | |
||
| 107 | N504423 | 1 | STRAP | GB | |
||
| 200 | N694216 | 1 | BATTERY 54V - 1.5AH - 83WH | STC5433PC | GB | |
|
| 200 | N694216 | 1 | BATTERY 54V - 1.5AH - 83WH | STC5433PC | GB | |
|
| 201 | 90642264 | 1 | CHARGER | 2A - BDC2A-GB | STC5433PC | GB | |
| 800 | 90636235 | 1 | RATING LABEL | STC5433PC | GB | |
