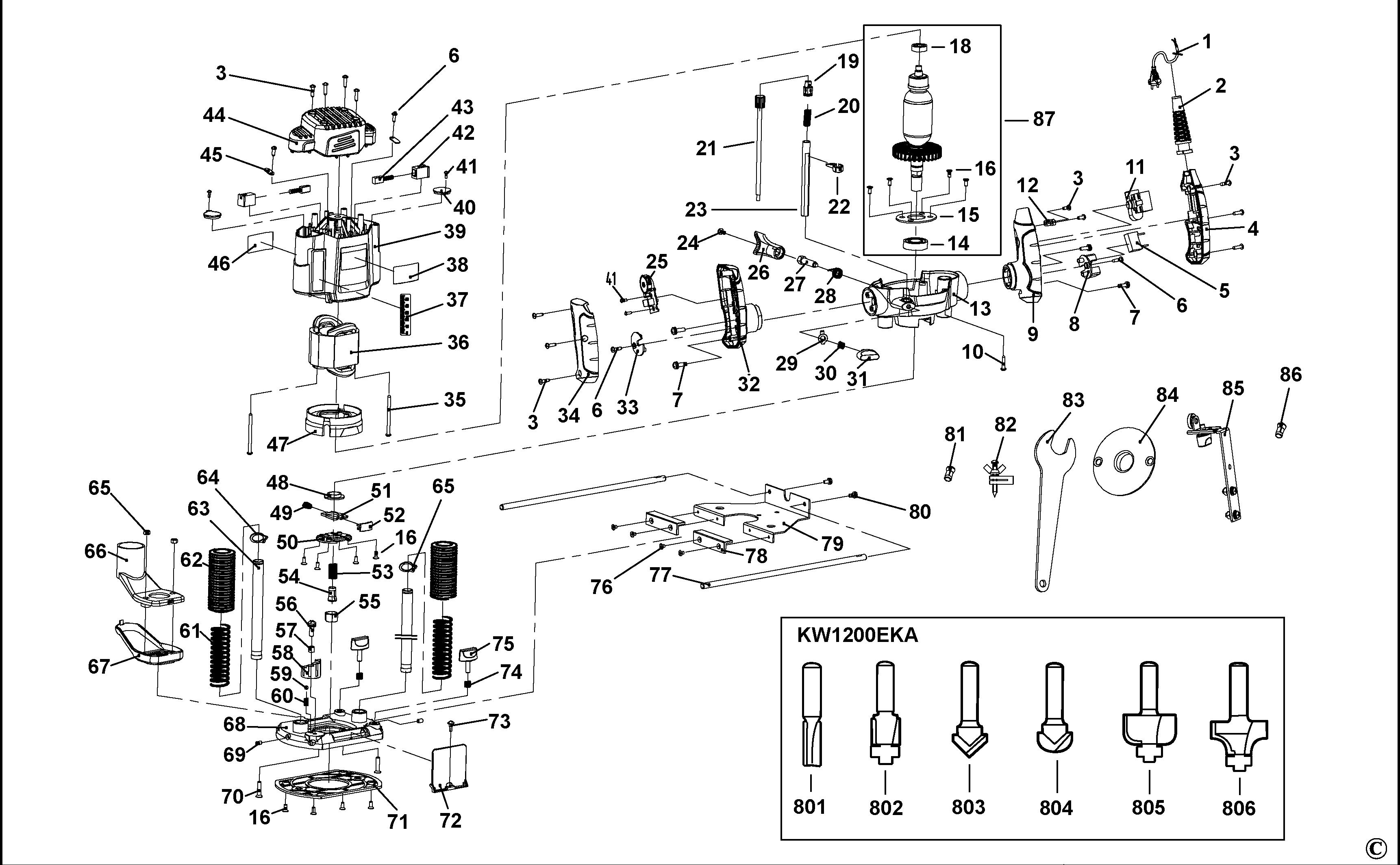

KW1200E PLUNGE ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004730-89 | 1 | CORDSET | KW1200E + EKA | GB |  |
|
| 2 | 5170025-18 | 1 | CORD PROTECTOR | GB |  |
||
| 3 | 5170025-19 | 12 | SCREW | ST4.2×16 | GB | |
|
| 4 | 1004730-91 | 1 | HANDLE COVER | RIGHT | GB | |
|
| 5 | 5170025-21 | 1 | CAPACITOR | GB | |
||
| 6 | 5170025-22 | 4 | SCREW | ST4.2×13 | GB | |
|
| 7 | 5170025-23 | 4 | SCREW | M5X18 | GB | |
|
| 8 | 5170025-24 | 1 | BOARD | GB | |
||
| 9 | 1004730-92 | 1 | HANDLE RH | GB | |
||
| 10 | 5170025-26 | 4 | SCREW | GB | |
||
| 11 | 5170025-27 | 1 | SWITCH | GB | |
||
| 12 | 5170025-28 | 1 | CORD CLAMP | GB | |
||
| 13 | 5170025-29 | 1 | GEARBOX | GB | |
||
| 14 | 5170025-30 | 1 | BEARING | GB | |
||
| 15 | 5170025-31 | 1 | PLATEN | GB | |
||
| 16 | 5170025-32 | 12 | SCREW | GB | |
||
| 18 | 5170025-34 | 1 | BEARING | GB | |
||
| 19 | 1004730-93 | 1 | ADJUSTER | GB | |
||
| 20 | 5170025-36 | 1 | SPRING | GB | |
||
| 21 | 1004730-94 | 1 | ADJUSTER | MOVING ADJUSTER | GB | |
|
| 22 | 5170025-38 | 1 | PIECE | GB | |
||
| 23 | 5170025-39 | 1 | DEPTH ROD | GB | |
||
| 24 | 5170025-40 | 1 | SCREW | GB | |
||
| 25 | 1004730-90 | 1 | BOARD | CONTROL | GB | |
|
| 26 | 1004730-95 | 1 | SPANNER | GB | |
||
| 27 | 5170025-43 | 1 | SCREW | GB | |
||
| 28 | 5170025-44 | 1 | SPRING | GB | |
||
| 29 | 5170025-45 | 1 | WASHER | GB | |
||
| 30 | 5170025-46 | 1 | SPRING | GB | |
||
| 31 | 1004730-96 | 1 | KNOB | GB | |
||
| 32 | 1004730-97 | 1 | HANDLE SA LH | GB | |
||
| 33 | 5170025-49 | 1 | BOARD | GB | |
||
| 34 | 1004730-98 | 1 | HANDLE COVER | GB | |
||
| 35 | 5170025-51 | 2 | SCREW | GB | |
||
| 36 | 5170025-52 | 1 | FIELD | GB | |
||
| 37 | 5170025-53 | 1 | LABEL | GB | |
||
| 38 | 1004731-00 | 1 | BRAND LABEL | GB | |
||
| 39 | 1004731-01 | 1 | HOUSING | COVER | GB | |
|
| 40 | 5170025-56 | 2 | PLATE | GB | |
||
| 41 | 5170025-57 | 4 | SCREW | GB | |
||
| 42 | 5170025-58 | 2 | BRUSH HOLDER | GB | |
||
| 43 | 5170025-59 | 1 | BRUSH PAIR | GB | |
||
| 44 | 1004731-02 | 1 | CASING UPPER | GB | |
||
| 45 | 5170025-61 | 2 | CORD CLAMP | GB | |
||
| 46 | 1004731-04 | 1 | RATING PLATE | KW1200E + EKA | GB | ||
| 47 | 5170025-63 | 1 | BAFFLE | GB | |
||
| 48 | 5170025-64 | 1 | NUT | GB | |
||
| 49 | 5170025-65 | 1 | SPRING | GB | |
||
| 50 | 5170025-66 | 1 | COVER | GB | |
||
| 51 | 5170025-67 | 1 | PIECE | GB | |
||
| 52 | 1004731-05 | 1 | KNOB | GB | |
||
| 53 | 5170025-69 | 1 | SPRING | GB | |
||
| 54 | 5170025-70 | 1 | COLLET 8MM | GB | |
||
| 55 | 5170025-71 | 1 | NUT | GB | |
||
| 56 | 5170025-72 | 1 | SCREW | GB | |
||
| 57 | 5170025-73 | 1 | SLEEVE | GB | |
||
| 58 | 5170025-74 | 1 | PIECE | GB | |
||
| 59 | 5170025-75 | 1 | BALL STEEL | GB | |
||
| 60 | 5170025-76 | 1 | SPRING | GB | |
||
| 61 | 5170025-77 | 2 | SPRING | GB | |
||
| 62 | 5170025-78 | 2 | SLEEVE | GB | |
||
| 63 | 5170025-79 | 2 | POLE PIECE SA | GB | |
||
| 64 | 5170025-80 | 2 | CIRCLIP | GB | |
||
| 65 | 5170025-81 | 2 | NUT | GB | |
||
| 66 | 5170025-82 | 1 | COVER | GB | |
||
| 67 | 5170025-83 | 1 | COVER | GB | |
||
| 68 | 5170025-84 | 1 | BASE | GB | |
||
| 69 | 5170025-85 | 2 | SCREW | GB | |
||
| 70 | 5170025-86 | 2 | SCREW | GB | |
||
| 71 | 5170025-87 | 1 | PLATE | GB | |
||
| 72 | 5170025-88 | 1 | BAFFLE | GB | |
||
| 73 | 5170025-89 | 1 | SCREW | GB | |
||
| 74 | 5170025-90 | 2 | SPRING | GB | |
||
| 75 | 5170025-91 | 2 | KNOB | GB | |
||
| 76 | 5170025-92 | 4 | SCREW | GB | |
||
| 77 | 5170025-93 | 2 | BAR | GB | |
||
| 78 | 5170025-94 | 2 | BOARD | GB | |
||
| 79 | 5170025-95 | 1 | GUIDE | GB | |
||
| 80 | 5170025-96 | 2 | SCREW | GB | |
||
| 81 | 5170025-97 | 1 | COLLET 6MM | GB | |
||
| 82 | 5170025-98 | 1 | PIN | GB | |
||
| 83 | 5170025-99 | 1 | SPANNER | GB | |
||
| 84 | 5170026-00 | 1 | GUIDE | GB | |
||
| 85 | 5170026-01 | 1 | FOLLOWER | GB | |
||
| 86 | 5170026-02 | 1 | COLLET | GB | |
||
| 87 | N544913 | 1 | ARMATURE SA | GB | |
||
| 801 | 5170026-03 | 1 | BIT | 1/4 STRAIGHT BIT; 1/4" straight bit | KW1200EKA | GB | |
| 802 | 5170026-04 | 1 | BIT | 1/2" FLUSH TRIM BIT | KW1200EKA | GB | |
| 803 | 5170026-06 | 1 | BIT | 1/2" GROOVE BIT | KW1200EKA | GB | |
| 804 | 5170026-05 | 1 | BIT | 1/2" COVE BOX BIT; 1/2"cove box bit | KW1200EKA | GB | |
| 805 | 5170026-08 | 1 | BIT | COVE BIT R6.35X22.3; R6.35 Cove bit | KW1200EKA | GB | |
| 806 | 5170026-07 | 1 | BIT | R4 ROMAN OGEE | KW1200EKA | GB | |
