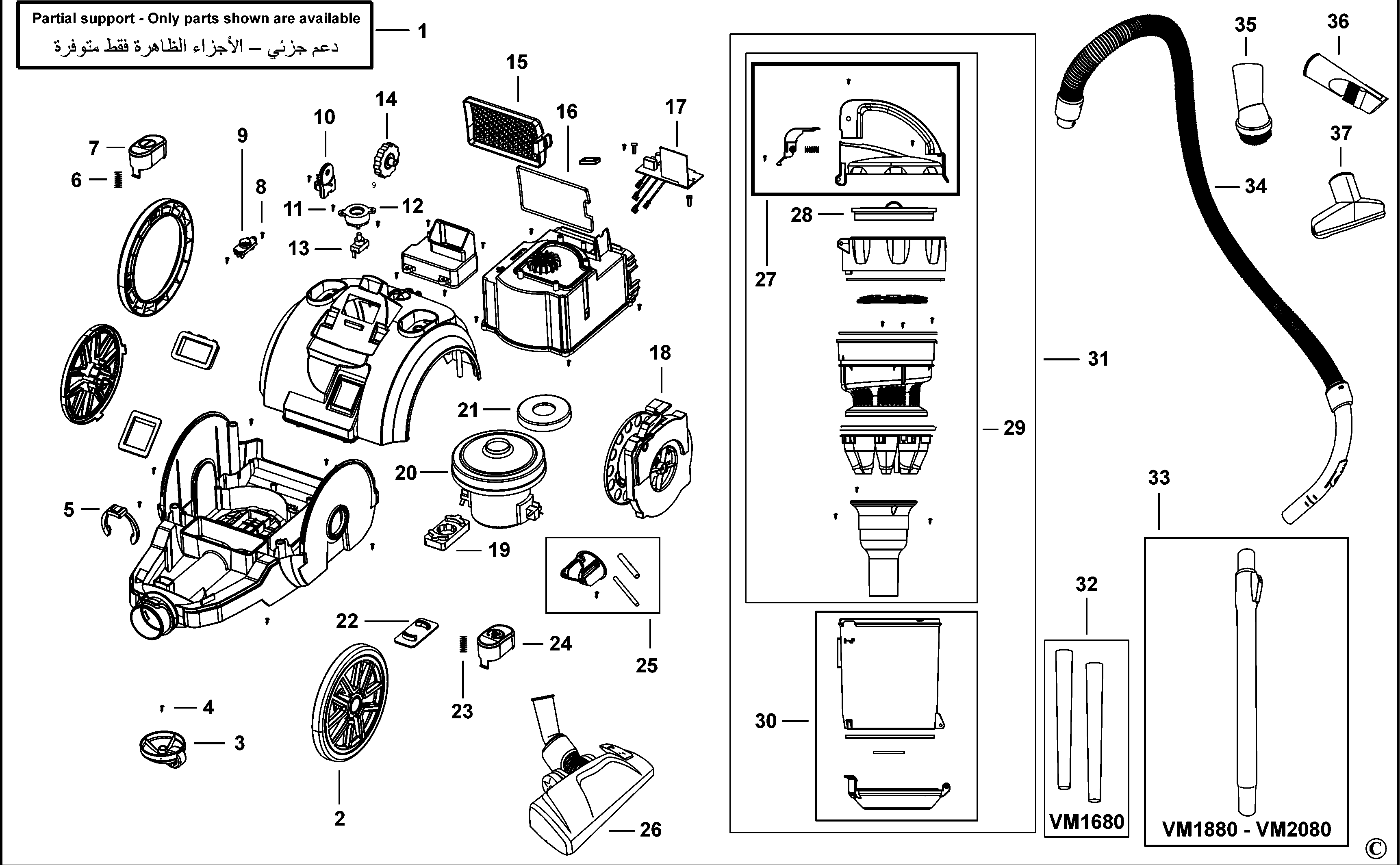

VM1880 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | 6010399-40 | 1 | WHEEL | XJ |  |
||
| 3 | 6010398-21 | 1 | WHEEL GUIDE | XJ | |
||
| 4 | 6010398-22 | 1 | SCREW | XJ | |
||
| 5 | 6010398-23 | 1 | LATCH | XJ | |
||
| 6 | 6010398-24 | 1 | SPRING | XJ | |
||
| 7 | 6010399-42 | 1 | BUTTON | XJ | |
||
| 8 | 6010398-26 | 2 | SCREW | XJ | |
||
| 9 | 6010398-27 | 1 | RETAINING PLATE | XJ | |
||
| 10 | 6010398-28 | 1 | BRACKET | XJ | |
||
| 11 | 6010398-29 | 1 | SCREW | 2.9x10 | XJ | |
|
| 12 | 6010398-30 | 1 | VALVE | XJ | |
||
| 13 | 6010398-31 | 1 | SWITCH | XJ | |
||
| 14 | 6010399-44 | 1 | KNOB | XJ | |
||
| 15 | 6010398-33 | 1 | GRILL | XJ | |
||
| 16 | 6010398-35 | 1 | FILTER | OUTLET | XJ | |
|
| 17 | 6010399-46 | 1 | PCB | XJ | |
||
| 18 | 6010398-37 | 1 | CORD PULL | XJ | |
||
| 19 | 6010398-45 | 1 | MOUNT | XJ | |
||
| 20 | 6010398-48 | 1 | MOTOR | XJ | |
||
| 21 | 6010398-50 | 1 | RUBBER SEAL | XJ | |
||
| 22 | 6010398-42 | 1 | BLOCK | XJ | |
||
| 23 | 6010398-40 | 1 | SPRING | XJ | |
||
| 24 | 6010399-47 | 1 | BUTTON | XJ | |
||
| 25 | 6010398-38 | 1 | GUIDE | CORDSET | XJ | |
|
| 26 | 6010399-51 | 1 | FOOT | XJ | |
||
| 27 | 6010399-53 | 1 | LID | BOWL | XJ | |
|
| 28 | 6010398-51 | 1 | FILTER | XJ | |
||
| 29 | 6010402-81 | 1 | FILTER/DEFLECTOR | XJ | |
||
| 30 | 6010399-58 | 1 | HOUSING LOWER | BOWL | XJ | |
|
| 31 | 6010399-49 | 1 | BOWL | XJ | |
||
| 33 | 6010398-54 | 1 | TUBE | XJ | |
||
| 34 | 6010398-56 | 1 | HANDLE SA | XJ | |
||
| 35 | 6010398-57 | 1 | BRUSH | XJ | |
||
| 36 | 6010398-58 | 1 | TOOL CREVICE | XJ | |
||
| 37 | 6010398-59 | 1 | BRUSH | XJ | |
