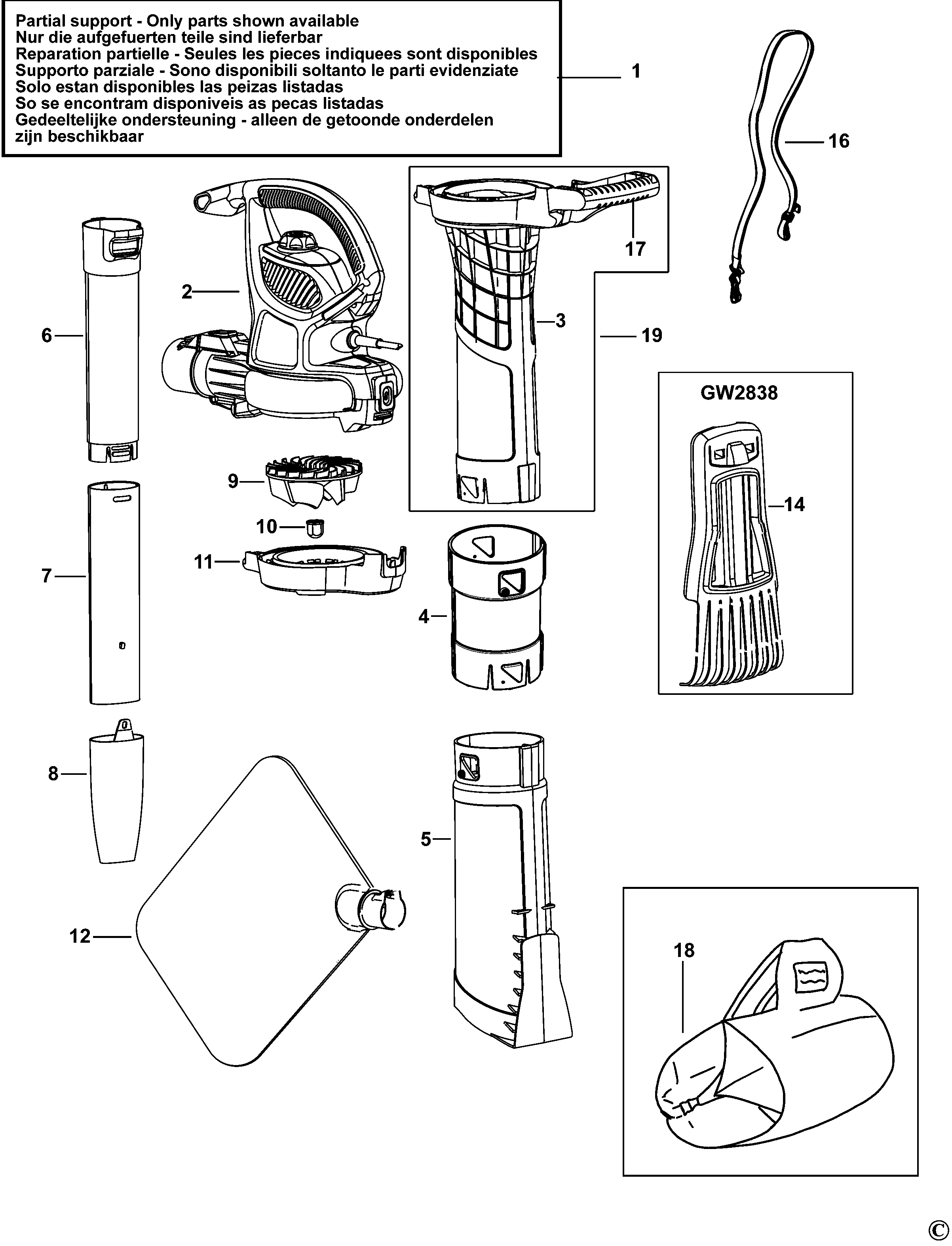

GW3031BP BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1230.30P3 | 1 | TIP | GB | |||
| 2 | 90593173N | 1 | HOUSING | GB |  |
||
| 3 | 90583877 | 1 | TUBE UPPER | GB | |
||
| 4 | 90583879 | 1 | TUBE SUPPORT | GB | |
||
| 5 | 90636988 | 1 | TUBE LOWER | GB | |
||
| 6 | 90519931 | 1 | TUBE UPPER | GB | |
||
| 7 | 90519932 | 1 | TUBE | GB | |
||
| 8 | 90520039 | 1 | TUBE LOWER | GB | |
||
| 9 | 90593175 | 1 | FAN SA | GB | |
||
| 10 | 90556361 | 1 | LOCK-NUT | GB | |
||
| 11 | 90582451 | 1 | FAN COVER | GB | |
||
| 14 | 90516147 | 1 | RAKE | GB | |
||
| 16 | 90593139 | 1 | STRAP | GB | |
||
| 17 | 90519815-01 | 1 | FAN COVER | GB | |
||
| 18 | N713676 | 1 | BAG SA | GB | |
||
| 19 | 90593149 | 1 | TUBE UPPER | SA | GB | |
|
| 100 | N480358 | 1 | LATCH | GB | |
||
| 101 | N619653 | 1 | CLAMSHELL SET | Front | GB | |
|
| 102 | N619639 | 1 | BUTTON RELEASE | HOSE | Back | GB | |
| 103 | N533758 | 1 | VENT | GB | |
||
| 106 | P006493 | 1 | AXLE WHEEL | Fan | GB | |
|
| 107 | 605601-01 | 1 | CORD CLAMP | Fan Front | GB | |
|
| 110 | 006920504 | 1 | NUT M6 | Manifold UTC | GB |  |
|
| 112 | 1004696-47 | 3 | SPRING | GB | |
||
| 113 | N562693 | 1 | NOSE | GB | |||
| 114 | 1004685-79 | 1 | CORDSET | GB | |
||
| 115 | P1246100457 | 1 | PUSHER | GB | |
||
| 116 | N299059 | 1 | Muffler | GB | |
||
| 118 | 009810200 | 1 | PIN | GB | |||
| 119 | 009162700 | 1 | CABLE CLAMP | Half Barb NPT | GB | ||
| 120 | 9063306 | 1 | SWITCH | PRESSURE | GB | |
|
| 121 | N225776 | 1 | LEVER SA | GB | |
||
| 122 | 869284-23 | 1 | KNOB SA | GB | |
||
| 123 | 9R209589 | 1 | MAGAZINE | GB | |
||
| 124 | N438651 | 2 | BEVEL SCALE | BERNER | GB | |
|
| 125 | N506489 | 1 | FIELDCASE | BLACK WURTH | GB | |
|
| 126 | N358479 | 1 | GUARD UPPER | GP | GB | ||
| 127 | 008824000 | 1 | HANDLE | GB | |||
| 129 | 008821103 | 1 | CIRCLIP | GB | |||
| 130 | N885431 | 1 | CON ROD | GB | |
||
| 131 | N173259 | 1 | SPRING | Check Valve | GB | |
|
| 133 | N433729 | 1 | OUTLET | LX | GB | |
|
| 134 | N419916 | 2 | HOUSING SA | BATTERY | GB | |
|
| 135 | N319779 | 2 | LEAD SA | GB | |
||
| 136 | 9R207410 | 1 | FRAME | GB | |
||
| 138 | 1004696-50 | 1 | SCREW | GB | |
||
| 139 | 1004566-07 | 1 | SEAL | GB | |
||
| 140 | S0801008000 | 2 | PIN | GB | |
||
| 141 | N421526 | 1 | SPINDLE SA | M14 | GB | |
|
| 142 | P910317 | 1 | HINGE | GB | |||
| 143 | N619630 | 1 | COVER SA | GB | |
||
| 144 | N121003 | 1 | CARRIAGE SA | GB | |
||
| 145 | 9R207481 | 1 | MAGAZINE | Manifold Body | GB | |
|
| 146 | H2400033150 | 1 | SEAL | GB | |
||
| 147 | 31R200238 | 2 | PIN | GB | |
||
| 148 | 195150 | 1 | DOOR | Barb | GB | |
|
| 149 | 31R200255 | 10 | PIN | GB | |
||
| 150 | A06438 | 8 | SHROUD | KIT UMC SHROUD BLACK | GB | ||
| 151 | 1004736-14 | 1 | O RING | GB | |
||
| 152 | 1004774-44 | 1 | SEAL | GB | |
||
| 153 | 1004691-69 | 1 | O RING | 13.4 x 2.4mm | GB | |
|
| 154 | 1004690-70 | 1 | SCREW | GB | |||
| 155 | 1004690-43 | 2 | RETAINER | GB | |||
| 156 | 31R200061 | 2 | SCREW | GB | |
||
| 157 | 31R200122 | 2 | WASHER | GB | |
||
| 159 | P2600321 | 1 | LATCH | GB | |
||
| 160 | 1004544-07 | 1 | PCB SA | HGW(1XBRIGHT 2 PIN) | GB | ||
| 161 | 31R200060 | 1 | SCREW | GB | |
||
| 162 | P3490000540 | 1 | END CAP | GB | |||
| 200 | N261344M | 1 | CASTING | GB | |
||
| 201 | 41P0308SGL | 1 | MOTOR & PUMP SA 240V | GB | |
||
| 202 | 9R203805 | 1 | FRAME | GB | |
||
| 204 | 647603-00-K | 1 | DRIVER SA | GB | |
||
| 205 | N620374 | 1 | BELT | GB | |
||
| 206 | 9R201803 | 1 | PLATFORM | GB | |
||
| 207 | N619312 | 1 | TANK | EURO | GB | |
|
| 208 | N084698SV | 1 | HOUSING SA | GB | |
||
| 209 | N924023 | 1 | IMPACTOR | GB | |
||
| 210 | N480915 | 1 | DOOR | GB | |
||
| 211 | N340206 | 1 | CARRIAGE | GB | |||
| 212 | Z57-7223 | 1 | BEARING HOUSING | GB | |
||
| 213 | Z57-7225 | 2 | BEARING | GB | |
||
| 214 | N473978 | 1 | SPINDLE & GEAR SA | GB | |
||
| 215 | 31R200051 | 1 | SPRING | GB | |
||
| 216 | 31R200052 | 1 | SCREW | GB | |
||
| 217 | 31R200053 | 1 | BUSHING | GB | |
||
| 218 | 1004690-69 | 4 | SCREW | GB | |||
| 219 | SSG3105 | 1 | O RING | 306/296ID 073/067W | GB | |
|
| 220 | P910566 | 1 | SEAL | GB | |
||
| 221 | N445338 | 1 | SPINDLE | 17MM 5KG CHIPPER | GB | ||
| 222 | N918410 | 1 | SPINDLE SA | GB | |
||
| 223 | 393703-00SV | 1 | GEAR SA | GB | |||
| 224 | N446359 | 1 | WASHER | GB | |||
| 225 | N399486 | 1 | CASTING | GB | |
||
| 235 | H1500004008 | 1 | HINGE | GB | |
||
| 300 | 9R209571 | 1 | TRIGGER | 2nd | GB | |
|
| 828 | N585989 | 1 | RATING PLATE | BTI 10KG | Tilt to Drain | GB | |
| 830 | N219994 | 1 | RATING PLATE | EURO | GB | |
