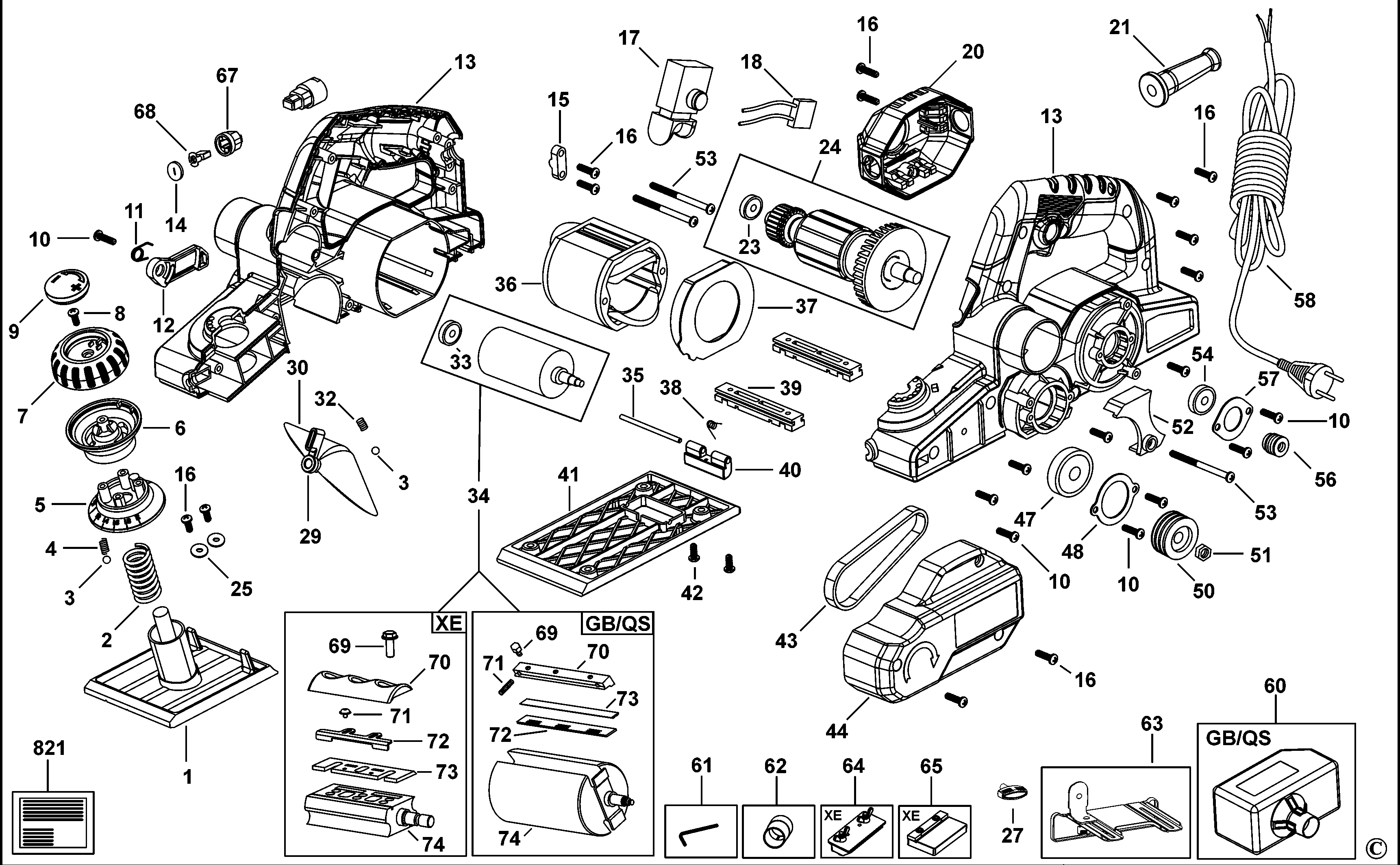

KW750 PLANER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004526-00 | 1 | SHOE | GB |  |
||
| 2 | 1004526-01 | 1 | SPRING | GB | |
||
| 3 | 1004526-02 | 2 | BALL STEEL | GB | |
||
| 4 | 1004526-03 | 1 | SPRING | GB | |
||
| 5 | 1004526-04 | 1 | DIAL PLATE | 2.0mm | GB | |
|
| 6 | 1004526-05 | 1 | KNOB LOWER | GB | |
||
| 7 | 1004526-06 | 1 | KNOB UPPER | GB | |
||
| 8 | 1004526-07 | 1 | SCREW | GB | |
||
| 9 | 1004526-08 | 1 | COVER | GB | |
||
| 10 | 1004526-09 | 6 | SCREW | GB |  |
||
| 11 | 1004526-10 | 1 | SPRING | GB | |
||
| 12 | 1004526-11 | 1 | GUARD COVER | GB | |
||
| 13 | 1004526-12 | 1 | CLAMSHELL SA | Orange | GB | |
|
| 14 | 1004526-14 | 2 | BRUSH CAP | GB | |
||
| 15 | 1004526-17 | 1 | CORD CLAMP | GB | |
||
| 16 | 1004526-18 | 15 | SCREW | GB | |
||
| 17 | 1004526-19 | 1 | SWITCH | GB | |
||
| 18 | 1004526-21 | 1 | CAPACITOR | GB | |
||
| 20 | 1004526-23 | 1 | MOTOR COVER | GB | |
||
| 21 | 1004526-24 | 1 | CORD PROTECTOR | GB | |
||
| 23 | 1004526-26 | 1 | BEARING | GB | |
||
| 24 | 1004526-27 | 1 | ARMATURE SA | Incl. 23 | GB | |
|
| 25 | 1004526-29 | 2 | WASHER LOCK | GB | |
||
| 27 | 1004526-31 | 1 | KNOB SA | GB | |
||
| 29 | 1004526-33 | 1 | LEVER | GB | |
||
| 30 | 1004526-34 | 1 | DEFLECTOR | GB | |
||
| 32 | 1004526-36 | 1 | SPRING | GB | |
||
| 33 | 1004526-37 | 1 | BEARING | GB | |
||
| 34 | 1004526-38 | 1 | BLADEDRUM SA | Incl. 33 | GB | |
|
| 35 | 1004526-46 | 1 | PIN | GB | |
||
| 36 | 1004526-47 | 1 | FIELD | GB | |
||
| 37 | 1004526-49 | 1 | BAFFLE FAN | GB | |
||
| 38 | 1004526-50 | 1 | SPRING | GB | |
||
| 39 | 1004526-51 | 2 | CLAMPING BAR | GB | |
||
| 40 | 1004526-52 | 1 | STAND | GB | |
||
| 41 | 1004526-53 | 1 | SHOE | GB | |
||
| 42 | 1004526-54 | 1 | SCREW | ST4.1x10mm | GB | |
|
| 43 | 1004526-55 | 1 | BELT | GB | |
||
| 44 | 1004526-56 | 1 | COVER BELT | GB | |
||
| 47 | 1004526-59 | 1 | BEARING | GB | |
||
| 48 | 1004526-60 | 1 | BEARING PLATE | GB | |
||
| 50 | 1004526-62 | 1 | WHEEL LARGE | GB | |
||
| 51 | 1004526-63 | 1 | NUT | GB | |
||
| 52 | 1004526-64 | 1 | BAFFLE | GB | |
||
| 53 | 1004526-65 | 3 | SCREW | GB | |
||
| 54 | 1004526-66 | 1 | BEARING | GB | |
||
| 56 | 1004526-68 | 1 | WHEEL DRIVING | GB | |
||
| 57 | 1004526-69 | 1 | BEARING PLATE | GB | |
||
| 58 | 1004526-88 | 1 | CORDSET | GB | |
||
| 60 | 1004526-75 | 1 | DUSTBAG | GB | |
||
| 61 | 1004526-76 | 1 | SPANNER | GB | |
||
| 62 | 1004526-78 | 1 | ADAPTOR TUBE | GB | |
||
| 63 | 1004526-79 | 1 | FENCE SA | Inc. 1 Washer & Knob | Inc. Washer & 1 Knob | GB | |
| 67 | 1004526-15 | 2 | BRUSH HOLDER | GB | |
||
| 68 | 1004526-16 | 1 | BRUSH PAIR | GB | |
||
| 69 | 1004526-90 | 6 | SCREW | GB | |
||
| 70 | 1004526-91 | 2 | BLADE CLAMP | GB | |
||
| 71 | 1004526-92 | 4 | SCREW | GB | |
||
| 72 | 1004526-93 | 2 | SUPPORT | GB | |
||
| 73 | 1004526-94 | 2 | BLADE | GB | |
||
| 74 | 1004526-95 | 1 | CUTTER BLOCK | GB | |
||
| 821 | 1004526-89 | 1 | RATING PLATE | GB | |
