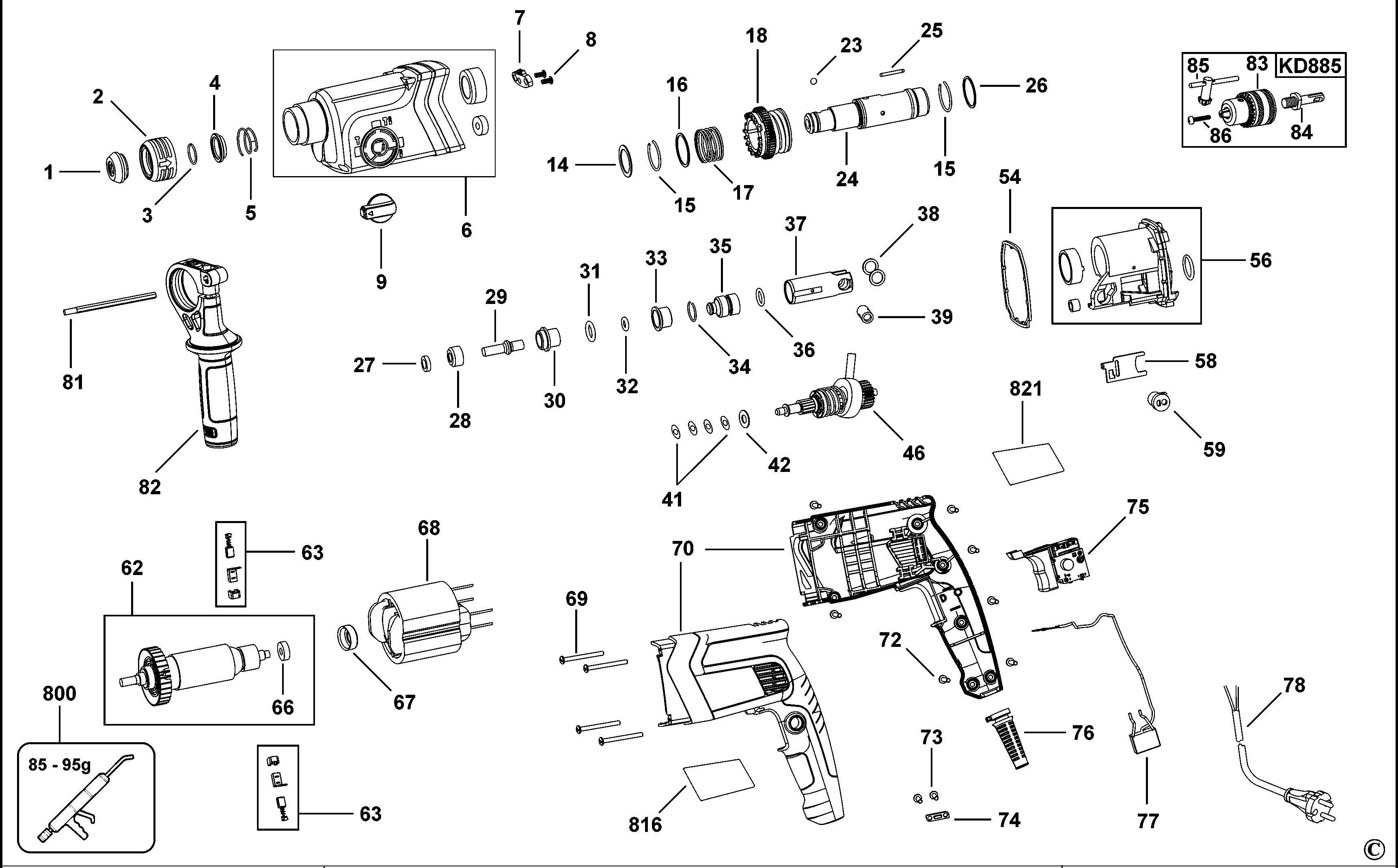

KD885 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524563 | 1 | TIP | GB |  |
||
| 2 | 90524565 | 1 | COLLAR | GB | |
||
| 3 | 90558298 | 1 | CIRCLIP | GB | |
||
| 4 | 90549795 | 1 | HOLDER | GB | |
||
| 5 | 90549908 | 1 | SPRING | GB | |
||
| 6 | 90567043 | 1 | GEARCASE SA | GB | |
||
| 7 | 90549588 | 1 | BRAKE | GB | |
||
| 8 | 90550523 | 2 | SCREW | GB | |
||
| 9 | 90550357 | 1 | SELECTOR SA | GB | |||
| 14 | 90558481 | 1 | GASKET | GB | |
||
| 15 | 90558296 | 2 | CIRCLIP | GB | |
||
| 16 | 90549885 | 1 | WASHER | GB | |
||
| 17 | 90550375 | 1 | SPRING | GB | |
||
| 18 | 90567045 | 1 | CLUTCH SA | GB | |
||
| 23 | 90550363 | 1 | BALL STEEL | GB | |
||
| 24 | 90549105 | 1 | SHAFT | GB | |
||
| 25 | 90550377 | 1 | PIN | GB | |
||
| 26 | 90549888 | 1 | WASHER | GB | |
||
| 27 | 90553674 | 1 | SEAL | GB | |
||
| 28 | 90549947 | 1 | BLOCK | GB | |
||
| 29 | 90549569 | 1 | IMPACTOR | GB | |
||
| 30 | 90549948 | 1 | SLEEVE | GB | |
||
| 31 | 90558560 | 1 | O RING | GB | |
||
| 32 | 90558559 | 1 | O RING | GB | |
||
| 33 | 90549654 | 1 | SLEEVE | GB | |
||
| 34 | 90558294 | 1 | CIRCLIP | GB | |
||
| 35 | 90549635 | 1 | RAM | GB | |
||
| 36 | 90558558 | 1 | O RING | GB | |
||
| 37 | 90549489 | 1 | CYLINDER | GB | |
||
| 38 | 90549884 | 2 | WASHER | GB | |
||
| 39 | 90549488 | 1 | PIN | GB | |
||
| 41 | 90549946 | 4 | WASHER SPRING | GB | |
||
| 42 | 90558300 | 1 | GASKET | GB | |
||
| 46 | 90567049 | 1 | INTERSHAFT SA | GB | |
||
| 54 | 90550379 | 1 | GASKET | GB | |
||
| 56 | 90567050 | 1 | SUPPORT PLATE | GB | |
||
| 58 | 90549820 | 1 | SELECTOR | GB | |
||
| 59 | 90549812 | 1 | KNOB | GB | |
||
| 62 | 90563247 | 1 | ARMATURE SA | GB |  |
||
| 63 | 90567052 | 1 | BRUSH HOLDER PAIR | GB | |
||
| 66 | 90530454 | 1 | BEARING | GB | |
||
| 67 | 90549817 | 1 | SLEEVE BEARING | GB | |
||
| 68 | 90563246 | 1 | FIELD SA | GB | |
||
| 69 | 330065-16 | 4 | SCREW | GB | |
||
| 70 | 90563192 | 1 | CLAMSHELL PAIR | GB | |
||
| 72 | 330065-07 | 7 | SCREW | GB | |
||
| 73 | 330065-05 | 2 | SCREW | GB | |
||
| 74 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 75 | 90550361 | 1 | SWITCH | GB | |
||
| 76 | 629648-00 | 1 | CORD PROTECTOR | GB | |
||
| 77 | 90550485 | 1 | CAPACITOR | GB | |
||
| 78 | 90553311 | 1 | CORDSET | GB | |
||
| 81 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 82 | 90547752 | 1 | HANDLE SA | GB | |
||
| 83 | 621050-00 | 1 | CHUCK 13MM | GB | |
||
| 84 | 352065 | 1 | ADAPTOR | GB | |
||
| 85 | 621400-00 | 1 | CHUCK KEY 13MM | GB | |
||
| 86 | 1005216-00 | 1 | SCREW | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 90550401 | 1 | BRAND LABEL | GB | |
||
| 821 | 90611579 | 1 | RATING LABEL | 6/8/15 > | GB | |
|
| 821 | 90553216 | 1 | RATING PLATE | GB | |
