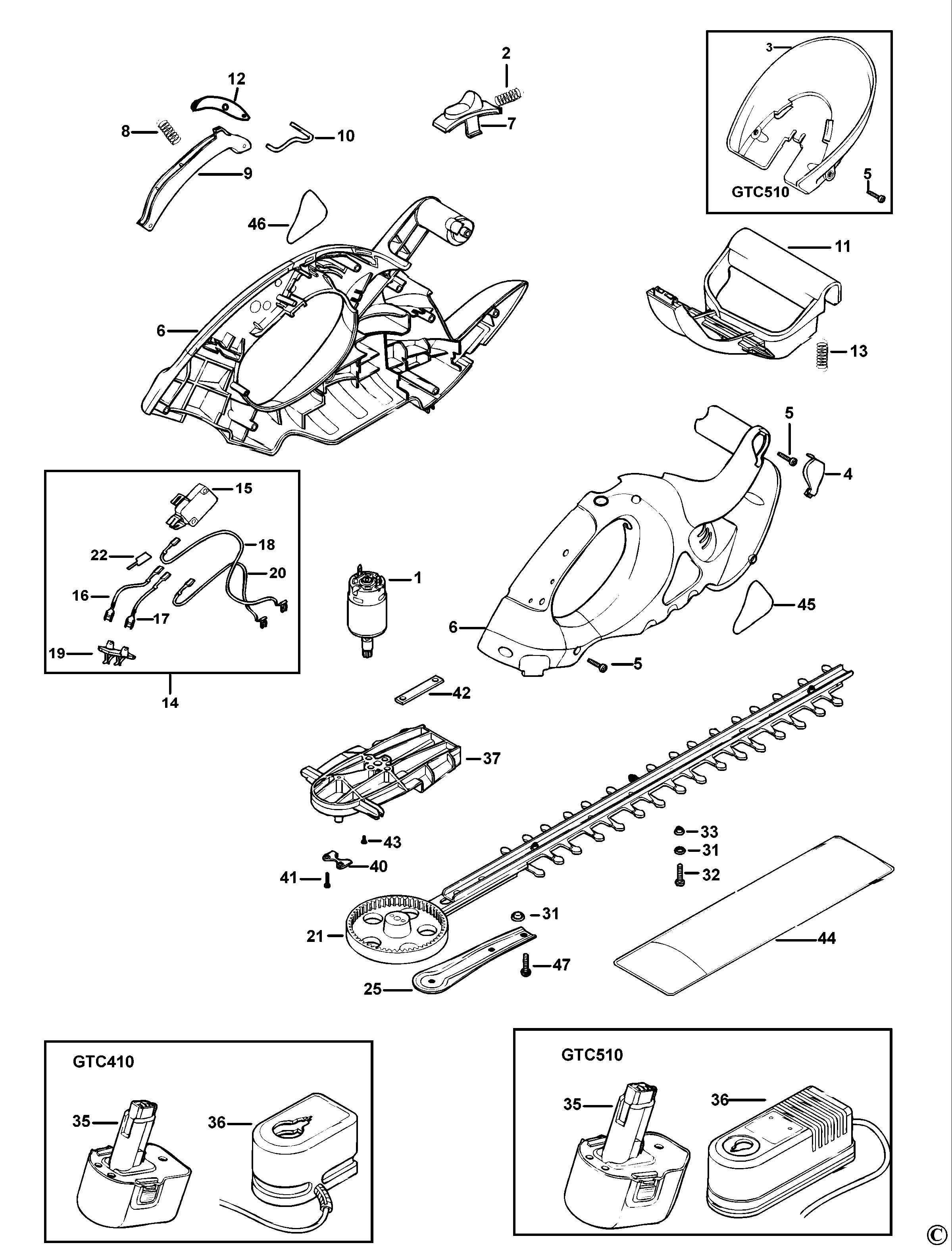

GTC410 CORDLESS HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 571833-00 | 1 | MOTOR SA | GB |  |
||
| 2 | 577658-00 | 1 | SPRING | GB | |
||
| 4 | 574095-00 | 2 | CAP | GB | |
||
| 5 | 747329 | 8 | SCREW | GB |  |
||
| 6 | 571809-00 | 1 | CLAMSHELL | GB | |
||
| 7 | 576736-00 | 1 | BUTTON LOCK-OFF | GB | |
||
| 8 | 571814-00 | 1 | SPRING | GB | |
||
| 9 | 571860-00 | 1 | TRIGGER | GB | |
||
| 10 | 571813-00 | 1 | LINK | GB | |
||
| 11 | 571812-00 | 1 | ACTUATOR | GB | |
||
| 12 | 571811-00 | 1 | CONNECTOR | GB | |
||
| 13 | 573374-00 | 1 | SPRING | GB | |
||
| 14 | 576079-00 | 1 | SWITCH SA | GB | |
||
| 15 | 576084-00 | 1 | SWITCH | GB | |
||
| 16 | 574003-00 | 1 | LEAD RED | GB | |
||
| 17 | 574004-00 | 1 | LEAD BLACK | GB | |
||
| 18 | 574005-00 | 1 | LEAD RED | GB | |
||
| 19 | 369296 | 1 | TERMINAL SA | GB | |
||
| 20 | 574224-00 | 1 | LEAD BLACK | GB | |
||
| 21 | 571820-00 | 1 | BLADE SA | 41CM | GB | |
|
| 22 | 577704-00 | 1 | INSULATOR | GB | |
||
| 25 | 370920 | 1 | PLATE | GB | |
||
| 31 | 573217-00 | 8 | SPACER | GB | |
||
| 32 | 371954-01 | 6 | BOLT | GB | |
||
| 33 | 798755 | 6 | NUT M5 | GB | |||
| 35 | 497033-82 | 1 | BATTERY 12V - 1.2AH | NiCd | GB | |
|
| 36 | 90500831-01 | 1 | CHARGER 12V GB | GB | |
||
| 37 | 571824-00 | 1 | GEARCASE SA | GB | |
||
| 40 | 574164-00 | 1 | INSERT | GB | |||
| 41 | 570567 | 2 | SCREW | GB | |
||
| 42 | 370927 | 1 | PLATE | GB | |
||
| 43 | 576575-00 | 2 | SCREW | GB | |
||
| 44 | 576571-02 | 1 | SHEATH | GB | |
||
| 45 | 574133-00 | 1 | WARNING LABEL | GB | |
||
| 46 | 571816-00 | 1 | BRAND LABEL | GB | |
||
| 47 | 798754-01 | 2 | BOLT | GB | |
