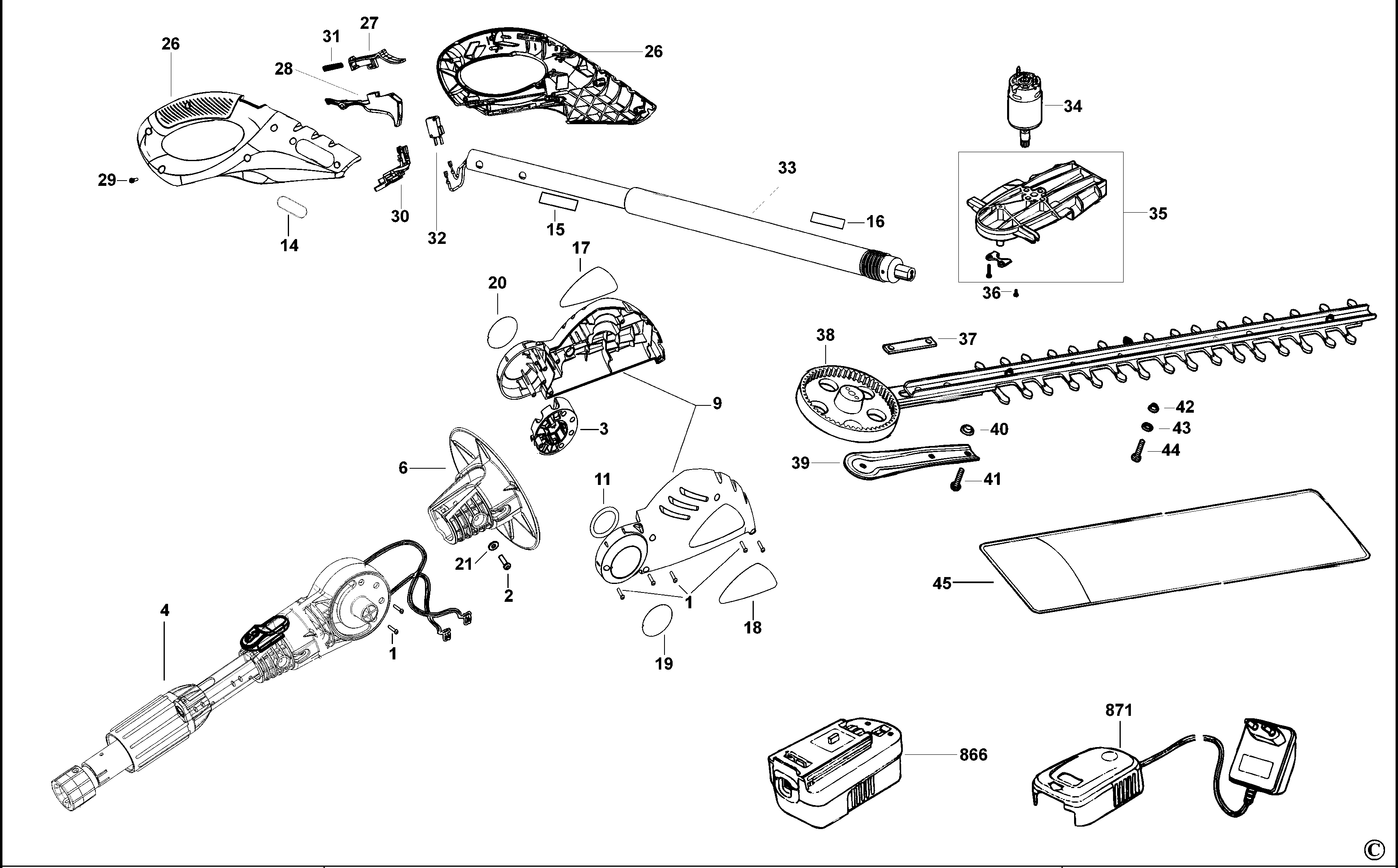

GTC800 CORDLESS CLIPPER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330019-05 | 10 | SCREW | GB |  |
||
| 2 | 330019-03 | 1 | SCREW | GB | |
||
| 3 | 5145114-00 | 1 | PIVOT BLOCK | GB | |
||
| 4 | 90502509 | 1 | HEAD SA | POLE PIVOT | GB |  |
|
| 6 | 5145119-00 | 1 | GUARD | GB | |
||
| 9 | 90502483 | 1 | CLAMSHELL SET | GB | |
||
| 11 | 5145133-00 | 1 | O RING | GB | |
||
| 14 | 5145627-02 | 1 | IDENTITY LABEL | GB | |
||
| 15 | 5145439-03 | 1 | WARNING LABEL | GB | |
||
| 16 | 626984-00 | 1 | LABEL | INFORMATION | GB | |
|
| 17 | 5145438-02 | 1 | IDENTITY LABEL | GB | |
||
| 18 | 5145440-03 | 1 | NAMEPLATE | GB | |
||
| 19 | 90502845 | 1 | LABEL PIVOT | RHS | GB | |
|
| 20 | 90502846 | 1 | LABEL PIVOT | LHS | GB | |
|
| 21 | 5145796-00 | 1 | WASHER | GB | |
||
| 26 | 5145058-01 | 1 | CLAMSHELL SET | HANDLE GREEN | GB | |
|
| 27 | 244695-01 | 1 | LOCK BUTTON | GB | |
||
| 28 | 624810-01 | 1 | TRIGGER | GB | |
||
| 29 | 330019-03 | 6 | SCREW | GB | |
||
| 30 | 5104139-00 | 1 | TERMINAL SA | GB | |||
| 31 | 5104138-00 | 1 | SPRING | GB | |
||
| 32 | 5103536-00 | 1 | SWITCH | GB | |
||
| 33 | 625083-01 | 1 | POLE PIECE SA | GB | |
||
| 34 | 571833-02 | 1 | MOTOR & PINION | GB | |
||
| 35 | 571824-01 | 1 | GEARCASE SA | GB | |
||
| 36 | 311940-03 | 2 | SCREW | GB | |
||
| 37 | 370927 | 1 | PLATE | GB | |
||
| 38 | 5149018-00 | 1 | BLADE & GEAR SA | 43CM | GB | |
|
| 39 | 571828-00 | 1 | COVER GEARCASE | GB | |
||
| 40 | 573217-00 | 2 | SPACER | GB | |
||
| 41 | 5103514-00 | 2 | BOLT | GB | |
||
| 42 | 798755 | 7 | NUT M5 | GB | |||
| 43 | 575678-00 | 7 | SPACER | GB | |
||
| 44 | 371954-01 | 7 | BOLT | GB | |
||
| 45 | 90501575 | 1 | SHEATH | GB | |
||
| 866 | 5103553-00 | 1 | BATTERY 18V - 1.5AH - 27WH | GB | |
||
| 871 | 90613804 | 1 | CHARGER | 2.1A | GB | |
