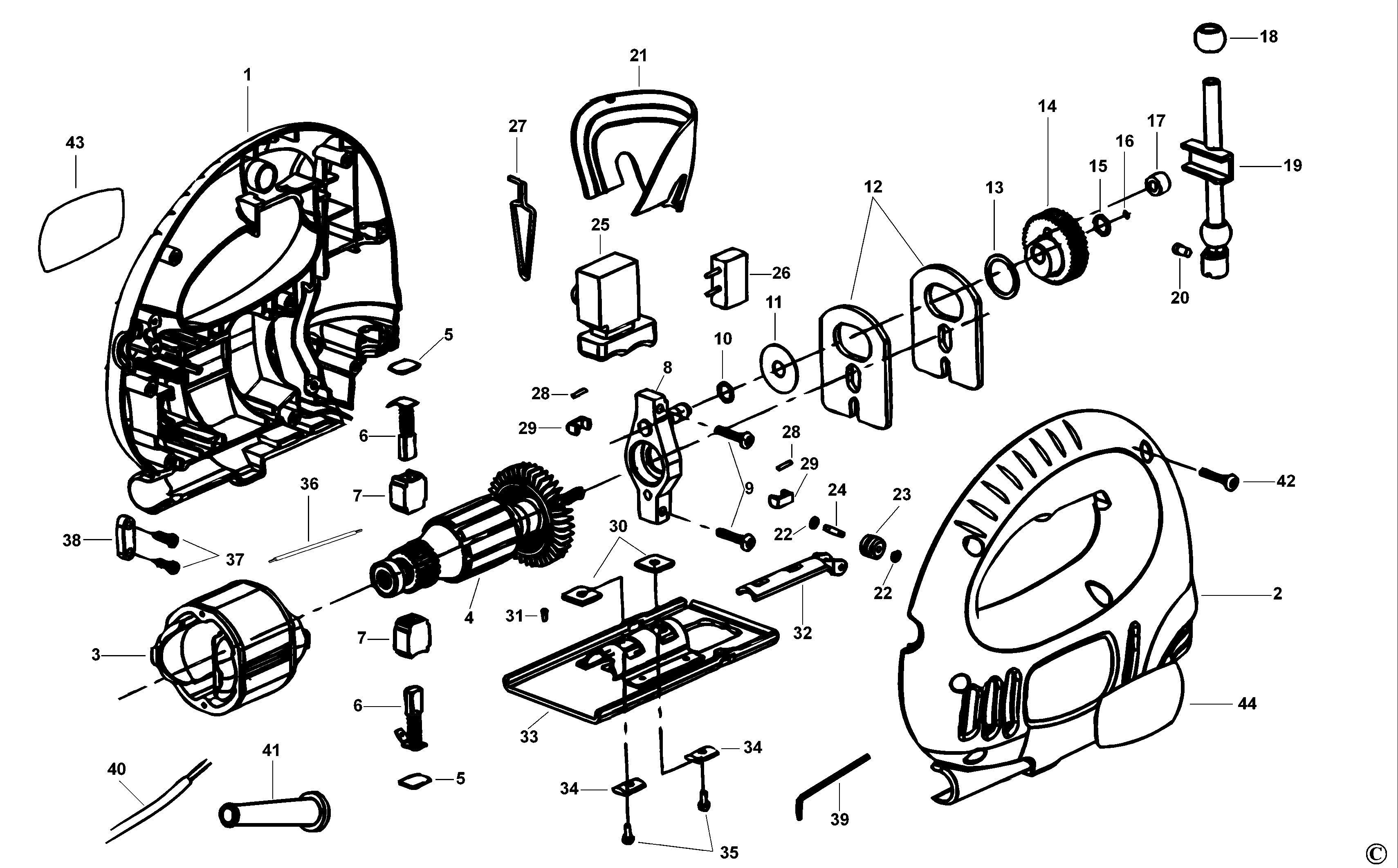

CD301 JIGSAW Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	6010119-01	1	CLAMSHELL LH	CD301-01	XJ
2	6010119-02	1	CLAMSHELL RH	CD301-02	XJ
5	6010119-05	2	BLOCK	CD301-05	XJ
6	6010119-06	2	BRUSH	CD301-06	XJ
7	6010119-07	2	BRUSH HOLDER	CD301-07	XJ
8	6010119-08	1	HOLDER	CD301-08	XJ
9	6010119-09	2	SCREW	CD301-09	XJ
10	6010119-10	1	WASHER	CD301-10	XJ
11	6010119-11	1	WASHER	CD301-11	XJ
12	6010119-12	2	SUPPORT PLATE	CD301-12	XJ
13	6010119-13	1	WASHER	CD301-13	XJ
15	6010119-15	1	WASHER	CD301-15	XJ
16	6010119-16	1	RING	CD301-16	XJ
17	6010119-17	1	RING	CD301-17	XJ
18	6010119-18	1	BEARING SLIDE	CD301-18	XJ
19	6010119-19	1	PLUNGER	CD301-19	XJ
20	6010119-20	1	SCREW	CD301-20	XJ
21	6010119-21	1	GUARD	CD301-21	XJ
22	6010119-22	1	RING	CD301-22	XJ
23	6010119-23	1	WHEEL GUIDE	CD301-23	XJ
24	6010119-24	1	SHAFT	CD301-24	XJ
27	6010119-27	1	WIRE STEEL	CD301-27	XJ
28	6010119-28	1	PIN	CD301-28	XJ
29	6010119-29	1	CHUTE	CD301-29	XJ
30	6010119-30	2	NUT	CD301-30	XJ
31	6010119-31	1	PIN	CD301-31	XJ
32	6010119-32	1	HOLDER	CD301-32	XJ
33	6010119-33	1	BASE PLATE	CD301-33	XJ
34	6010119-34	2	PLATE	CD301-34	XJ
35	6010119-35	2	SCREW	CD301-35	XJ
36	6010119-36	1	LEADWIRE		XJ
37	6010119-37	2	SCREW	CD301-37	XJ
38	6010119-38	1	CORD CLAMP	CD301-38	XJ
39	000000-00	1	NO LONGER AVAILABLE		XJ
41	6010119-41	1	CORD PROTECTOR	CD301-41	XJ
42	6010119-42	6	SCREW	CD301-42	XJ
43	1003225-00	1	BRAND LABEL		XJ
45	1003463-00	1	PLATE		XJ
