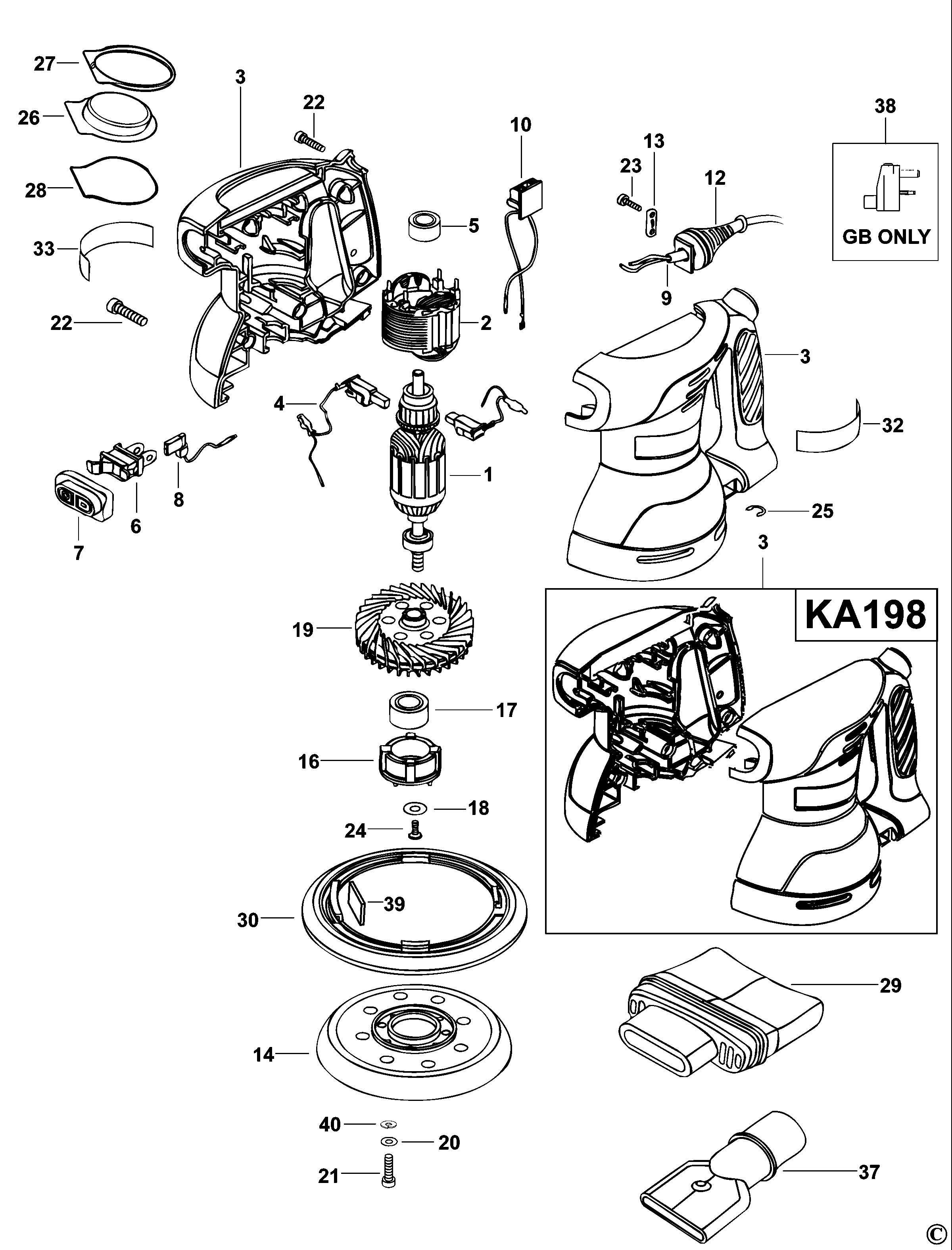

KA198GT RANDOM ORBIT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 589430-00 | 1 | ARMATURE SA | GB |  |
||
| 2 | 589431-00 | 1 | FIELD SA | GB | |
||
| 3 | 587824-00 | 1 | CLAMSHELL SET | GB |  |
||
| 4 | 584751-00 | 2 | BRUSH & HOLDER SA | GB | |
||
| 5 | 574853-06 | 1 | BEARING | GB | |
||
| 6 | 579050-00 | 1 | SWITCH | GB | |
||
| 7 | 808495-04N | 1 | ACTUATOR | GB | |
||
| 8 | 389602-02 | 1 | LEAD SA | GB | |
||
| 9 | 90578995-47 | 1 | CORDSET (EURO) | GB | |
||
| 10 | 588549-00 | 1 | PCB SA | GB | |
||
| 12 | 148481-00 | 1 | CORD PROTECTOR | GB | |
||
| 13 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 14 | 587295-01 | 1 | PLATEN | > 2009-30 | GB | |
|
| 14 | 1004522-00 | 1 | PLATE KIT | < 2009-29 | Incl 14, 4x20 + 4x21 | GB | |
|
| 16 | 587297-00 | 1 | BEARING HOUSING | GB | |
||
| 17 | 574853-05 | 1 | WASHER | GB | |
||
| 18 | 151652-00 | 1 | WASHER | GB | |
||
| 19 | 587298-00 | 1 | COUNTERWEIGHT | GB | |
||
| 20 | 330016-01 | 4 | WASHER | GB | |
||
| 21 | 330019-02 | 4 | SCREW | GB | |
||
| 22 | 747329 | 6 | SCREW | GB | |
||
| 23 | 370748 | 2 | SCREW | GB | |
||
| 24 | 388405-00 | 1 | SCREW | GB | |
||
| 25 | 122198-00 | 1 | RETAINER | GB | |
||
| 26 | 584196-01 | 1 | PAD | GB | |
||
| 27 | 584197-00 | 1 | COLLAR | GB | |
||
| 28 | 477259-00 | 1 | SHIM | GB | |
||
| 29 | 587299-01 | 1 | DUSTBAG | GB | |
||
| 30 | 587461-00 | 1 | SKIRT | GB | |
||
| 32 | 587695-00 | 1 | BRAND LABEL | GB | |
||
| 33 | 587697-00 | 1 | RATING PLATE | GB | |
||
| 37 | 587561-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 38 | 588384-00 | 1 | ADAPTOR SA | GB | |
||
| 39 | 579065-00 | 1 | BRAKE | PAD ADHESIVE | GB | |
|
| 40 | 098197-11 | 4 | WASHER LOCK | GB | |
