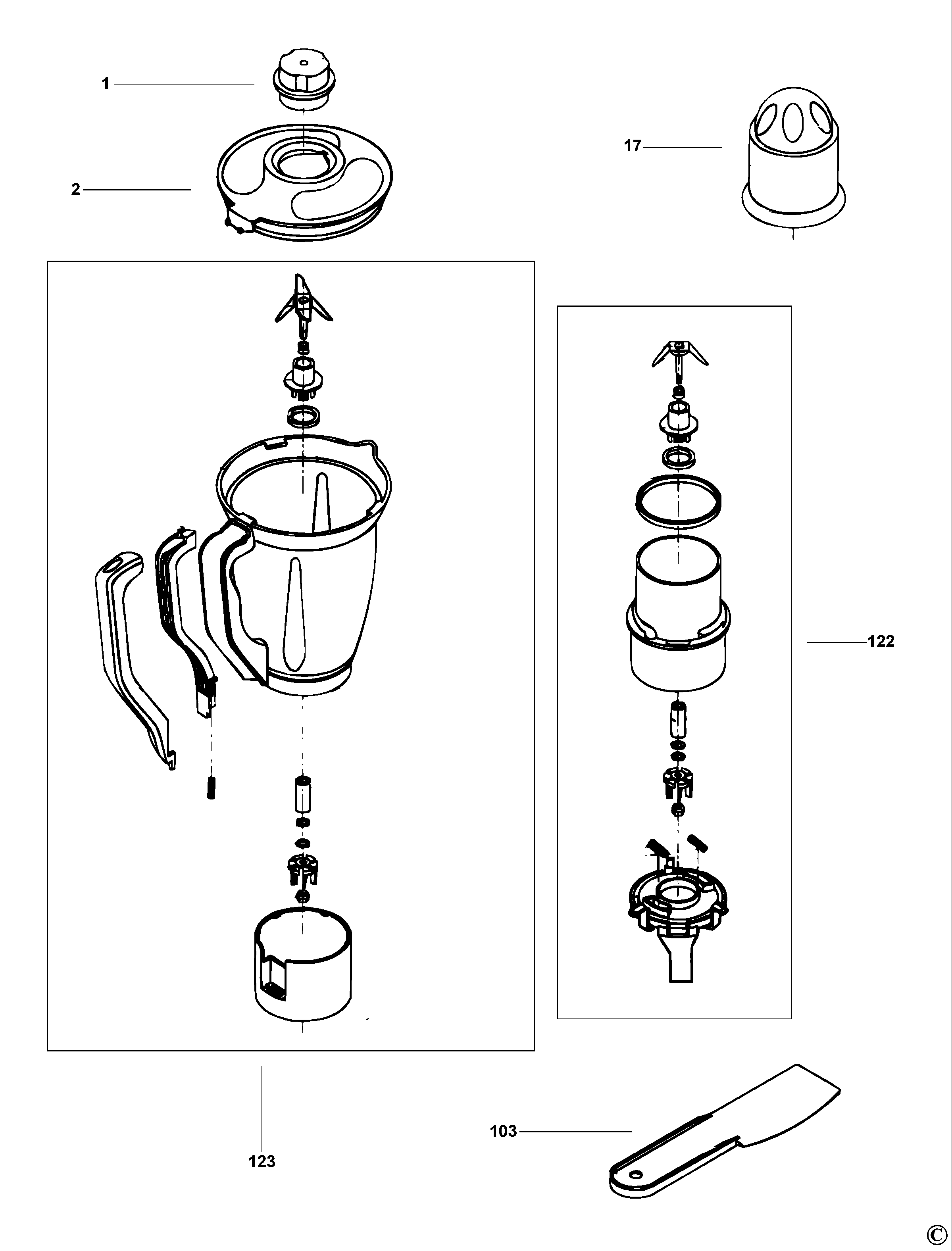

FP600 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569149-00 | 1 | PLUG | STOPPER | XJ |  |
|
| 2 | 569150-00 | 1 | LID | XJ | |
||
| 17 | 569151-00 | 1 | COVER | GRINDER | XJ | |
|
| 23 | 569155-00 | 1 | COVER-TOP | XJ | |
||
| 24 | 569156-00 | 1 | COVER | NUT | XJ | |
|
| 25 | 569215-00 | 1 | DRIVE | XJ | |
||
| 27 | 569216-00 | 1 | BLOCK | XJ | |
||
| 29 | 569217-00 | 1 | COVER | XJ | |
||
| 31 | 569218-00 | 1 | RIGHT BLOCK | XJ | |
||
| 32 | 569219-00 | 1 | SHAFT | XJ | |
||
| 33 | 569220-00 | 1 | LEFT BLOCK | XJ | |
||
| 34 | 569277-00 | 1 | BODY | XJ | |
||
| 45 | 569221-00 | 1 | BELT | XJ | |
||
| 47 | 569278-00 | 1 | BASE | XJ | |
||
| 49 | 569222-00 | 4 | FOOT | XJ | |
||
| 75 | 569223-00 | 1 | TUBE | XJ | |
||
| 78 | 569224-00 | 1 | CUTTER | XJ | |
||
| 79 | 569225-00 | 1 | CUTTER DISCS | SLICER | XJ | |
|
| 80 | 569226-00 | 1 | BLADE.SHREDDING | XJ | |
||
| 81 | 569227-00 | 1 | GUIDE | XJ | |
||
| 82 | 569228-00 | 1 | BLADE | EGG BEATER | XJ | |
|
| 83 | 569229-00 | 1 | SHAFT | BLADE | XJ | |
|
| 84 | 569230-00 | 1 | CONE | BIG | XJ | |
|
| 85 | 569231-00 | 1 | CONE | LITTLE | XJ | |
|
| 89 | 569232-00 | 1 | REAMER | XJ | |
||
| 102 | 569233-00 | 1 | BLADE | FLOUR | XJ | |
|
| 103 | 569154-00 | 1 | BLADE | XJ | |
||
| 110 | 569234-00 | 1 | LID SA | XJ | |
||
| 111 | 569235-00 | 1 | BLADE SA | XJ | |
||
| 112 | 569236-00 | 1 | BOWL | JUG | XJ | |
|
| 113 | 569237-00 | 1 | BEARING SA | XJ | |
||
| 114 | 569238-00 | 1 | GEAR SA | XJ | |
||
| 115 | 569279-00 | 1 | FRAME SA | XJ | |
||
| 116 | 569239-00 | 1 | GEAR | XJ | |
||
| 117 | 569280-00 | 1 | MOTOR | XJ | |
||
| 118 | 569240-00 | 1 | MOTOR HOUSING SA | XJ | |
||
| 119 | 569241-00 | 1 | GUARD | XJ | |
||
| 120 | 569242-00 | 1 | SWITCH SA | XJ | |
||
| 121 | 569243-00 | 1 | SHAFT SA | XJ | |
||
| 122 | 569153-00 | 1 | GRINDER | SUB ASSEMBLY | XJ | |
