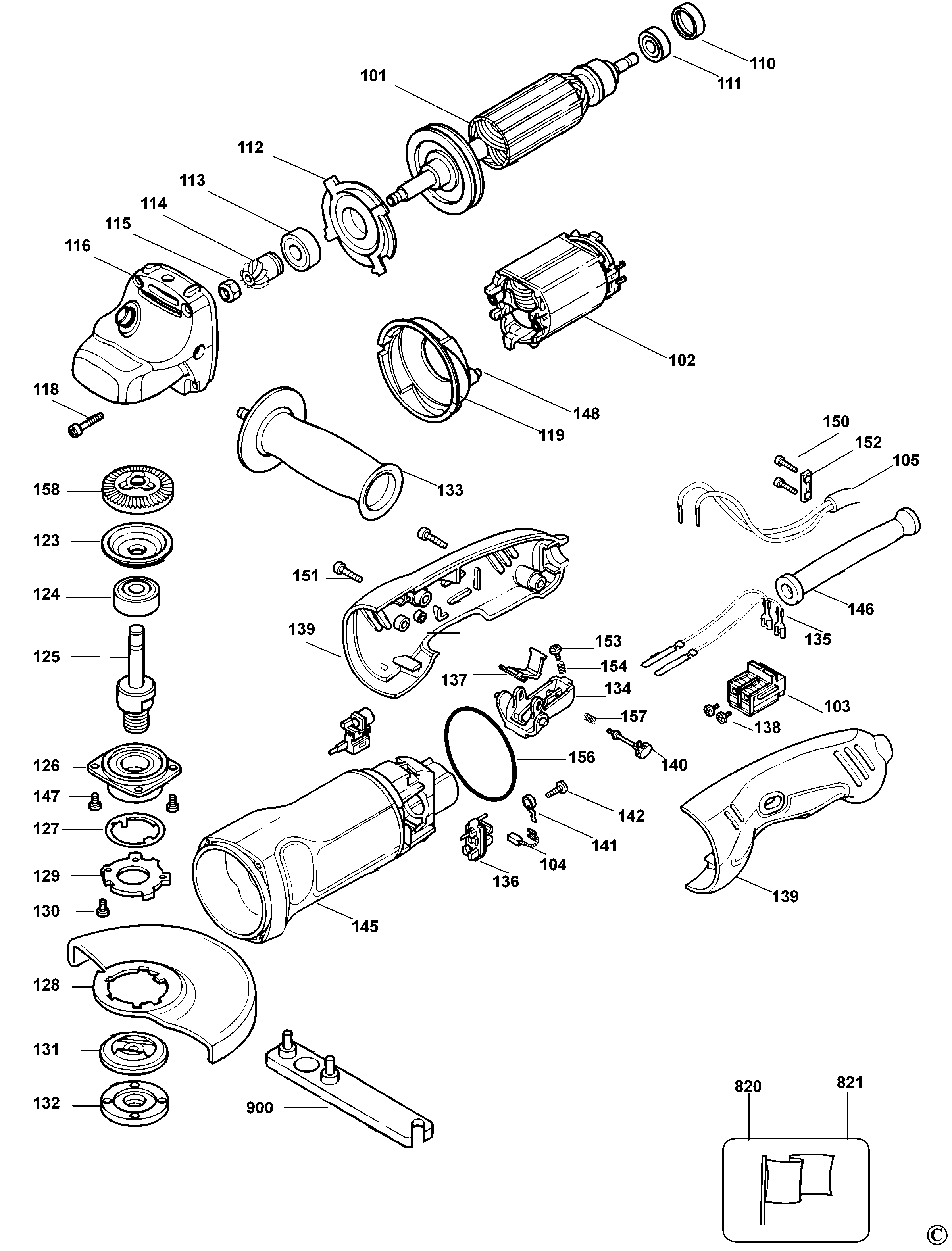

KG88 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 103 | 578957-01 | 1 | SWITCH | XJ |  |
||
| 110 | 930275-00 | 1 | SLEEVE | XJ |  |
||
| 111 | 573119-02 | 1 | BEARING | XJ | |
||
| 112 | 401622-01 | 1 | FLANGE | XJ | |
||
| 113 | 573119-00 | 1 | BEARING | 8x22x7 - 608 2RS | XJ | |
|
| 115 | 945292-00 | 1 | NUT | XJ | |
||
| 116 | 572166-01 | 1 | GEARCASE SA | XJ | |
||
| 118 | 562097-10 | 4 | SCREW | XJ | |
||
| 119 | 401623-00 | 1 | BAFFLE | XJ | |
||
| 123 | 403156-00 | 1 | FLANGE | XJ | |
||
| 124 | 573119-01 | 1 | BEARING | XJ | |
||
| 126 | 574119-00 | 1 | GEARCASE COVER | XJ | |
||
| 127 | 393576-00 | 1 | RING | XJ | |
||
| 128 | 944675-00 | 1 | GUARD | XJ | |
||
| 129 | 605415-00 | 1 | RETAINING PLATE | XJ | |
||
| 130 | 562160-00 | 3 | SCREW | XJ | |
||
| 133 | 573115-00 | 1 | SIDE HANDLE | XJ | |
||
| 134 | 575625-02 | 1 | TRIGGER | XJ | |
||
| 135 | 574155-04 | 2 | LEADWIRE | XJ | |
||
| 137 | 572169-00 | 1 | LEVER LOCK-OFF | XJ | |
||
| 138 | 562097-13 | 2 | SCREW | XJ | |
||
| 139 | 573208-04 | 1 | HANDLE SA | XJ | |
||
| 140 | 572170-00 | 1 | BUTTON LOCK-ON | XJ | |
||
| 141 | 562204-00 | 2 | SPRING | XJ | |
||
| 142 | 562097-00 | 2 | SCREW | XJ | |
||
| 145 | 573211-01 | 1 | HOUSING | XJ | |
||
| 146 | 573058-00 | 1 | CORD PROTECTOR | XJ | |
||
| 147 | 562160-01 | 4 | SCREW | XJ | |||
| 148 | 949638-01 | 2 | BUFFER | XJ | |
||
| 150 | 562097-00 | 2 | SCREW | XJ | |
||
| 151 | 562097-05 | 2 | SCREW | XJ | |
||
| 152 | 930103-00 | 1 | CORD CLAMP | XJ | |
||
| 153 | 575460-00 | 1 | SCREW | XJ | |
||
| 154 | 575461-00 | 1 | SPRING | XJ | |
||
| 156 | 393799-00 | 1 | O RING | XJ | |
||
| 157 | 574113-00 | 1 | SPRING | XJ | |
||
| 158 | 391489-00 | 1 | GEAR | XJ | |
||
| 821 | 569036-00 | 1 | RATING PLATE | B&D Blank | XJ | |
|
| 900 | 560462-00 | 1 | SPANNER SPECIAL | XJ | |
