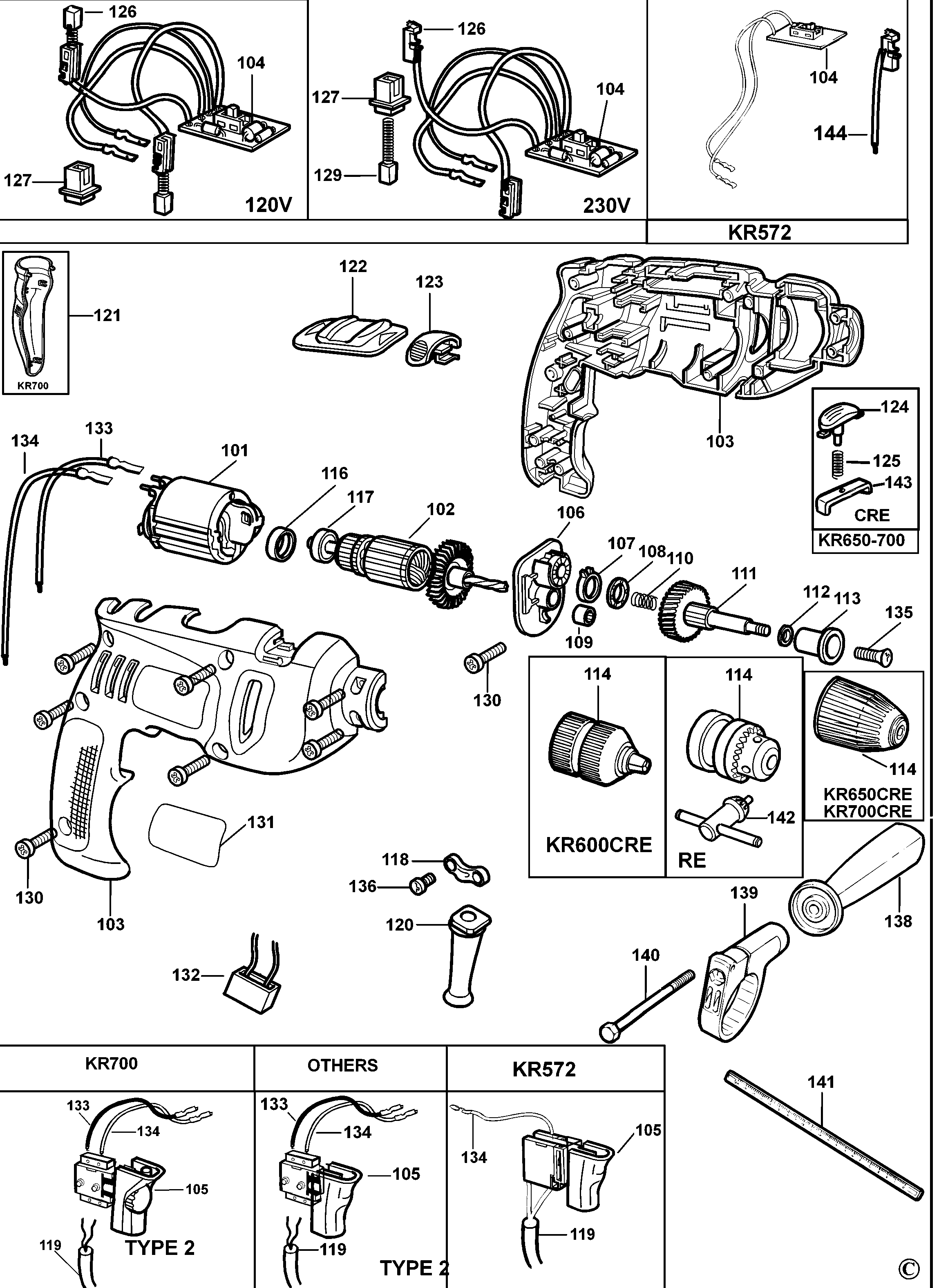

KR700RE DRILL Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376912-40 | 1 | FIELD SA | GB |  |
||
| 102 | 580813-02 | 1 | ARMATURE SA | GB | |
||
| 102 | N715255 | 1 | HOUSING | GB |  |
||
| 103 | 374275-11 | 1 | CLAMSHELL SET | GB | |
||
| 104 | 374217-01 | 1 | PCB SA | GB | |
||
| 104 | 377873-02 | 1 | CARTON | GB | |
||
| 105 | 375127-07 | 1 | SWITCH VARIABLE | GB | |
||
| 106 | 374216-01 | 1 | GEARCASE SA | GB | |
||
| 106 | 589366-00 | 1 | CARRIER | GB | |
||
| 107 | 374189-00 | 1 | SELECTOR | GB | |
||
| 107 | 942476-01 | 1 | SEGMENT | GB | |
||
| 108 | 892261 | 1 | BEARING | GB | |
||
| 108 | 329866-02 | 1 | RATING PLATE | GB | |
||
| 109 | 330004-18 | 1 | BEARING | GB | |
||
| 109 | 398578-01 | 1 | SIDE HANDLE | GB | |||
| 110 | 821986 | 1 | SPRING | GB | |
||
| 111 | 579634-04 | 1 | SPINDLE & GEAR SA | GB | |
||
| 112 | 374194-00 | 1 | WASHER THRUST | GB | |
||
| 112 | 6010038-32 | 1 | TUBE | HEAT SHRINK | GB | ||
| 113 | 374193-00 | 1 | BEARING | GB | |
||
| 113 | 942479-02 | 1 | HOUSING | GB | |
||
| 114 | 330033-23 | 1 | CHUCK 13MM | GB | |
||
| 114 | 1005755-00 | 1 | CORDSET | GB | |||
| 116 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 116 | 559886-00 | 1 | SCREW | GB | |
||
| 117 | 330003-02 | 1 | BEARING | GB | |
||
| 117 | 1003404-00 | 1 | CORDSET | GB | |||
| 118 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 118 | 582319-34 | 1 | CORDSET | GB | |
||
| 119 | 330060-53 | 1 | CORDSET | GB | |
||
| 119 | 488213-00 | 1 | CLAMSHELL SET | GB | |
||
| 120 | 770236 | 1 | PROTECTOR | GB | |
||
| 120 | 1006575-00 | 1 | COVER-TOP | GB | |
||
| 121 | 374278-01 | 1 | GRIP | GB | |
||
| 121 | 583484-00 | 1 | CLAMSHELL SET | GB | |||
| 122 | 374218-01 | 1 | ACTUATOR | GB | |
||
| 122 | 325371-04 | 1 | COVER | GB | |
||
| 123 | 374226-00 | 1 | ACTUATOR | GB | |
||
| 123 | 6010080-35 | 1 | FUSE | THERMAL FUSE 230V | GB | ||
| 127 | 875735 | 2 | INSERT | GB | |
||
| 127 | N045773 | 2 | RATING PLATE | GB | |
||
| 129 | 570544-00 | 2 | BRUSH & SPRING | GB | |
||
| 129 | 90640895 | 2 | BRUSH & LEAD | GB | |
||
| 130 | 809961 | 11 | SCREW | GB | |
||
| 130 | 90531369 | 11 | CHUCK KEYLESS | GB | |||
| 131 | 579627-00 | 1 | BRAND LABEL | GB | |
||
| 131 | 1004539-00 | 1 | LOCK SA | GB | |
||
| 132 | 807745 | 1 | CAPACITOR | GB | |
||
| 132 | 1002441-00 | 1 | SUPPORT PLATE | GB | |||
| 133 | 573030-00 | 1 | LEAD RED | GB | |
||
| 133 | N744573 | 1 | POLE PIECE | UPPER | GB | |
|
| 134 | 573030-01 | 1 | LEAD BLACK | GB | |
||
| 134 | 6010018-24 | 1 | BOARD | WIRE-PRESS BOARD | GB | ||
| 135 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 135 | N044664 | 1 | RATING PLATE | GB | |
||
| 136 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 138 | 376555-05 | 1 | HANDLE & CAP SA | GB | |
||
| 138 | 324687-05 | 1 | COVER | GB | |
||
| 139 | 376552-03 | 1 | CLAMP | GB | |
||
| 139 | 324617-11 | 1 | COVER | Yellow | GB | |
|
| 140 | 813918 | 1 | SCREW | GB | |
||
| 140 | 559868-00 | 1 | MOTOR SA | GB | |
||
| 141 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 141 | 944671-03 | 1 | END CAP | GB | |||
| 142 | 330034-07 | 1 | CHUCK KEY | GB | |
||
| 142 | 494040-01 | 1 | BRUSH PAIR 115V | GB | |
