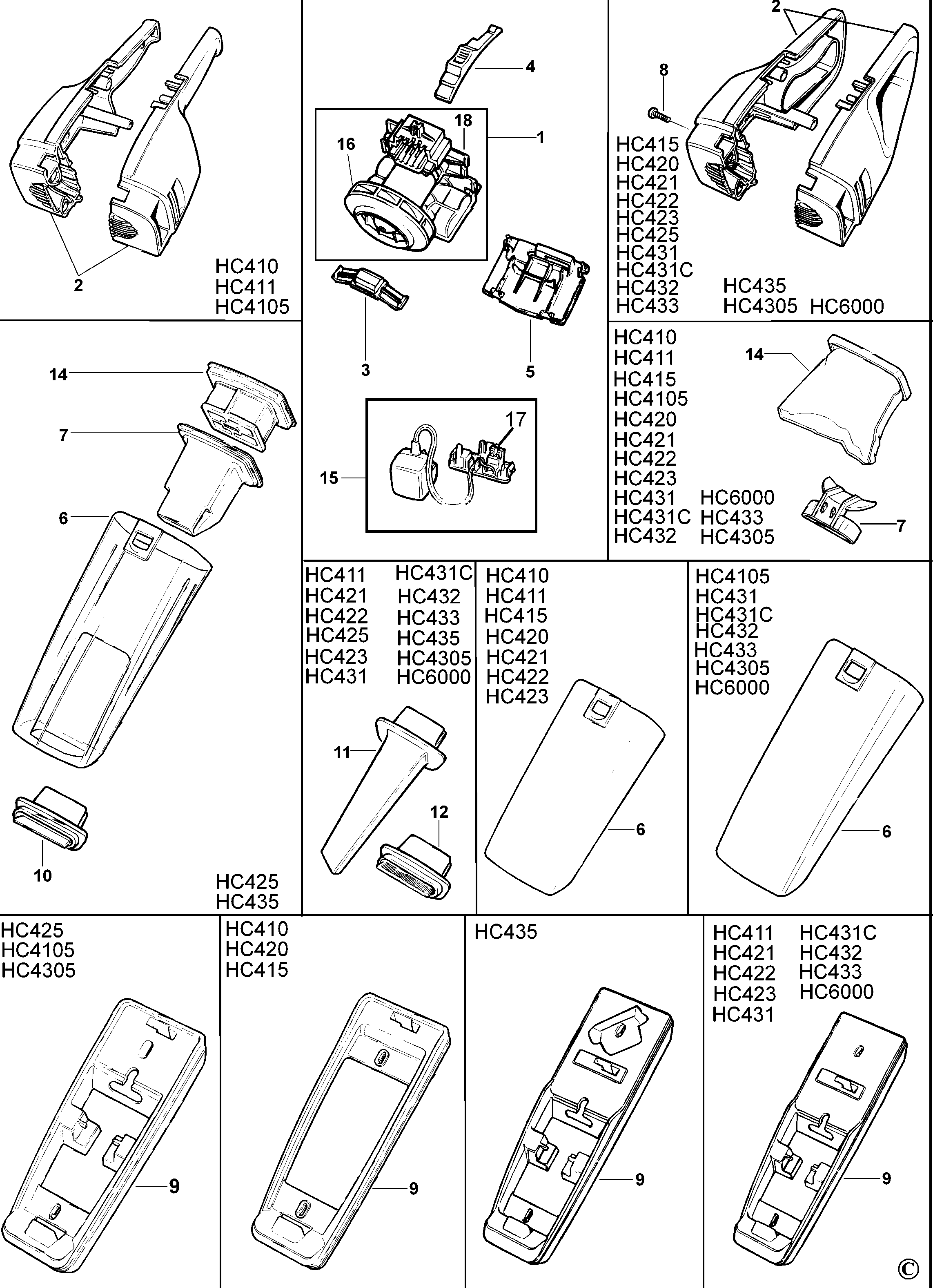

HC435 DUSTBUSTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | HC435 NL-NO-PT-SE | XJ |  |
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | HC435 FR-GR-IT-LU | XJ | |
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | HC435 AA-AT-BE-CH | XJ | |
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | HC435 DE-DK-ES-FI | XJ | |
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | HC435 ZA | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 GB | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 NL-NO-PT-SE | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 AA-AT-BE-CH | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 DE-DK-ES-FI | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 FR-GR-IT-LU | XJ | |
| 1 | 796819-03 | 1 | BATTERY & MOTOR SA | 3.6V NiCd | HC425 KR-SG-ZA | XJ | |
| 2 | 498890-10 | 1 | HANDLE SA | XJ | |
||
| 3 | 796728 | 1 | LATCH | XJ | |
||
| 4 | 809201-02 | 1 | ACTUATOR | HC435 | XJ | |
|
| 4 | 809201-01 | 1 | ACTUATOR | HC425 | XJ | |
|
| 5 | 375781-04 | 1 | DOOR | HC435 | XJ | ||
| 5 | 375781-02 | 1 | DOOR | HC425 | XJ | |
|
| 6 | 796720-11 | 1 | NOSE | XJ | |
||
| 7 | 796796-00 | 1 | FILTER SA | XJ | |
||
| 8 | 733886 | 5 | SCREW | XJ | |
||
| 9 | 796752 | 1 | BASE | HC425 | XJ | |
|
| 9 | 796786 | 1 | BASE | HC435 | XJ | |
|
| 10 | 796749-01 | 1 | TOOL SQUEEGEE | XJ | |
||
| 11 | 171745-10 | 1 | TOOL CREVICE | HC425 | XJ | |
|
| 11 | 171745-10 | 1 | TOOL CREVICE | HC435 | XJ | |
|
| 12 | 798785-02 | 1 | BRUSH | HC435 | XJ | |
|
| 14 | 796796-00 | 1 | FILTER SA | XJ | |
||
| 15 | 573421-16 | 1 | CHARGER SA | HC425 NL-NO-PT-SE | XJ | |
|
| 15 | 573421-16 | 1 | CHARGER SA | HC425 AA-AT-BE-CH | XJ | |
|
| 15 | 573421-16 | 1 | CHARGER SA | HC425 DE-DK-ES-FI | XJ | |
|
| 15 | 573421-16 | 1 | CHARGER SA | HC425 FR-GR-IT-LU | XJ | |
|
| 15 | 573421-16 | 1 | CHARGER SA | HC425 KR-SG-ZA | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC435 FR-GR-IT-LU | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC435 AA-AT-BE-CH | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC435 DE-DK-ES-FI | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC435 ZA | XJ | |
|
| 15 | 573421-12 | 1 | CHARGER & BASE | HC425 GB | XJ | |
|
| 16 | 499887-00 | 1 | FAN | XJ | |
||
| 17 | 807918-03 | 1 | CONTACT SA | HC435 | XJ | |
|
| 17 | 807918-01 | 1 | CONTACT SA | HC425 | XJ | |
|
| 18 | 809193 | 1 | SWITCH | HC435 | XJ | |
|
| 18 | 369119 | 1 | SWITCH | HC425 | XJ | |
