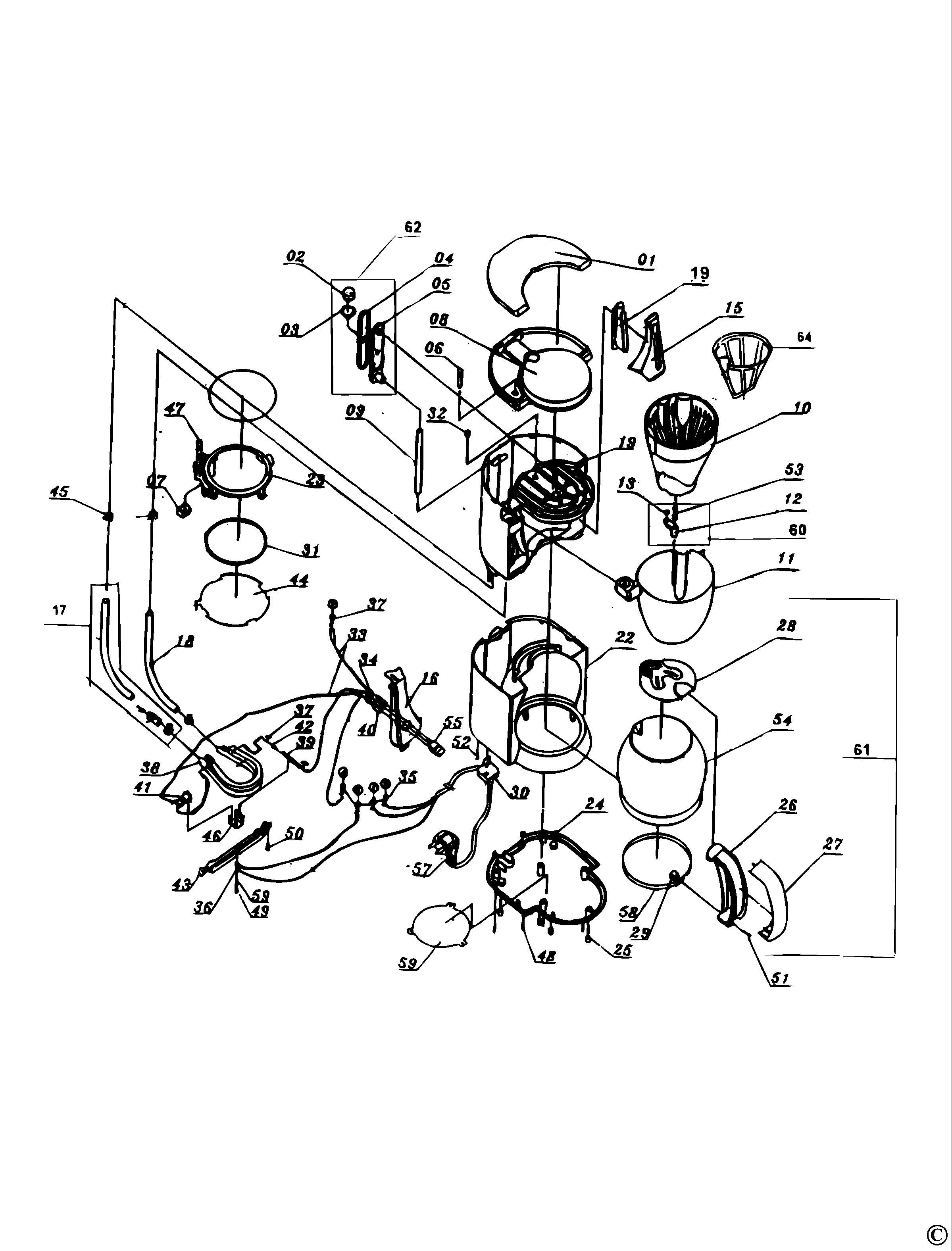

DCM75 COFFEEMAKER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010009-02 | 1 | COVER-TOP | DCM75W-1 | XJ | ||
| 1 | 6010009-01 | 1 | COVER-TOP | DCM75B-1 | XJ | ||
| 2 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 6010009-06 | 1 | PIN | FUNNEL HINGE PIN | DCM75W-6 | XJ | |
| 6 | 6010009-05 | 1 | PIN | FUNNEL HINGE PIN | DCM75B-6 | XJ | |
| 7 | 6010009-07 | 1 | SUPPORT | WARMING PLATE SUPPOR | DCM75-7 | XJ | |
| 8 | 6010009-08 | 1 | BRACKET | COVER | DCM75B-8 | XJ | |
| 8 | 6010009-63 | 1 | BRACKET | COVER | DCM75W-8 | XJ | |
| 9 | 6010009-09 | 1 | TUBE | RISER TUBE | DCM75-9 | XJ | |
| 10 | 6010009-64 | 1 | HOLDER | FILTER HOLDER,INNER | DCM75B-10 | XJ | |
| 10 | 6010009-10 | 1 | HOLDER | FILTER HOLDER,INNER | DCM75W-10 | XJ | |
| 11 | 6010009-65 | 1 | HOLDER | FILTER HOLDER,OUTER | DCM75B-11 | XJ | |
| 11 | 6010009-11 | 1 | HOLDER | FILTER HOLDER,OUTER | DCM75W-11 | XJ | |
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 13 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 15 | 6010009-66 | 1 | PANEL RH | DCM75B-15 | XJ | ||
| 15 | 6010009-15 | 1 | PANEL RH | DCM75W-15 | XJ | ||
| 16 | 6010009-67 | 1 | PANEL LH | DCM75B-16 | XJ | ||
| 16 | 6010009-16 | 1 | PANEL LH | DCM75W-16 | XJ | ||
| 17 | 6010009-17 | 1 | TUBE SA | TUBE WITH CHECK VALV | DCM75-17 | XJ | |
| 18 | 6010009-18 | 1 | COUPLING | DCM75-18 | XJ |  |
|
| 19 | 6010009-68 | 1 | HOUSING UPPER | DCM75W-19 | XJ | ||
| 19 | 6010009-19 | 1 | HOUSING UPPER | DCM75B-19 | XJ | ||
| 22 | 6010009-69 | 1 | HOUSING LOWER | DCM75W-22 | XJ | ||
| 22 | 6010009-22 | 1 | HOUSING LOWER | DCM75B-22 | XJ | ||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 24 | 6010009-24 | 1 | COVER | BASE COVER | DCM75B-24 | XJ | |
| 24 | 6010009-70 | 1 | COVER | BASE COVER | DCM75W-24 | XJ | |
| 25 | 6010008-25 | 1 | FOOT | RUBBER | DCM55-25 | XJ | |
| 26 | 6010009-71 | 1 | HANDLE COVER | COVER HANDLE | DCM75B-26 | XJ | |
| 26 | 6010009-26 | 1 | HANDLE COVER | COVER HANDLE | DCM75W-26 | XJ | |
| 27 | 6010009-72 | 1 | HANDLE COVER | DCM75B-27 | XJ | ||
| 27 | 6010009-27 | 1 | HANDLE COVER | DCM75W-27 | XJ | ||
| 28 | 6010009-28 | 1 | COVER | CARAFE COVER | DCM75-28W | XJ | |
| 28 | 6010009-73 | 1 | COVER | CARAFE COVER | DCM75-28B | XJ | |
| 29 | 6010009-74 | 1 | NUT | HANDLE NUT | DCM75W-29 | XJ | |
| 29 | 6010009-29 | 1 | NUT | HANDLE NUT | DCM75B-29 | XJ | |
| 30 | 6010008-21 | 1 | SUPPORT | CORD SUPPORT | DCM55-21 | XJ | |
| 31 | 6010009-31 | 1 | SEAL | SEAL RING | DCM75-31 | XJ | |
| 32 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 33 | 6010009-33 | 1 | LEADWIRE | DCM75-33 | XJ | ||
| 34 | 6010009-34 | 1 | RECEPTACLE | RECEPTACLE,187 | DCM75-34 | XJ | |
| 35 | 6010009-35 | 1 | RECEPTACLE | RECEPTACLE,250 | DCM75-35 | XJ | |
| 36 | 6010009-36 | 1 | RECEPTACLE | RECEPTACLE 750 | DCM75-36 | XJ | |
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 38 | 6010009-38 | 1 | HEATER SA | HEATER ASS'Y 230V | DCM75-38 | XJ | |
| 39 | 6010009-39 | 1 | SLEEVE | FUSE SLEEVING | DCM75-39 | XJ | |
| 40 | 6010009-40 | 1 | SLEEVE | FIBRE GLASS SLEEVING | DCM75-40 | XJ | |
| 41 | 6010008-35 | 1 | THERMOSTAT | DCM55-35 | XJ | |
|
| 42 | 6010009-42 | 1 | FUSE | DCM75-42 | XJ | ||
| 43 | 6010009-43 | 1 | BRACKET | HEATER | DCM75-43 | XJ | |
| 44 | 6010009-44 | 1 | PLATE | WARMING PLATE | DCM75-44 | XJ | |
| 45 | 6010008-51 | 1 | CLAMP | HOSE CLAMP | DCM55-51 | XJ | |
| 46 | 6010008-34 | 1 | BRACKET | THERMOSTAT | DCM55-34 | XJ | |
| 47 | 6010009-47 | 1 | PLATE | BRASS PLATE | DCM75-47 | XJ | |
| 48 | 6010009-48 | 1 | SCREW | DCM75-48 | XJ | ||
| 49 | 6010009-49 | 1 | SCREW | DCM75-49 | XJ | ||
| 50 | 6010009-50 | 1 | SCREW | DCM75-50 | XJ | ||
| 51 | 6010009-51 | 1 | SCREW | DCM75-51 | XJ | ||
| 52 | 6010009-52 | 1 | SCREW | DCM75-52 | XJ | ||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 54 | 6010009-54 | 1 | CARAFE | DCM75-54 | XJ | |
|
| 55 | 6010009-55 | 1 | SWITCH | ROCKER SWITCH | DCM55-53 | XJ | |
| 57 | 6010008-83 | 1 | CORDSET | DCM55B-56 | XJ | ||
| 57 | 6010008-56 | 1 | CORDSET | DCM55W-56 | XJ | ||
| 58 | 6010009-58 | 1 | BAND | METAL BAND | DCM75-58 | XJ | |
| 59 | 6010009-59 | 1 | WASHER | DCM75-59 | XJ | ||
| 59 | 6010009-76 | 1 | PLATE | METAL PLATE | DCM75-59P | XJ | |
| 60 | 6010009-60 | 1 | VALVE | ANTI-DRIP VALVE ASSY | DCM75-60B | XJ | |
| 61 | 6010009-77 | 1 | CARAFE | DCM75B-61 | XJ | |
|
| 61 | 6010009-61 | 1 | CARAFE | DCM75W-61 | XJ | |
|
| 62 | 6010009-62 | 1 | SELECTOR | AROMA SELECT DIAL | DCM75B-62 | XJ | |
| 62 | 6010009-78 | 1 | SELECTOR | AROMA SELECT DIAL | DCM75W-62 | XJ | |
| 64 | 6010009-80 | 1 | FILTER | DCM75W-64 | XJ | ||
| 64 | 6010009-79 | 1 | FILTER | DCM75B-64 | XJ | |
