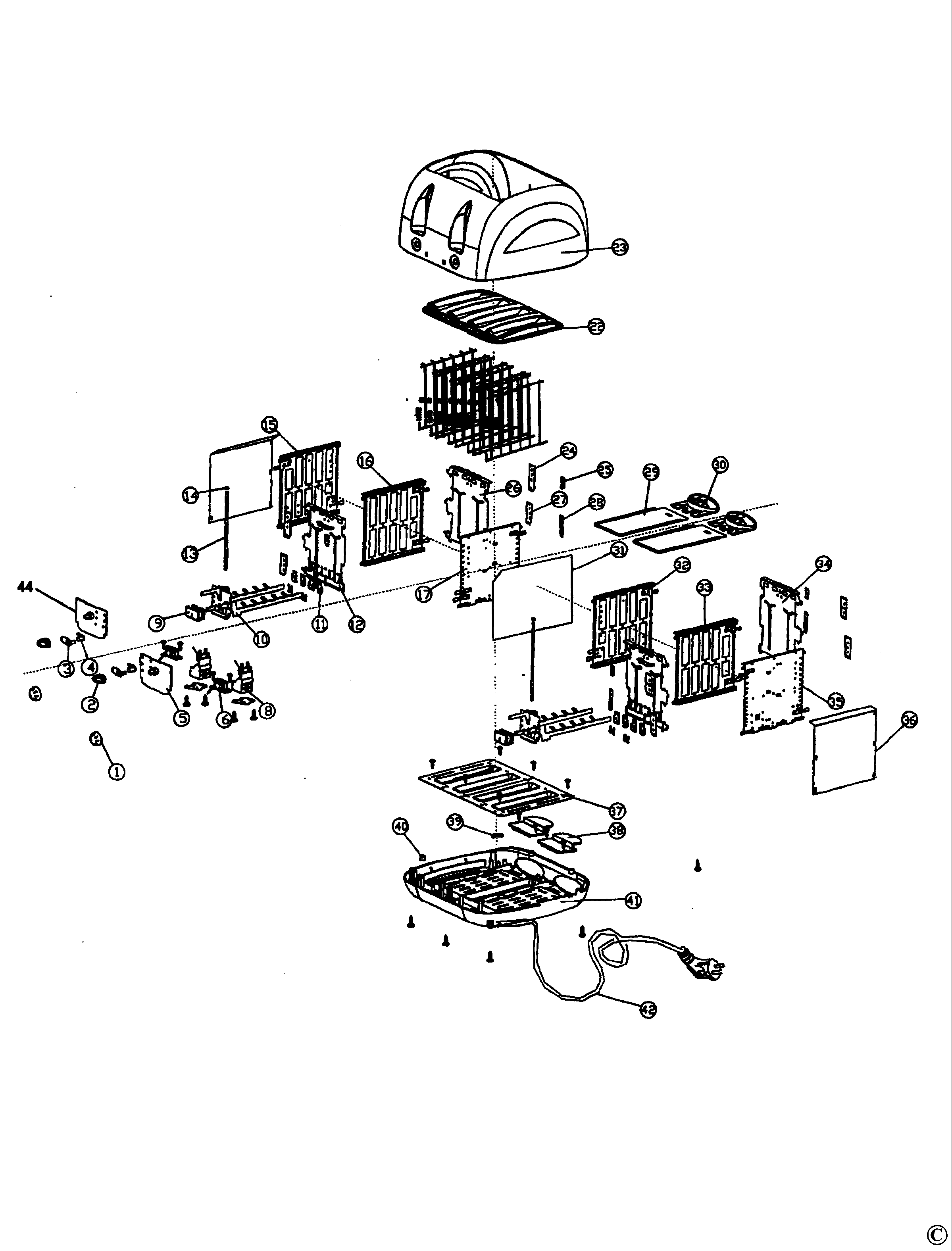

ET80 TOASTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010020-01 | 1 | KNOB | ET80-1 | XJ | ||
| 2 | 6010020-02 | 1 | HANDLE | ET80-2 | XJ | ||
| 3 | 6010020-03 | 1 | KEY | FUNCTION KEY | ET80-3 | XJ | |
| 4 | 6010020-04 | 1 | KEY | FUNCTION KEY | ET80-4 | XJ | |
| 5 | 6010020-05 | 1 | PCB | ET80-5 | XJ | ||
| 6 | 6010020-06 | 1 | RELAY | 230V | ET80-6 | XJ |  |
| 8 | 6010020-08 | 1 | SWITCH | TWO-POLE SWITCH | ET80-8 | XJ | |
| 9 | 6010020-09 | 1 | SUCTION GROUP | SUCTION PIECE | ET80-9 | XJ | |
| 10 | 6010020-10 | 1 | ELEVATING SA | LIFT PIECE | ET80-10 | XJ | |
| 11 | 6010020-11 | 1 | HOLDER | NET NIP FIXER | ET80-11 | XJ | |
| 12 | 6010020-12 | 1 | PLATE | HOLE IRON SIDE PLATE | ET80-12 | XJ | |
| 13 | 6010020-13 | 1 | AXIS | ET80-13 | XJ | ||
| 14 | 6010020-14 | 1 | SPRING | ET80-14 | XJ | ||
| 15 | 6010020-15 | 1 | ELEMENT | 230V | ET80-15 | XJ | |
| 16 | 6010020-16 | 1 | ELEMENT | 230V | ET80-16 | XJ | |
| 17 | 6010020-17 | 1 | ELEMENT | 230V | ET80-17 | XJ | |
| 22 | 6010020-22 | 1 | PLATE | SURFACE PLATE | ET80-22 | XJ | |
| 23 | 6010020-23 | 1 | HOUSING | HOUSING BODY | ET80-23 | XJ | |
| 24 | 6010020-24 | 1 | PLATE | MICA | ET80-24 | XJ | |
| 25 | 6010020-25 | 1 | PLATE | MICA | ET80-25 | XJ | |
| 26 | 6010020-26 | 1 | PLATE | IRON SIDE PLATE | ET80-26 | XJ | |
| 27 | 6010020-27 | 1 | PLATE | MICA | ET80-27 | XJ | |
| 28 | 6010020-28 | 1 | PLATE | MICA | ET80-28 | XJ | |
| 29 | 6010020-29 | 1 | TRAY | CRUMB TRAY | ET80-29 | XJ | |
| 30 | 6010020-30 | 1 | HANDLE | CRUMB TRAY HANDLE | ET80-30 | XJ | |
| 31 | 6010020-31 | 1 | PLATE | BIG MICA ISOLATE PLA | ET80-31 | XJ | |
| 32 | 6010020-32 | 1 | ELEMENT SA | 230V | ET80-32 | XJ | |
| 33 | 6010020-33 | 1 | ELEMENT SA | 230V | ET80-33 | XJ | |
| 34 | 6010020-34 | 1 | PLATE | SIDE PLATE | ET80-34 | XJ | |
| 35 | 6010020-35 | 1 | ELEMENT SA | 230V | ET80-35 | XJ | |
| 36 | 6010020-36 | 1 | PLATE | HEAT-PROOF SIDE PLAT | ET80-36 | XJ | |
| 37 | 6010020-37 | 1 | PLATE | IRON BOTTOM PLATE | ET80-37 | XJ | |
| 38 | 6010020-38 | 1 | PLATE | SHELVES | ET80-38 | XJ | |
| 39 | 6010020-39 | 1 | COVER | WIRE-PRESS COVER | ET80-39 | XJ | |
| 40 | 6010020-40 | 1 | BASE | HEAT-PROOF PIECE | ET80-40 | XJ | |
| 41 | 6010020-41 | 1 | BASE | PLASTIC BOTTOM | ET80-41 | XJ | |
| 42 | 6010020-42 | 1 | WIRE | 230V | ET80-42 | XJ | |
| 44 | 6010020-44 | 1 | PCB | ET80-44 | XJ | |
