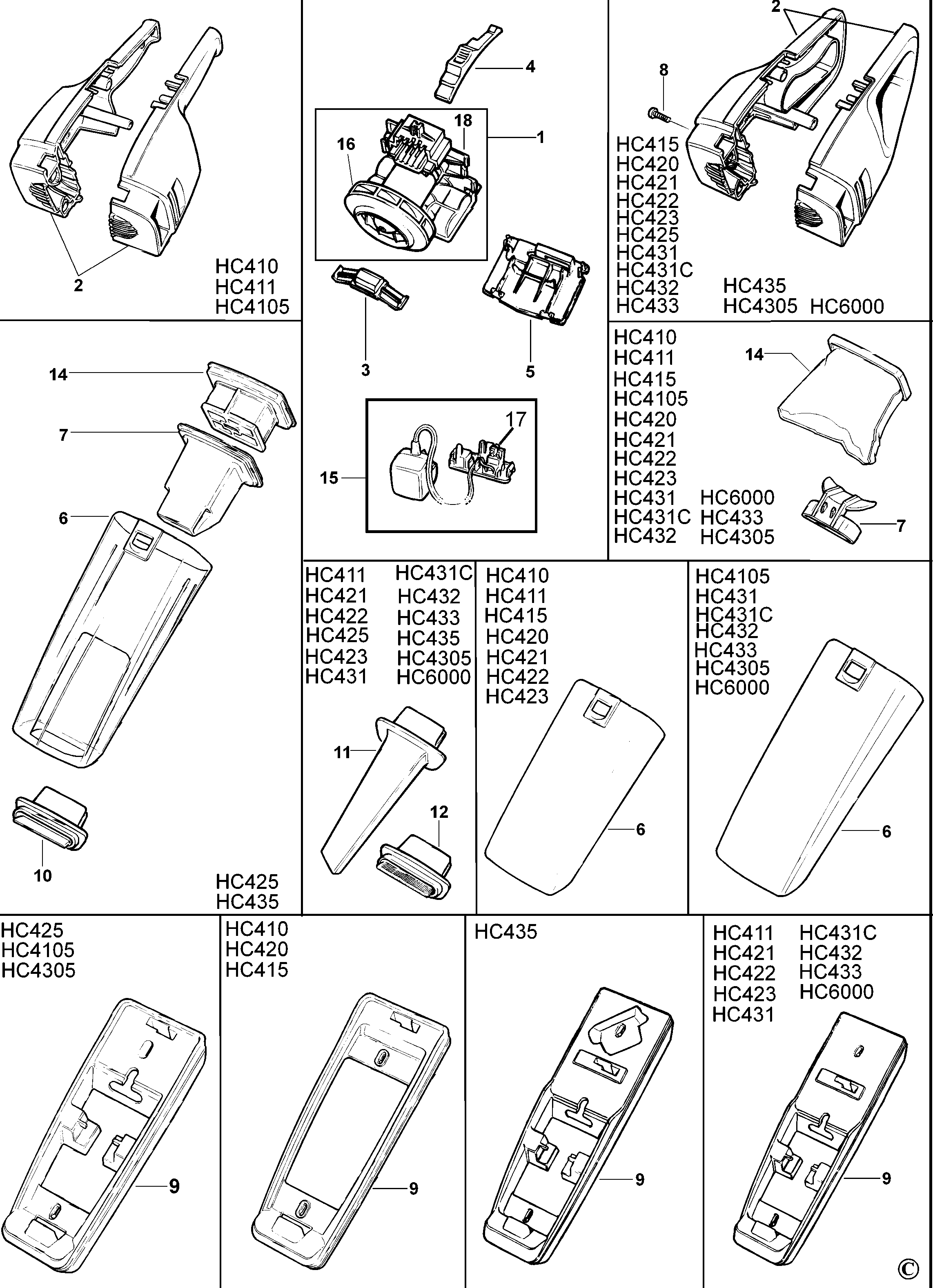

HC415 DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5100300-00 | 1 | BATTERY & MOTOR SA | GB |  |
||
| 2 | 498890-10 | 1 | HANDLE SA | GB | |
||
| 2 | 559566-99 | 2 | SERVICE TOOL | GB | |
||
| 3 | 796728-08 | 1 | LATCH | Blue | GB | |
|
| 4 | 809201-08 | 1 | ACTUATOR | GB | |
||
| 4 | 375430 | 1 | BUTTON LOCK-OFF | GB | |
||
| 5 | 375781-14 | 1 | DOOR | GB | |
||
| 6 | 796781-06 | 1 | BOWL | GB | |
||
| 6 | 279794-00 | 4 | SWITCHBOX & CABLE | GB | |
||
| 7 | 172330-00 | 1 | DEFLECTOR | GB | |
||
| 7 | 279759-00 | 3 | SPANNER 642870 | GB | |
||
| 8 | 733886 | 5 | SCREW | GB | |
||
| 8 | 279750-00 | 1 | COVER 345060 | GB | |
||
| 9 | 796750-02 | 1 | BASE | GB | |
||
| 9 | 559780-00 | 1 | INSERT 6.35MM | GB | |
||
| 10 | 157118902 | 2 | STONE | GB | |
||
| 11 | 279755-00 | 2 | IMPELLOR 442840 | GB | |
||
| 12 | 279800-00 | 2 | COTTER PIN | GB | |
||
| 14 | 798530-00 | 1 | FILTER | GB | |
||
| 14 | 279802-00 | 1 | NUT | GB | |
||
| 15 | 377629-17 | 1 | CHARGER SA | QW | GB | |
|
| 15 | 498884-29 | 1 | CHARGER & BASE | GB | |
||
| 15 | 279803-00 | 1 | HEX KEY 3 MM | GB | |
||
| 16 | 499887-00 | 1 | FAN | GB | |
||
| 16 | 322121 | 8 | SCREW | GB | |
||
| 17 | 377707-00 | 1 | CONTACT SA | GB | |
||
| 17 | 322287 | 4 | TUBE | GB | |
||
| 18 | 369119-01 | 1 | SWITCH | GB | |
||
| 18 | 323259 | 1 | SCREW | GB | |
||
| 19 | 323295-49 | 1 | HOUSING SA | GB | |
||
| 20 | 568689-00 | 1 | WASHER | GB | |
||
| 21 | 577417-01 | 4 | CHARGER SA | 24V | GB | |
|
| 22 | 560289-00 | 4 | FENCE | GB | |||
| 24 | 279793-00 | 1 | WARNING LABEL | GB | |
||
| 27 | 559563-99 | 1 | S.T.ASSEMBLY JIG | GB | |
||
| 28 | 559564-99 | 1 | SERVICE TOOL | GB | |
||
| 29 | 330080-09 | 1 | CORDSET | GB | |||
| 30 | 279724-00 | 2 | SWITCH SA 209430 | GB | |
||
| 31 | 560135-00 | 1 | MOTOR SA | GB | |
||
| 32 | 375416 | 1 | WASHER | GB | |
||
| 33 | 375417 | 4 | WASHER | GB | |
||
| 34 | 559569-99 | 1 | SOCKET | GB | |
||
| 35 | 279792-00 | 1 | MOTOR SA | GB | |
||
| 37 | 375449 | 2 | STRAP | GB | |
||
| 38 | 375453 | 2 | ROD | GB | |
||
| 39 | 568862-00 | 2 | BRAND LABEL | TFG | GB | |
|
| 40 | 577014-00 | 2 | AXLE FRONT | GB | |
||
| 41 | 576697-00 | 3 | RACK | GB | |
||
| 42 | 368028 | 2 | WASHER PLASTIC | GB | |
||
| 43 | 370572 | 1 | BLADE | Pack x 10 | GB | |
|
| 45 | 368901 | 1 | BLADE 12" | GB | |
||
| 46 | 368698-01 | 1 | IMPELLOR | GB | |
||
| 47 | 376949 | 1 | BRUSH SA | GB | |
||
| 48 | 375906 | 1 | CONTACT | GB | |
||
| 50 | 279791-00 | 2 | CAP | GB | |
||
| 51 | 568051-00 | 2 | WASHER | GB | |
||
| 52 | 151237700 | 1 | GUIDE | GB | |
||
| 53 | 6010027-43 | 1 | DISC | SLICING DISC THICK | GB | |
|
| 54 | 328512-49 | 1 | ARMATURE 120V | GB | |
||
| 55 | 569074-00 | 1 | SHAFT | Blender Shaft | GB | |
|
| 56 | 325029-00 | 1 | SPINDLE SA | GB | |||
| 57 | 140152300 | 1 | BUSH | GB | |
||
| 58 | 1003297-00 | 2 | SWITCH | GB | |||
| 59 | 326553-01 | 1 | LOCKING RING | GB | |
||
| 60 | 90531369 | 6 | CHUCK KEYLESS | GB | |||
| 61 | 822444 | 1 | FAN SA | GB | |
||
| 62 | 279707-00 | 1 | SCREW | GB | |
||
| 63 | 809868 | 1 | BRAND LABEL | GB | |
||
| 64 | 252753 | 2 | SCREW | GB | |||
| 65 | 279706-00 | 1 | WASHER | GB | |
||
| 66 | 279746-00 | 1 | SPACER 340060 | GB | |
