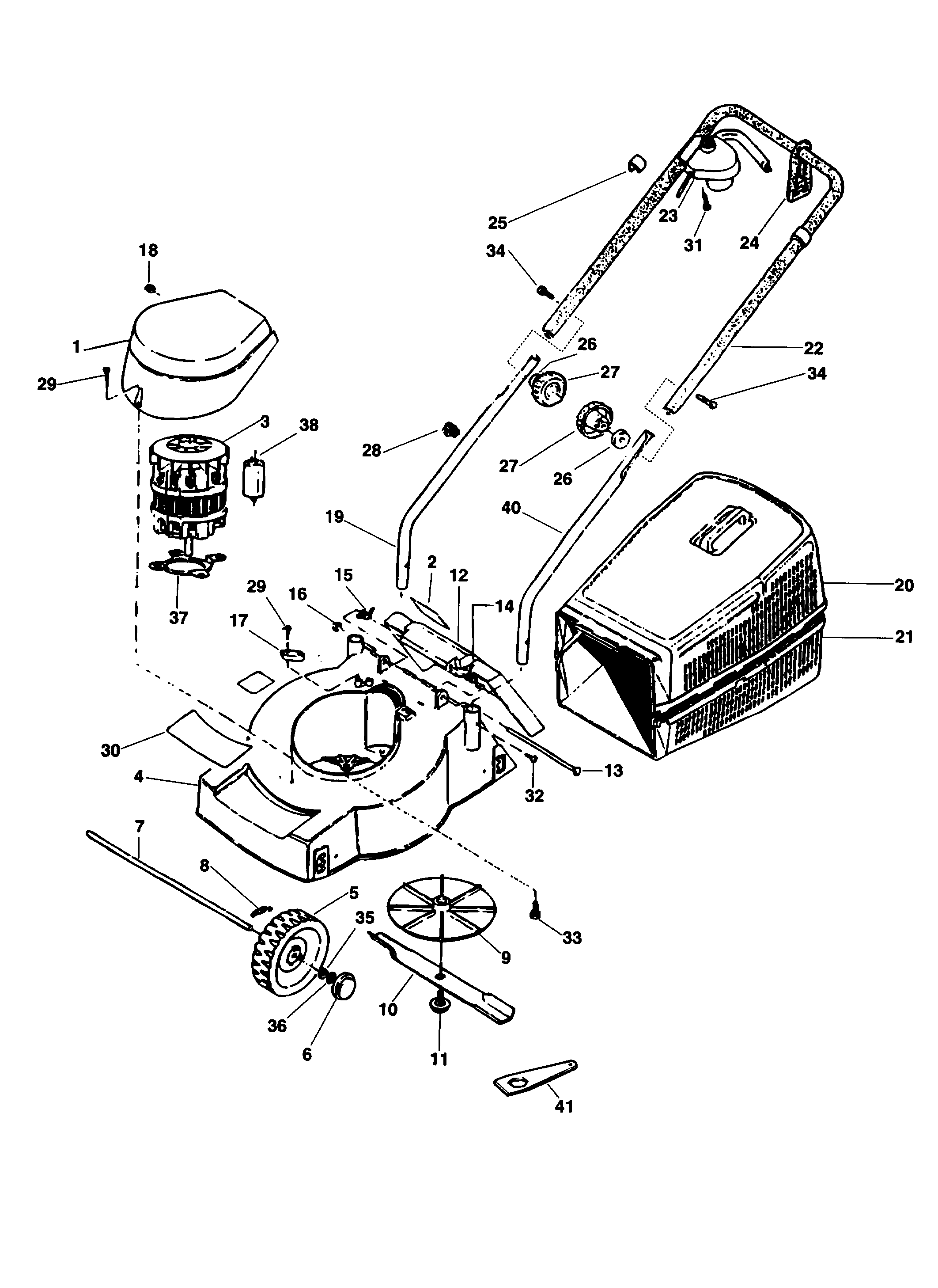

GR233 MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 567764-00 | 1 | MOTOR HOUSING SA | XJ |  |
||
| 2 | 567765-00 | 1 | WARNING LABEL | XJ | |
||
| 3 | 567766-00 | 1 | MOTOR | XJ | |
||
| 4 | 569273-00 | 1 | CUTTER COVER | XJ | |
||
| 5 | 567768-00 | 4 | WHEEL | XJ | |
||
| 6 | 567769-00 | 4 | CAP | XJ | |
||
| 7 | 567770-00 | 2 | AXLE WHEEL | XJ | |
||
| 8 | 567771-00 | 4 | SPRING | XJ | |
||
| 9 | 567772-00 | 1 | IMPELLOR | XJ | |
||
| 10 | 567773-00 | 1 | BLADE | XJ | |
||
| 11 | 567774-00 | 1 | BOLT | XJ | |
||
| 12 | 567775-00 | 1 | GRASSFLAP | XJ | |
||
| 13 | 567776-00 | 1 | AXLE | XJ | |
||
| 14 | 567777-00 | 1 | SPRING LH | XJ | |
||
| 15 | 567778-00 | 1 | SPRING RH | XJ | |
||
| 16 | 567779-00 | 2 | LOCK | XJ | |
||
| 17 | 567780-00 | 1 | BLOCK | XJ | |
||
| 18 | 567781-00 | 1 | GROMMET | XJ | |
||
| 19 | 567782-00 | 1 | LOWER HANDLE | XJ | |
||
| 20 | 567783-00 | 1 | GRASSBOX | XJ | |
||
| 21 | 567784-00 | 1 | GRASSBOX | XJ | |
||
| 22 | 567785-00 | 1 | HANDLE UPPER | XJ | |
||
| 23 | 559792-00 | 1 | SWITCH SA | XJ | |
||
| 24 | 559799-00 | 1 | RETAINER | XJ | |
||
| 25 | 567788-00 | 2 | CABLE CLAMP | XJ | |
||
| 26 | 567789-00 | 2 | WASHER | XJ | |
||
| 27 | 567790-00 | 2 | KNOB | XJ | |
||
| 29 | 567792-00 | 1 | SCREW | XJ | |
||
| 30 | 567793-00 | 1 | BRAND LABEL | XJ | |
||
| 31 | 567794-00 | 2 | SCREW | XJ | |
||
| 32 | 567795-00 | 2 | SCREW | XJ | |
||
| 33 | 567796-00 | 4 | BOLT | XJ | |
||
| 34 | 567797-00 | 2 | BOLT | XJ | |
||
| 35 | 567798-00 | 4 | WASHER | XJ | |
||
| 36 | 567799-00 | 4 | WASHER | XJ | |
||
| 37 | 567800-00 | 1 | RING | XJ | |
||
| 38 | 567791-00 | 1 | CAPACITOR | XJ | |
||
| 40 | 567817-00 | 1 | LOWER HANDLE | XJ | |
||
| 41 | 568270-00 | 1 | SPANNER | XJ | |
