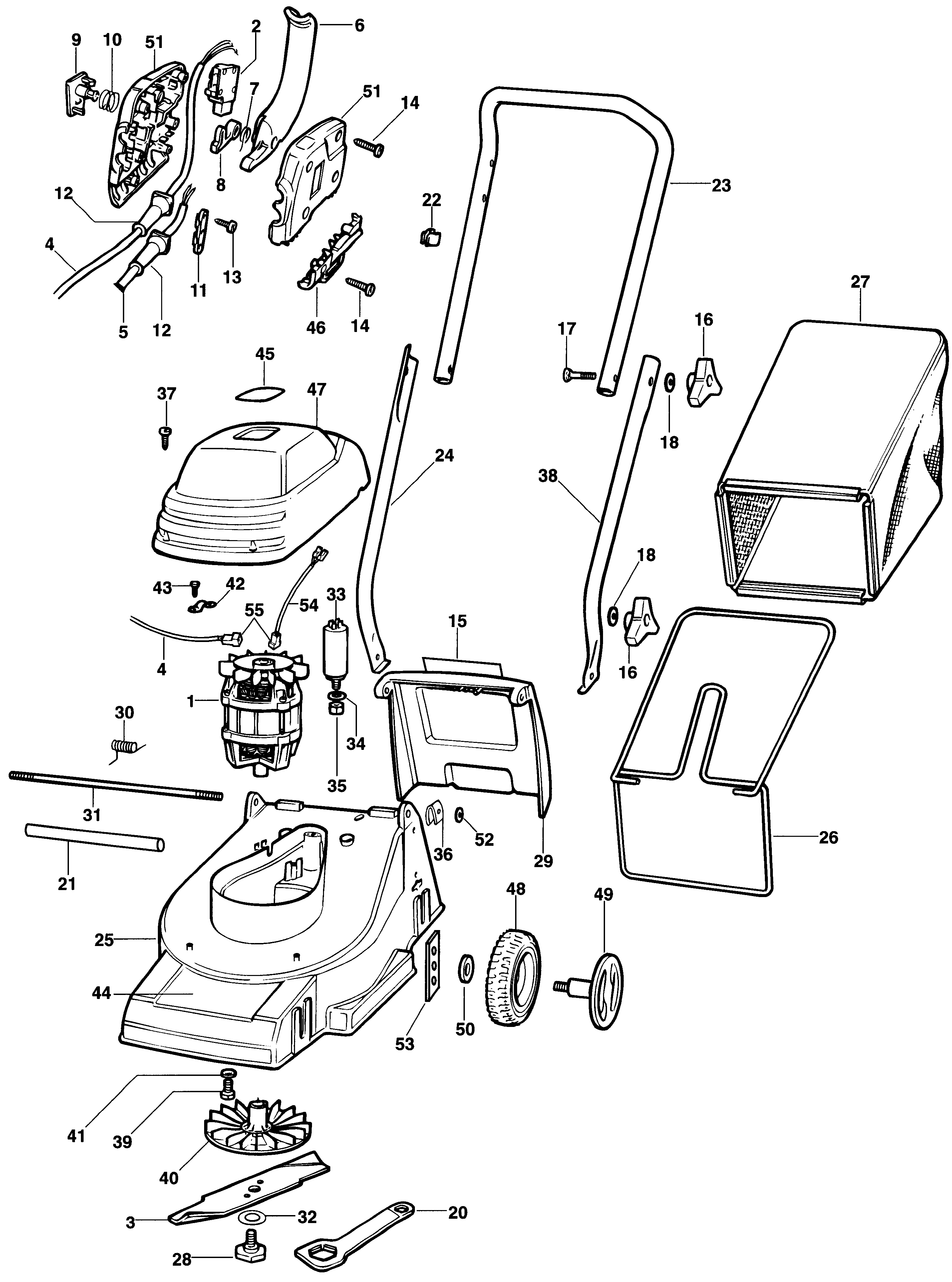

GR230 ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 374031-03 | 1 | MOTOR | GB |  |
||
| 2 | 794164 | 1 | SWITCH | GB | |
||
| 3 | 809474 | 1 | BLADE 12" | GB | |
||
| 4 | 805414-04 | 1 | CABLE SA | GB | |
||
| 5 | 799370-11 | 1 | CABLE 16 METRE | GB | |
||
| 6 | 373094 | 1 | LEVER | GB | |
||
| 7 | 827135 | 1 | SPRING | GB | |
||
| 8 | 797929 | 1 | ACTUATOR | GB | |
||
| 9 | 373092 | 1 | BUTTON LOCK-OFF | GB | |
||
| 10 | 827137 | 1 | SPRING | GB | |
||
| 11 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 12 | 770235 | 2 | PROTECTOR | GB |  |
||
| 13 | 810269 | 3 | SCREW | GB | |
||
| 14 | 849256 | 6 | SCREW | GB | |
||
| 15 | 376079-01 | 1 | WARNING LABEL | GB | |
||
| 16 | 830657 | 4 | NUT WING | GB | |
||
| 17 | 830664 | 2 | BOLT | GB | |
||
| 18 | 830832 | 4 | WASHER M6 | GB | |
||
| 20 | 844249 | 1 | SPANNER | GB | |
||
| 21 | 809471 | 1 | AXLE | GB | |
||
| 22 | 915859 | 1 | CLIP CABLE | GB | |||
| 23 | 809463 | 1 | HANDLE UPPER | GB | |
||
| 24 | 809422 | 1 | HANDLE RH | GB | |
||
| 25 | 809461 | 1 | CUTTER DECK | TYPE 1 & 2 | GB | |
|
| 25 | 376657 | 1 | CUTTER DECK | TYPE 3 | GB | |
|
| 26 | 809432 | 1 | FRAME | GB | |
||
| 27 | 809433 | 1 | GRASSBAG | GB | |
||
| 28 | 574858-00 | 1 | BOLT | GB | |
||
| 29 | 375310 | 1 | GRASSFLAP | GB | |
||
| 30 | 809428 | 1 | SPRING | GB | |
||
| 31 | 809429 | 1 | AXLE | GB | |
||
| 32 | 809466 | 1 | WASHER | GB | |
||
| 33 | 844250 | 1 | CAPACITOR | GB | |
||
| 34 | 796422 | 1 | WASHER | GB | |
||
| 35 | 723588 | 1 | NUT | GB | |
||
| 36 | 809469 | 2 | RETAINER | GB | |
||
| 37 | 747329 | 4 | SCREW | GB | |
||
| 38 | 809423 | 1 | HANDLE LH | GB | |
||
| 39 | 824606 | 4 | SCREW | GB | |
||
| 40 | 798331-03 | 1 | IMPELLOR | GB | |
||
| 41 | 369732 | 4 | WASHER | GB | |
||
| 42 | 821070 | 1 | CORD CLAMP | GB | |
||
| 43 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 44 | 373148-01 | 1 | BRAND LABEL | GB | |
||
| 45 | 373111-01 | 1 | LABEL | GB | |
||
| 46 | 799364 | 1 | PLATE | GB | |
||
| 47 | 375311 | 1 | MOTOR COVER | GB | |
||
| 48 | 809416 | 4 | WHEEL SA | GB | |
||
| 49 | 376422 | 4 | BOLT | GB | |
||
| 50 | 809456 | 4 | WASHER | TYPE 1 & 2 | GB | |
|
| 50 | 376421 | 4 | WASHER | TYPE 3 | GB | |
|
| 51 | 799361-03 | 1 | CLAMSHELL | GB | |
||
| 52 | 889139 | 2 | RETAINER | GB | |
||
| 53 | 559833-00 | 4 | ADJUSTER PLATE FRONT | TYPE 1 & 2 | GB | |
|
| 53 | 376656 | 4 | ADJUSTER HEIGHT | TYPE 3 | GB | |
|
| 54 | 371903-02 | 1 | LEAD SA | GB | |
||
| 55 | 861714-00 | 1 | CONNECTOR | GB | |
||
| 56 | 723588 | 4 | NUT | GB | |
||
| 846 | 809453-02 | 1 | PARTS PACK | GB | |
||
| 847 | 809436-01 | 1 | PARTS PACK | GB | |
