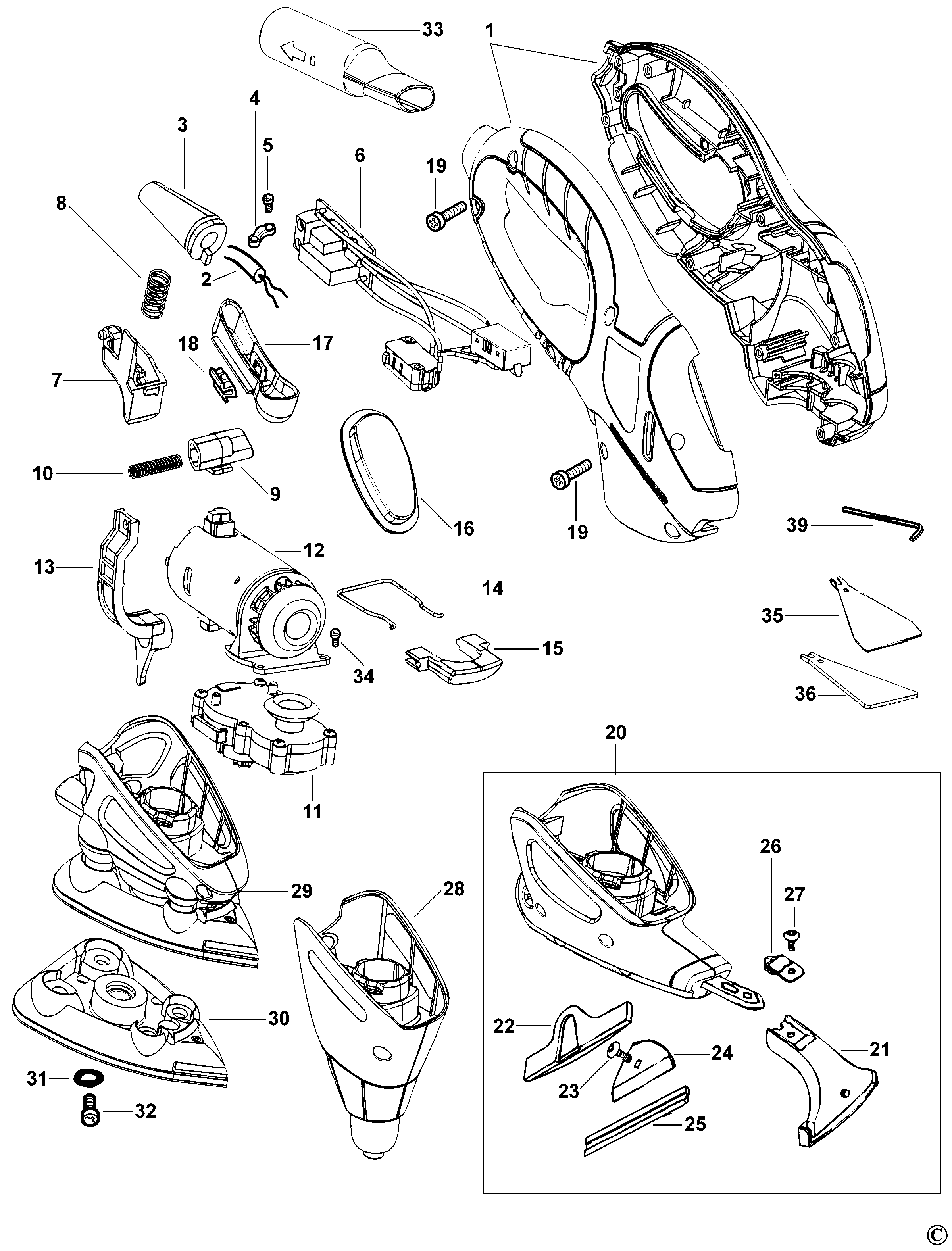

MT3000K WALLPAPER STRIPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 588995-00 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | 589164-00 | 1 | CORDSET | 5A | GB | |
|
| 3 | 588171-00 | 1 | CORD PROTECTOR | GB | |
||
| 4 | 329301-00 | 1 | CORD CLAMP | GB |  |
||
| 5 | 370748 | 2 | SCREW | GB | |
||
| 6 | 488037-02 | 1 | SWITCH & PCB SA | 230V | GB | |
|
| 7 | 588170-00 | 1 | TRIGGER | GB | |
||
| 8 | 477682-00 | 1 | SPRING | GB | |
||
| 9 | 589108-00 | 1 | TRIGGER LOCK-ON | GB | |
||
| 10 | 477681-00 | 1 | SPRING | GB | |
||
| 11 | 588086-01 | 1 | GEARCASE SA | GB | |
||
| 12 | 477679-02 | 1 | MOTOR SA | WITH GEAR | GB | |
|
| 13 | 588242-00 | 1 | ACTUATOR | UP TO DC 2005-24 | GB | |
|
| 13 | 588242-01 | 1 | ACTUATOR | From DC 2005-25 | GB | |
|
| 14 | 588144-00 | 1 | SPRING | GB | |
||
| 15 | 588332-00 | 1 | BUTTON | GB | |
||
| 16 | 477918-00 | 1 | INSERT | GB | |
||
| 17 | 589366-00 | 1 | CARRIER | GB | |
||
| 18 | 148354-03 | 1 | HOLDER | GB | |
||
| 19 | 747329 | 7 | SCREW | GB | |
||
| 20 | 588002-02 | 1 | HEAD SA | GB | |
||
| 21 | 588009-00 | 1 | HEAD | GB | |
||
| 22 | 477047-00 | 1 | COVER | GB | |
||
| 23 | 478004-00 | 1 | SCREW | GB | |
||
| 24 | 588005-00 | 1 | BLADE CLAMP | GB | |
||
| 25 | 588010-00 | 1 | BLADE | GB | |
||
| 26 | 590103-00 | 1 | RETAINER | GB | |
||
| 27 | 478004-00 | 1 | SCREW | GB | |
||
| 28 | 588518-00 | 1 | HEAD SA | DRIVER HEAD EURO | GB | |
|
| 29 | 588113-00 | 1 | HEAD SA | SANDER HEAD EURO | GB | |
|
| 30 | 588788-00 | 1 | PLATEN | GB | |
||
| 31 | 477106-00 | 1 | WASHER | GB | |
||
| 32 | 479504-00 | 1 | SCREW TORX | GB | |
||
| 33 | 589477-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 34 | 588469-00 | 2 | SCREW | GB | |
||
| 35 | 590102-00 | 1 | BLADE | GB | |
||
| 36 | 590133-00 | 1 | BLADE | GB | |
||
| 39 | 589222-00 | 1 | HEX KEY 2.5 MM | GB | |
