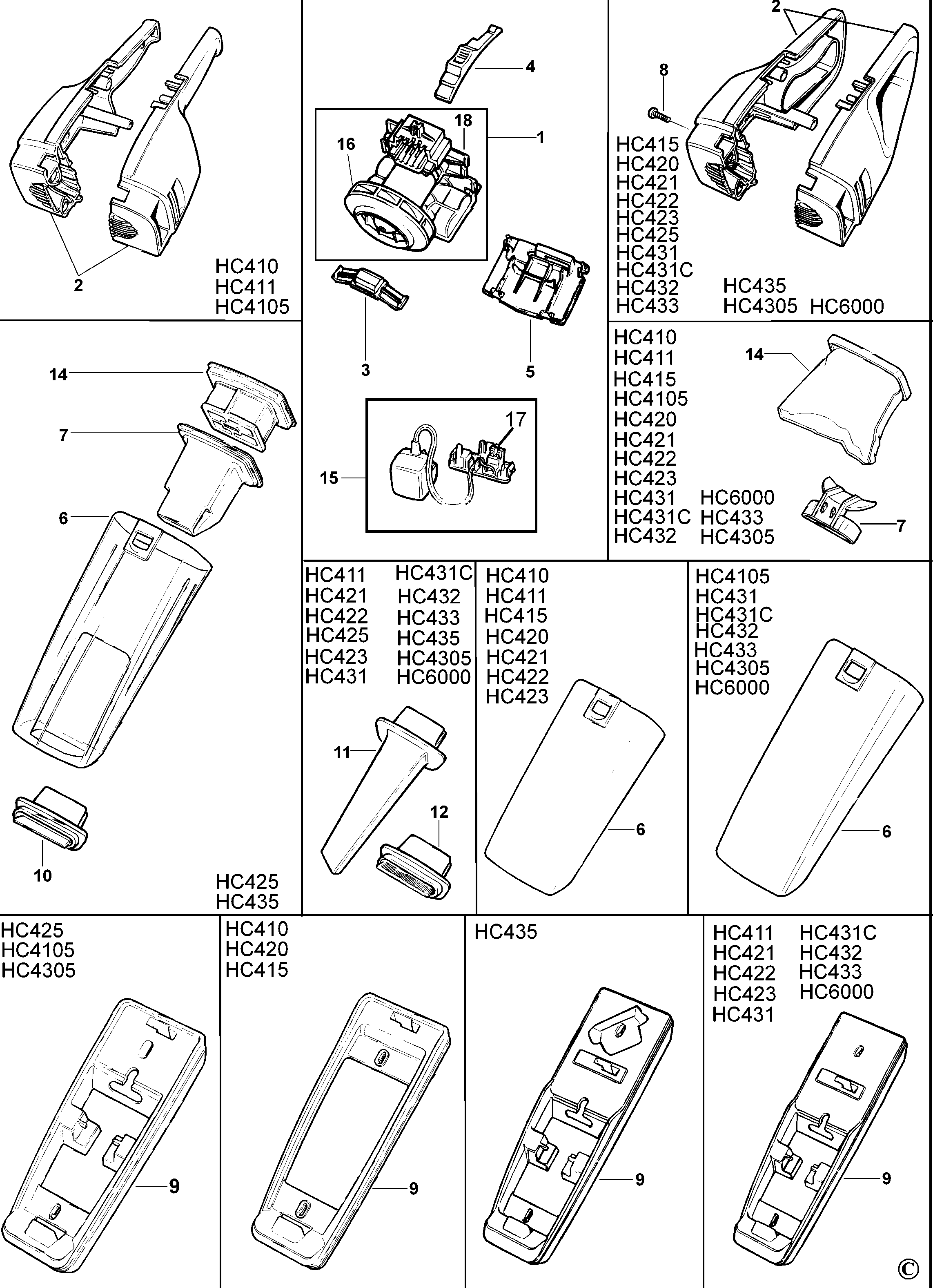

HC431 DUSTBUSTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 796819-05 | 1 | BATTERY & MOTOR SA | 6V - NiCd | XJ |  |
|
| 2 | 498890-10 | 1 | HANDLE SA | XJ | |
||
| 3 | 796728 | 1 | LATCH | XJ | |
||
| 4 | 809201-02 | 1 | ACTUATOR | XJ | |
||
| 5 | 375781-04 | 1 | DOOR | XJ | |||
| 6 | 808698-06 | 1 | BOWL | XJ | |
||
| 7 | 172330-00 | 1 | DEFLECTOR | XJ | |
||
| 8 | 733886 | 5 | SCREW | XJ | |
||
| 9 | 377510 | 1 | BASE | HC4305 | XJ | |
|
| 9 | 796752 | 1 | BASE | HC431 | XJ | |
|
| 11 | 171745-10 | 1 | TOOL CREVICE | XJ | |
||
| 12 | 798785-02 | 1 | BRUSH | XJ | |
||
| 14 | 798530-00 | 1 | FILTER | XJ | |
||
| 15 | 809030-05 | 1 | CHARGER SA | HC4305 GB | XJ | |
|
| 15 | 809030-05 | 1 | CHARGER SA | HC431 GB | XJ | |
|
| 15 | 807919-11 | 1 | CHARGER SA | HC431 AU-NZ | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC4305 NL-NO-PT-SE | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC4305 AA-AT-BE-CH | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC4305 DE-DK-ES-FI | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC4305 FR-GR-IT-LU | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC431 NL-NO-PT-SE | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC431 AA-AT-BE-CH | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC431 DE-DK-ES-FI | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC431 FR-GR-IT-LU | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC4305 KR-SG | XJ | |
|
| 15 | 573421-15 | 1 | CHARGER SA | HC431 CL-AR | XJ | |
|
| 16 | 499887-00 | 1 | FAN | XJ | |
||
| 17 | 807918-03 | 1 | CONTACT SA | HC4305 NL-NO-PT-SE | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC4305 AA-AT-BE-CH | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC4305 DE-DK-ES-FI | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC4305 FR-GR-IT-LU | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC431 NL-NO-PT-SE | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC431 AA-AT-BE-CH | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC431 DE-DK-ES-FI | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC431 FR-GR-IT-LU | XJ | |
|
| 17 | 807918-03 | 1 | CONTACT SA | HC4305 KR-SG | XJ | |
|
| 17 | 807918-05 | 1 | CONTACT SA | HC4305 GB | XJ | |
|
| 17 | 807918-05 | 1 | CONTACT SA | HC431 GB | XJ | |
|
| 18 | 809193 | 1 | SWITCH | XJ | |
