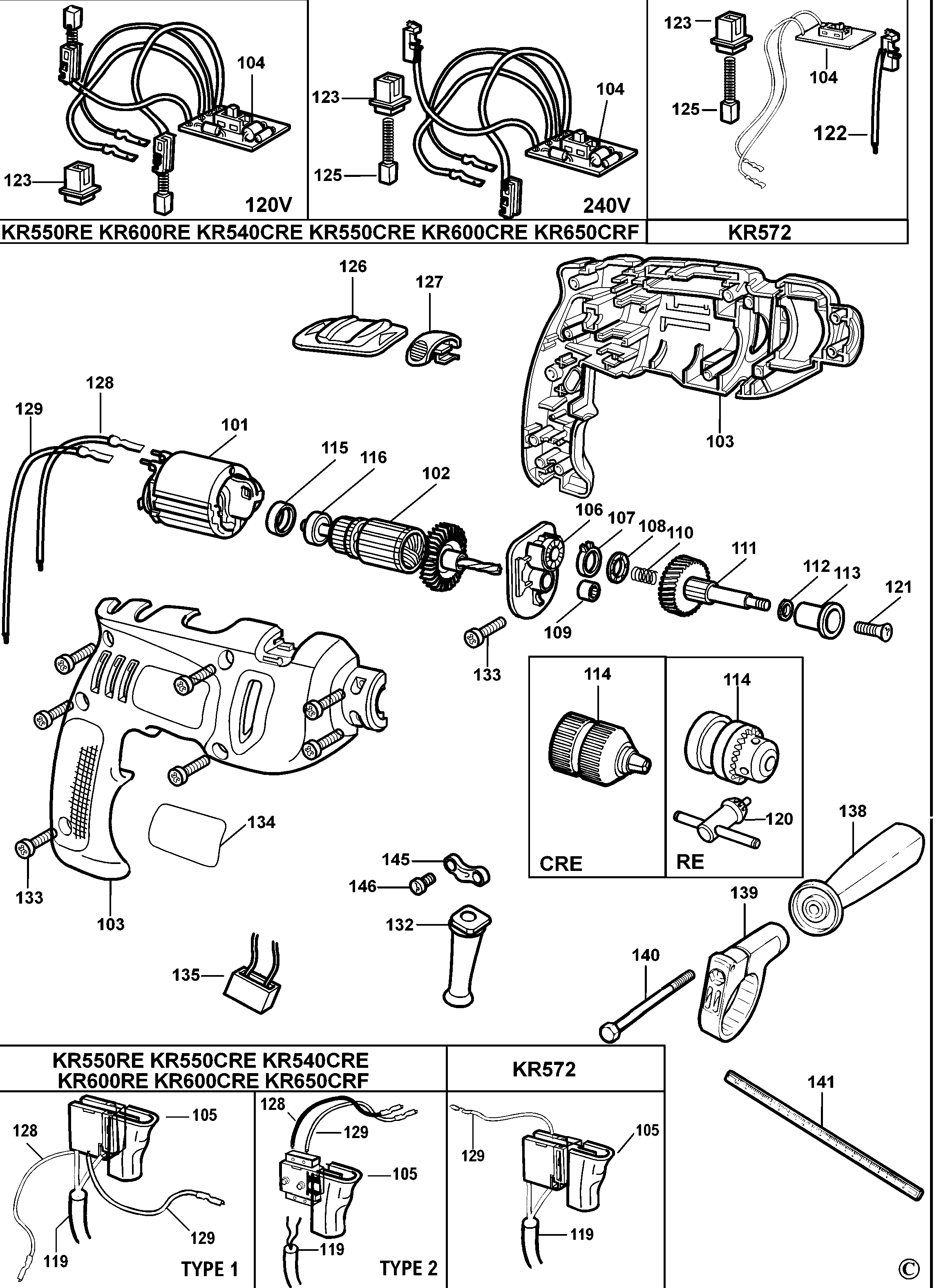

KR550CRE DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 576374-11 | 1 | FIELD 230V | GB |  |
||
| 102 | 374239-01 | 1 | ARMATURE SA | GB | |
||
| 103 | 374190-06 | 1 | CLAMSHELL SET | GB | |
||
| 104 | 374217-01 | 1 | PCB SA | GB | |
||
| 105 | 375127-02 | 1 | SWITCH | GB | |
||
| 106 | 374216-00 | 1 | GEARCASE SA | GB | |
||
| 107 | 374189-00 | 1 | SELECTOR | GB | |
||
| 108 | 892261 | 1 | BEARING | GB | |
||
| 109 | 330004-18 | 1 | BEARING | GB | |
||
| 110 | 821986 | 1 | SPRING | GB | |
||
| 111 | 377645-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 112 | 374194-00 | 1 | WASHER THRUST | GB | |
||
| 113 | 374193-00 | 1 | BEARING | GB | |
||
| 114 | 586589-00L | 1 | CHUCK KEYLESS | GB |  |
||
| 115 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 116 | 330003-02 | 1 | BEARING | GB | |
||
| 119 | 330060-53 | 1 | CORDSET | GB | |
||
| 121 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 122 | 914115 | 2 | BRUSH HOLDER | GB | |||
| 123 | 875735 | 2 | INSERT | GB | |
||
| 125 | 570544-00 | 2 | BRUSH & SPRING | GB | |
||
| 126 | 374218-01 | 1 | ACTUATOR | GB | |
||
| 127 | 374188-00 | 1 | ACTUATOR | GB | |
||
| 128 | 573030-00 | 1 | LEAD RED | GB | |
||
| 129 | 573030-01 | 1 | LEAD BLACK | GB | |
||
| 132 | 770236 | 1 | PROTECTOR | GB | |
||
| 133 | 809961 | 9 | SCREW | GB | |
||
| 134 | 374186-02 | 1 | BRAND LABEL | GB | |
||
| 135 | 807745 | 1 | CAPACITOR | GB | |
||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | GB | |
||
| 139 | 376552-03 | 1 | CLAMP | GB | |
||
| 140 | 813918 | 1 | SCREW | GB | |
||
| 141 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 145 | 821070 | 1 | CORD CLAMP | GB | |
||
| 146 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
