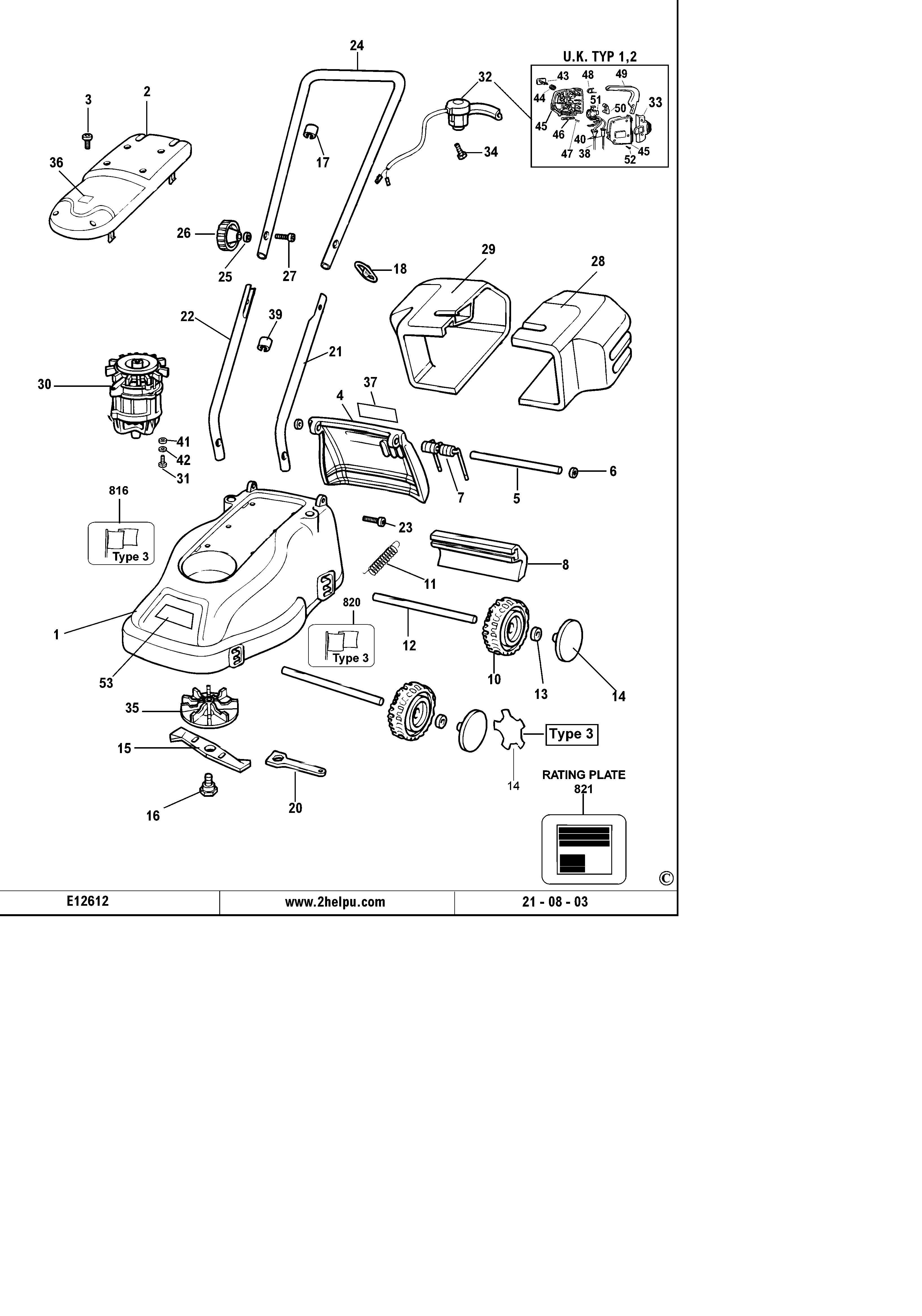

GR345 MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 568871-00 | 1 | CUTTER DECK | T.F.G | TYPE 2 | GB |  |
| 1 | 568410-00 | 1 | CUTTER DECK | GB | |
||
| 2 | 568411-00 | 1 | COVER | GB | |
||
| 3 | 568022-00 | 6 | SCREW | GB | |
||
| 4 | 568412-00 | 1 | FLAP | GB | |
||
| 5 | 568413-00 | 1 | AXLE | GB | |
||
| 6 | 559821-00 | 2 | RETAINER | GB | |
||
| 7 | 568414-00 | 2 | SPRING | GB | |
||
| 8 | 568415-00 | 1 | FLAP | GB | |
||
| 10 | 568041-00 | 4 | WHEEL | GB | |
||
| 11 | 568416-00 | 4 | SPRING | GB | |
||
| 12 | 568417-00 | 2 | AXLE | GB | |
||
| 13 | 568054-00 | 4 | RETAINER | GB | |
||
| 14 | 568878-00 | 4 | CAP | TFG | TYPE 2 | GB | |
| 14 | 568043-00 | 4 | CAP | GB | |
||
| 15 | 568942-00 | 1 | BLADE | GB | |
||
| 16 | 559839-00 | 1 | BLADE BOLT | GB | |
||
| 17 | 559798-00 | 2 | CLIP CABLE | GB | |
||
| 18 | 559799-00 | 1 | RETAINER | GB | |
||
| 20 | 568063-00 | 1 | SPANNER | GB | |
||
| 21 | 568420-00 | 1 | LOWER HANDLE | GB | |
||
| 22 | 568421-00 | 1 | LOWER HANDLE | GB | |
||
| 23 | 568020-00 | 2 | SCREW | GB | |
||
| 24 | 568423-00 | 1 | HANDLE UPPER | GB | |
||
| 25 | 279746-00 | 2 | SPACER 340060 | GB | |
||
| 26 | 279745-00 | 2 | KNOB 340050 | GB | |
||
| 27 | 279714-00 | 2 | SCREW 109420 | GB | |
||
| 28 | 568425-00 | 1 | GRASSBOX | GB | |
||
| 29 | 568424-00 | 1 | GRASSBOX | GB | |
||
| 30 | 568426-00 | 1 | MOTOR SA | GR340 | GB | |
|
| 30 | 568427-00 | 1 | MOTOR | GR345 | GB | |
|
| 31 | 559824-00 | 4 | BOLT | GB | |
||
| 32 | 568428-00 | 1 | SWITCH SA | GB | |
||
| 32 | 568857-00 | 1 | SWITCH SA | TFG | GB | |
|
| 33 | 799364 | 1 | PLATE | GB | |
||
| 34 | 568059-00 | 1 | SCREW | GB | |
||
| 35 | 568429-00 | 1 | FAN | GB | |
||
| 36 | 568467-00 | 1 | AUTO STOP LABEL | GB | |
||
| 37 | 568468-00 | 1 | WARNING LABEL | GB | |
||
| 38 | 799370-09 | 1 | CABLE M/PLUG 16M | GB | |
||
| 39 | 279753-00 | 1 | CLAMP 409500 | GB | |
||
| 40 | 770235 | 1 | PROTECTOR | GB |  |
||
| 41 | 279718-00 | 4 | SPACER 144460 | GB | |
||
| 42 | 559816-00 | 4 | WASHER | GB | |
||
| 43 | 373092 | 1 | BUTTON LOCK-OFF | GB | |
||
| 44 | 827137 | 1 | SPRING | GB | |
||
| 45 | 799361-03 | 1 | CLAMSHELL | TYPE 2 | GB | |
|
| 45 | 799361-03 | 1 | CLAMSHELL | GB | |
||
| 46 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 47 | 810269 | 1 | SCREW | GB | |
||
| 48 | 827135 | 1 | SPRING | GB | |
||
| 49 | 373094 | 1 | LEVER | GB | |
||
| 50 | 797929 | 1 | ACTUATOR | GB | |
||
| 51 | 794164 | 1 | SWITCH | GB | |
||
| 52 | 849256 | 1 | SCREW | GB | |
||
| 53 | 568863-00 | 1 | BRAND LABEL | TFG | GR345 TYPE2 | GB | |
| 53 | 568863-00 | 1 | BRAND LABEL | TFG | GR345 | GB | |
| 53 | 568469-00 | 1 | BRAND LABEL | GR340 | GB | |
|
| 53 | 568862-00 | 1 | BRAND LABEL | TFG | GR340 TYPE2 | GB | |
