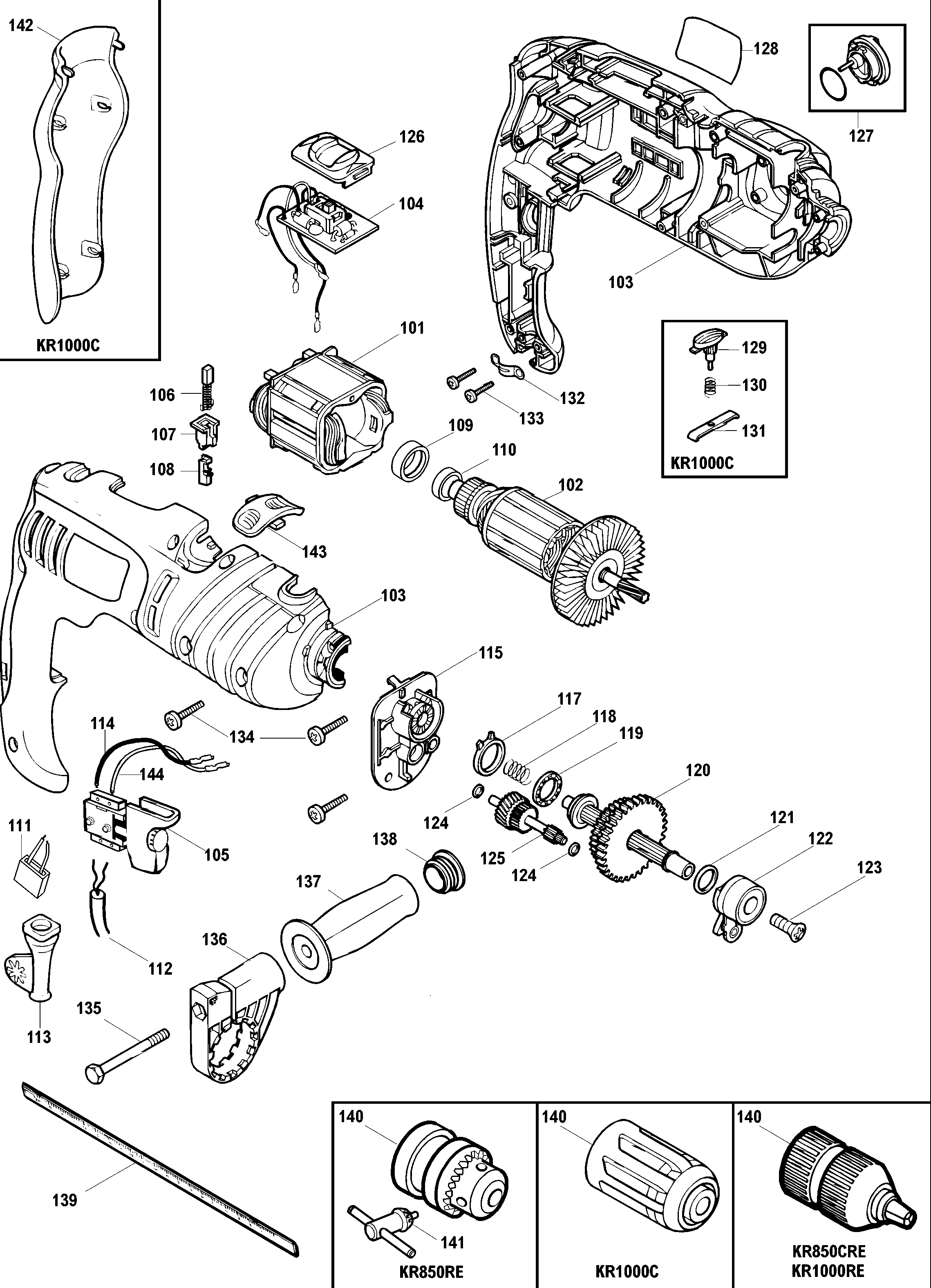

KR850RE DRILL Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 570592-03 | 1 | FIELD 220/240V | GB |  |
||
| 102 | 571028-04 | 1 | ARMATURE 230V | GB | |
||
| 103 | 570803-02 | 1 | CLAMSHELL SET | Intense Orange | GB | |
|
| 104 | 374217-05 | 1 | PCB 220V | GB | |
||
| 105 | 375127-09 | 1 | SWITCH 220V | Black | GB | |
|
| 106 | 321338 | 2 | BRUSH SA 230V | GB |  |
||
| 107 | 321328 | 2 | INSERT | GB | |
||
| 108 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 109 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 110 | 330003-02 | 1 | BEARING | GB | |
||
| 111 | 573681-00 | 1 | CAPACITOR SA | GB | |
||
| 112 | 589164-08 | 1 | CORDSET | GB | |
||
| 113 | 770236 | 1 | PROTECTOR | GB | |
||
| 114 | 374358-00 | 1 | LEAD | GB | |
||
| 115 | 374334-00 | 1 | HOUSING BEARING | GB | |
||
| 117 | 374189-00 | 1 | SELECTOR | GB | |
||
| 118 | 821986 | 1 | SPRING | GB | |
||
| 119 | 892261 | 1 | BEARING | GB | |
||
| 120 | 374345-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 121 | 807629 | 1 | WASHER | GB | |
||
| 122 | 374349-00 | 1 | BEARING SA | GB | |
||
| 123 | 798796 | 1 | SCREW | GB | |
||
| 124 | 807631 | 2 | WASHER | GB | |
||
| 125 | 582339-00 | 1 | INTER SHAFT SA | GB | |
||
| 126 | 374218-01 | 1 | ACTUATOR | GB | |
||
| 127 | 374355-00 | 1 | KNOB SA | GB | |
||
| 128 | 579627-00 | 1 | BRAND LABEL | GB | |
||
| 132 | 821070 | 1 | CORD CLAMP | GB | |
||
| 133 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 134 | 809961 | 13 | SCREW | GB | |
||
| 135 | 813918 | 1 | SCREW | GB | |
||
| 136 | 376736-01 | 1 | CLAMP | GB | |
||
| 137 | 376555-04 | 1 | HANDLE SIDE SA | GB | |
||
| 138 | 376554-01 | 1 | CAP | GB | |
||
| 139 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 140 | 5140071-68 | 1 | CHUCK 13MM | GB | |
||
| 141 | 330034-08 | 1 | CHUCK KEY | GB | |
||
| 143 | 374343-00 | 1 | ACTUATOR | GB | |
||
| 144 | 374353-00 | 1 | LEAD | GB | |
