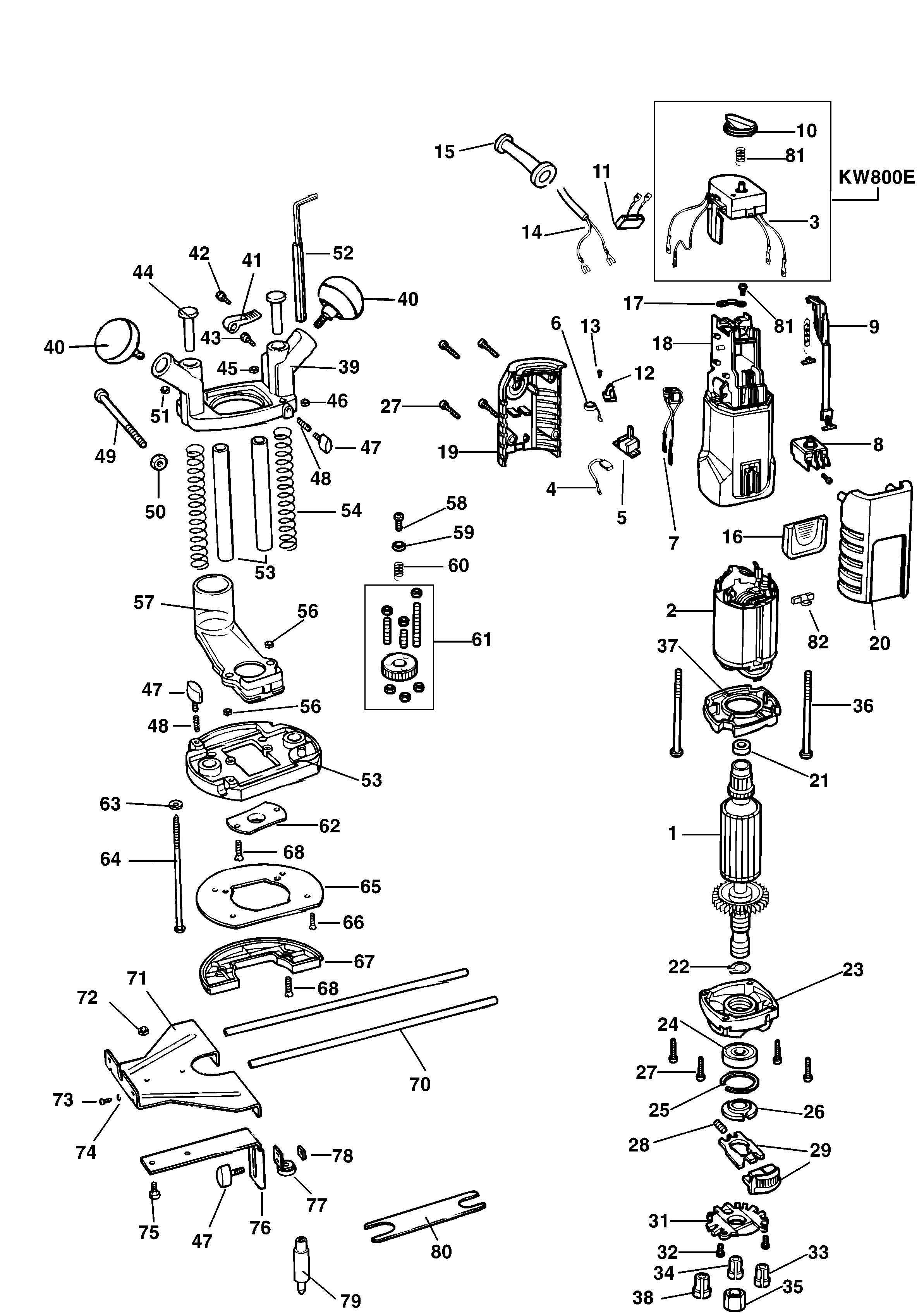

KW800 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 568503-00 | 1 | ARMATURE | KW800 | GB |  |
|
| 1 | 568600-00 | 1 | ARMATURE KW800E | KW800E | GB | |
|
| 2 | 568601-00 | 1 | FIELD 230V KW800E | KW800E | GB | |
|
| 2 | 568504-00 | 1 | FIELD | KW800 | GB | |
|
| 3 | 568505-00 | 1 | SWITCH VARIABLE | KW800E | GB | |
|
| 4 | 568506-00 | 2 | BRUSH | GB | |
||
| 5 | 568507-00 | 2 | BRUSH HOLDER | GB | |
||
| 6 | 568508-00 | 2 | BRUSH SPRING | GB | |
||
| 6 | 806541-03 | 1 | ARMATURE SA | GB | |
||
| 7 | 568509-00 | 2 | CHOKE LEAD SA | GB | |
||
| 8 | 568510-00 | 1 | SWITCH | GB | |
||
| 9 | 568511-00 | 1 | LINK | GB | |
||
| 10 | 568512-00 | 1 | ADJUSTER SA | KW800E | GB | |
|
| 11 | 568513-00 | 1 | CAPACITOR | GB | |
||
| 12 | 568514-00 | 2 | SPRING GUIDE | GB | |
||
| 13 | 568515-00 | 2 | SCREW | GB | |
||
| 14 | 568518-00 | 1 | CORDSET (EURO) | QS | GB | |
|
| 14 | 568516-00 | 1 | CORDSET | GB | |
||
| 15 | 568519-00 | 1 | CORD PROTECTOR | GB | |
||
| 16 | 568526-00 | 1 | BUTTON | GB | |
||
| 17 | 568520-00 | 1 | CORD CLAMP | GB | |
||
| 18 | 568521-00 | 1 | HOUSING | GB | |
||
| 19 | 568522-00 | 1 | CLAMSHELL | KW800 | GB | |
|
| 19 | 568523-00 | 1 | CLAMSHELL | KW800E | GB | |
|
| 20 | 568525-00 | 1 | CLAMSHELL | KW800E | GB | |
|
| 20 | 568524-00 | 1 | CLAMSHELL | KW800 | GB | |
|
| 21 | 568527-00 | 1 | BEARING | GB | |
||
| 22 | 568528-00 | 1 | CIRCLIP | GB | |
||
| 23 | 568529-00 | 1 | HOUSING | GB | |
||
| 24 | 568530-00 | 1 | BEARING | GB | |
||
| 25 | 568532-00 | 1 | CIRCLIP | GB | |
||
| 26 | 568531-00 | 1 | LOCKING RING | GB | |
||
| 26 | 330075-29 | 1 | CHUCK KEYLESS | GB | |||
| 27 | 568533-00 | 4 | SCREW | GB | |
||
| 28 | 568534-00 | 1 | SPRING | GB | |
||
| 29 | 568535-00 | 1 | BUTTON SA | GB | |
||
| 31 | 568536-00 | 1 | COVER | GB | |
||
| 32 | 568537-00 | 2 | SCREW | GB | |
||
| 33 | 568538-00 | 1 | COLLET 6MM | GB | |
||
| 34 | 568539-00 | 1 | COLLET 6.35MM | GB | |
||
| 35 | 568540-00 | 1 | NUT | GB | |
||
| 36 | 568541-00 | 2 | BOLT | GB | |
||
| 37 | 568542-00 | 1 | BAFFLE | GB | |
||
| 38 | 568543-00 | 1 | COLLET 8MM | GB | |
||
| 39 | 568544-00 | 1 | BRACKET | GB | |
||
| 40 | 568545-00 | 2 | HANDLE | GB | |
||
| 41 | 568546-00 | 1 | LEVER | GB | |
||
| 42 | 568547-00 | 1 | SCREW | GB | |
||
| 43 | 568548-00 | 1 | SCREW | GB | |
||
| 44 | 568549-00 | 2 | COVER | GB | |
||
| 45 | 568550-00 | 1 | NUT | GB | |
||
| 46 | 568551-00 | 1 | NUT | GB | |
||
| 47 | 568552-00 | 4 | KNOB | GB | |
||
| 48 | 568553-00 | 3 | SPRING | GB | |
||
| 49 | 568554-00 | 1 | BOLT | GB | |
||
| 50 | 568555-00 | 1 | NUT | GB | |
||
| 51 | 568556-00 | 1 | NUT | GB | |
||
| 52 | 568557-00 | 1 | DEPTH STOP | GB | |
||
| 53 | 568558-00 | 2 | CASTING SA | GB | |
||
| 54 | 568559-00 | 2 | SPRING | GB | |
||
| 56 | 568560-00 | 2 | NUT | GB | |
||
| 57 | 568561-00 | 1 | DUST EXTRACTOR | GB | |
||
| 58 | 568562-00 | 1 | SCREW | GB | |
||
| 59 | 568563-00 | 1 | WASHER | GB | |
||
| 60 | 568564-00 | 1 | SPRING | GB | |
||
| 61 | 568565-00 | 1 | DEPTH STOP SA | GB | |
||
| 62 | 568566-00 | 1 | GUIDE BUSH | GB | |
||
| 63 | 568567-00 | 2 | WASHER | GB | |
||
| 64 | 568568-00 | 2 | BOLT | GB | |
||
| 65 | 568569-00 | 1 | BASE | GB | |
||
| 66 | 568570-00 | 5 | SCREW | GB | |
||
| 67 | 568571-00 | 1 | GUIDE | GB | |
||
| 68 | 568572-00 | 2 | SCREW | GB | |
||
| 70 | 568573-00 | 2 | GUIDE ROD | GB | |
||
| 71 | 568574-00 | 1 | GUIDE FENCE | GB | |
||
| 72 | 568575-00 | 2 | NUT | GB | |
||
| 73 | 568576-00 | 2 | SCREW | GB | |
||
| 74 | 568577-00 | 2 | WASHER | GB | |
||
| 75 | 568578-00 | 1 | SCREW | GB | |
||
| 76 | 568579-00 | 1 | SUPPORT | GB | |
||
| 77 | 568580-00 | 1 | GUIDE | GB | |
||
| 78 | 568581-00 | 1 | NUT | GB | |
||
| 79 | 568582-00 | 1 | PIN | GB | |
||
| 80 | 568583-00 | 1 | WRENCH | GB | |
||
| 81 | 568584-00 | 1 | SPRING | GB | |
||
| 82 | 568585-00 | 1 | SUPPORT | GB | |
||
| 100 | 844501 | 1 | BRACKET RH | GB | |
||
| 120 | 330061-13 | 1 | CABLE 115V | GB | |
||
| 202 | 5103601-40 | 1 | CHARGER 12V GB | GB | |
||
| 239 | 5101854-05 | 1 | SLIDER | GB | |
||
| 248 | 283875-09 | 1 | HOUSING & COVER | GB | |
||
| 257 | 497905-00 | 1 | TERMINAL | GB | |
||
| 310 | 797513-49 | 1 | MOTOR SA | GB | |
||
| 314 | 582266-00 | 1 | CARRIER SA | GB | |
||
| 500 | 945586-00 | 3 | LENS | GB | |
||
| 611 | 5104908-00 | 1 | ADAPTOR SA | & LABEL GREY | GB | ||
| 761 | 330080-28 | 1 | CORDSET (EURO) | GB | |
||
| 762 | 330075-43 | 1 | CHUCK | 3/8 x 20 UNF | GB | |
