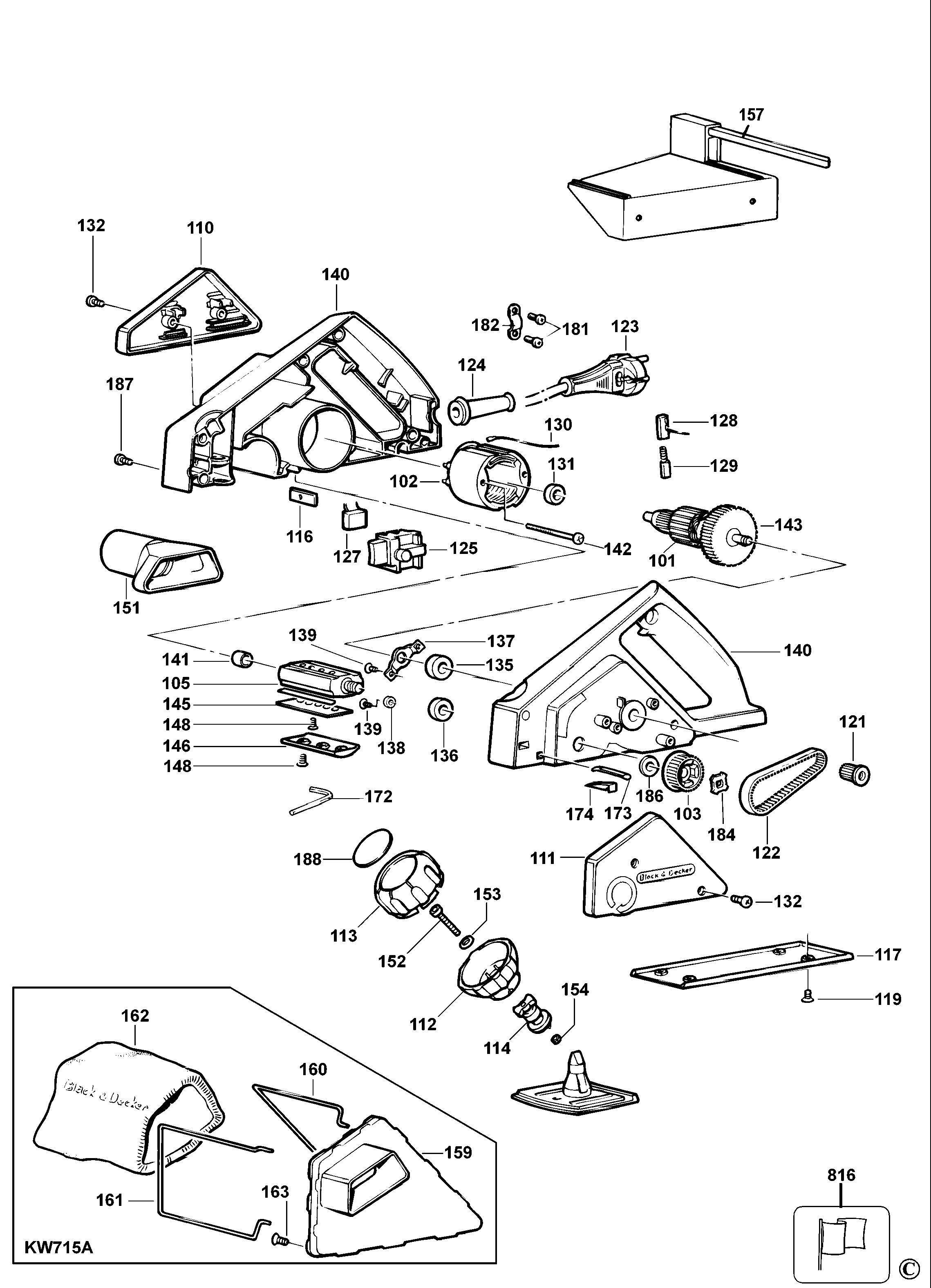

KW715 PLANER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 574369-05 | 1 | ARMATURE SA | GB |  |
||
| 102 | 572640-33 | 1 | FIELD SA | GB | |
||
| 103 | 324950-00 | 1 | PULLEY | GB | |
||
| 105 | 325830-49 | 1 | BLADEDRUM SA | GB | |
||
| 110 | 918595-01 | 1 | END CAP | GB | |
||
| 111 | 325479-00 | 1 | COVER BELT | GB | |
||
| 112 | 377436 | 1 | KNOB LOWER | GB | |
||
| 113 | 377435-01 | 1 | KNOB UPPER | GB | |
||
| 114 | 377432 | 1 | CAM | GB | |
||
| 116 | 918405 | 1 | PLATE | GB |  |
||
| 117 | 917294 | 1 | BASEPLATE | GB | |
||
| 119 | 911216 | 4 | SCREW | GB | |
||
| 121 | 324767-00 | 1 | PULLEY | GB | |
||
| 122 | 324830-02 | 1 | BELT | GB | |
||
| 123 | 330060-53 | 1 | CORDSET | GB | |
||
| 124 | 770235 | 1 | PROTECTOR | GB | |
||
| 125 | 322001 | 1 | SWITCH | Lock-Off | GB | |
|
| 127 | 321384 | 1 | CAPACITOR | GB | |
||
| 128 | 877898 | 2 | BRUSH HOLDER | GB | |
||
| 129 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | GB | |
|
| 130 | 878846 | 2 | LEAD 360MM | GB | |
||
| 131 | 878817 | 1 | BEARING SA | GB | |
||
| 132 | 809961 | 4 | SCREW | GB | |
||
| 135 | 330003-31 | 1 | BEARING | GB | |
||
| 136 | 330003-39 | 1 | BEARING | GB | |
||
| 137 | 916980 | 1 | PLATE | GB | |
||
| 138 | 917307 | 2 | WASHER | GB | |
||
| 139 | 911388 | 4 | SCREW | GB | |
||
| 140 | 372937-05 | 1 | CLAMSHELL SET | KW715T | GB | |
|
| 141 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 142 | 917424 | 2 | SCREW | GB | |
||
| 143 | 917752 | 1 | FAN | GB | |
||
| 145 | 878428 | 2 | HOLDER | GB | |
||
| 146 | 918610 | 2 | COVER | GB | |
||
| 148 | 325377-00 | 10 | SCREW.TEMP | GB | |
||
| 151 | 917451 | 1 | ADAPTOR | GB | |
||
| 152 | 571286-00 | 1 | BOLT | GB | |
||
| 153 | 571287-00 | 1 | WASHER SPRING | GB | |
||
| 154 | 892153 | 1 | NUT | GB | |
||
| 157 | 878192 | 1 | GUIDE | GB | |
||
| 159 | 917549 | 1 | PLATE | GB | |||
| 160 | 917552 | 1 | BRACKET | GB | |
||
| 161 | 917551 | 1 | BRACKET | GB | |
||
| 162 | 369640-01 | 1 | BAG COLLECTION | GB | |
||
| 163 | 795941 | 4 | SCREW.TEMP | GB | |
||
| 172 | 807043 | 1 | WRENCH | 4mm | GB | |
|
| 173 | 870490 | 1 | SPRING | GB | |
||
| 174 | 321327 | 1 | INSERT | GB | |
||
| 184 | 325558-00 | 1 | SPACER | GB | |
||
| 187 | 370367 | 6 | SCREW.SPECIAL | GB | |
||
| 188 | 570801-00 | 1 | LABEL | GB | |
||
| 816 | 326858-04 | 1 | BRAND LABEL | GB | |
