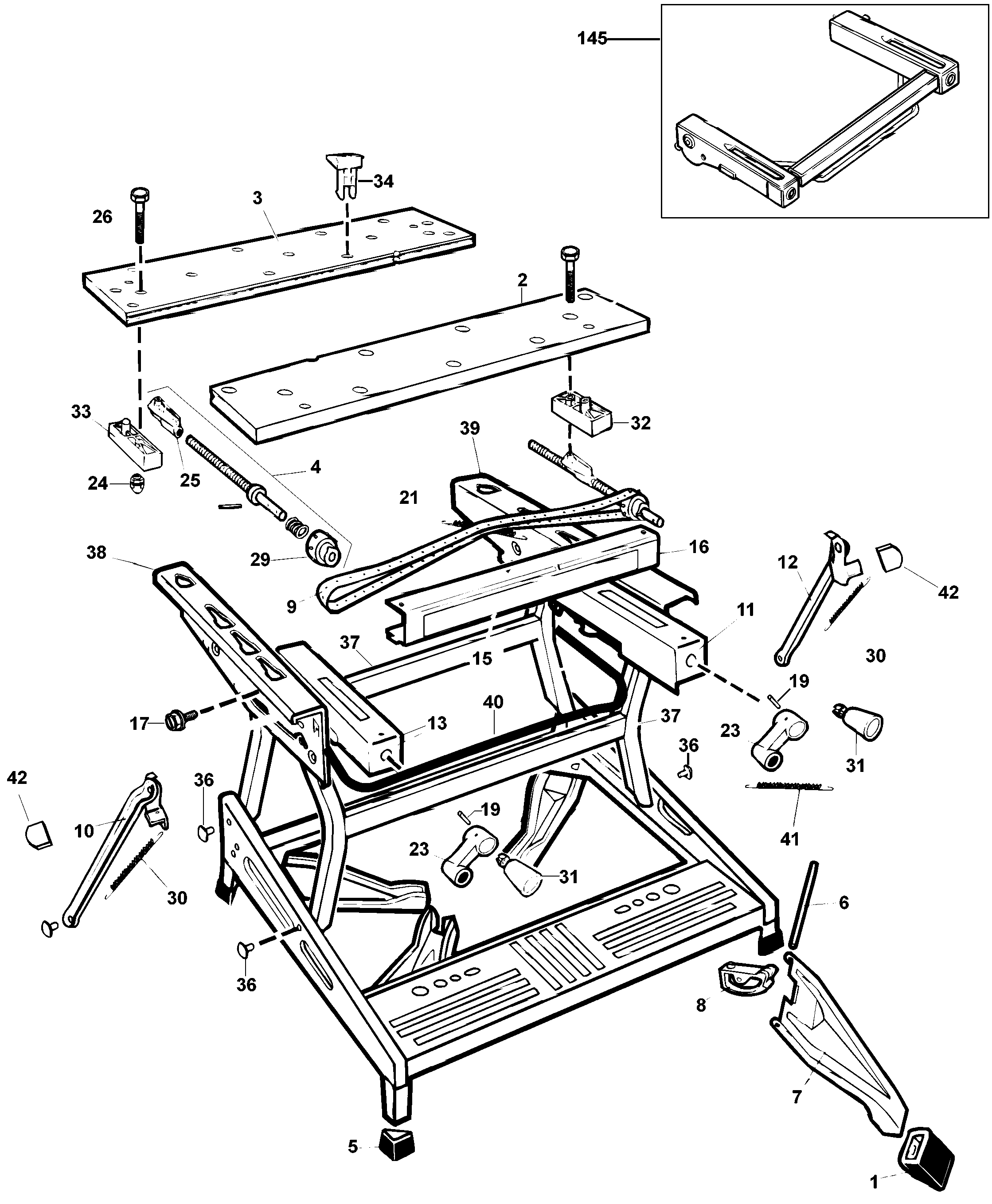

WM825 WORKMATE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 242393-00 | 4 | FOOT | GB |  |
||
| 1 | 1004709-08 | 1 | PUMP SA | GB | |
||
| 2 | 242998-01 | 1 | VICE JAW FRONT | GB |  |
||
| 2 | 791093-00 | 1 | WASHER LOCK | BDSL302 | GB | ||
| 3 | 569296-00 | 1 | VICE JAW (PAIR) | GB | |
||
| 4 | 242837-01 | 2 | SCREW,VISE | GB | |||
| 5 | 242394-00 | 4 | FOOT | GB | |
||
| 6 | 242400-01 | 4 | AXLE | GB | |
||
| 7 | 242415-01 | 4 | LEG | GB | |
||
| 8 | 242416-00 | 4 | LATCH | GB | |
||
| 9 | 242821-01 | 1 | BELT DRIVE | GB | |||
| 10 | 242431-04 | 1 | STAY LH | GB | |
||
| 11 | 243060-01 | 1 | BRACKET SA | GB | |
||
| 12 | 242430-04 | 1 | STAY RH | GB | |
||
| 13 | 243060-01 | 1 | BRACKET SA | GB | |
||
| 15 | 374682-00 | 2 | IDENT LABEL | GB | |||
| 16 | 242831-03 | 1 | GUARD | GB | |
||
| 17 | 823386-00 | 2 | SCREW.SPECIAL | GB | |
||
| 19 | 242311-00 | 1 | PIN | GB | |
||
| 21 | 242854-00 | 1 | SPRING | GB | |
||
| 23 | 242302-00 | 2 | ARM | GB | |
||
| 24 | 243024-00 | 2 | BLOCK REAR | GB | |
||
| 25 | 242445-01 | 2 | NUT | GB | |
||
| 26 | 98025-40 | 4 | BOLT | GB | |
||
| 29 | 242836-00 | 2 | SPROCKET | GB | |
||
| 31 | 242440-00 | 1 | KNOB | GB | |
||
| 32 | 242436-02 | 2 | BLOCK FRONT | GB | |
||
| 33 | 243024-00 | 2 | BLOCK REAR | GB | |
||
| 34 | 807530-02 | 4 | GRIP | GB | |
||
| 36 | 1004688-08 | 1 | RIVET | 6.49mm | GB | |
|
| 37 | 242408-04 | 2 | FRAME | GB | |
||
| 38 | 242975-01 | 1 | BRACKET LH | GB | |
||
| 39 | 242974-01 | 1 | BRACKET RH | GB | |
||
| 40 | 243001-00 | 1 | GRIP | GB | |||
| 41 | 242979-00 | 2 | SPRING | GB | |
||
| 42 | 243000-00 | 2 | CAP | GB | |
||
| 145 | 243060-01 | 1 | BRACKET SA | GB | |
