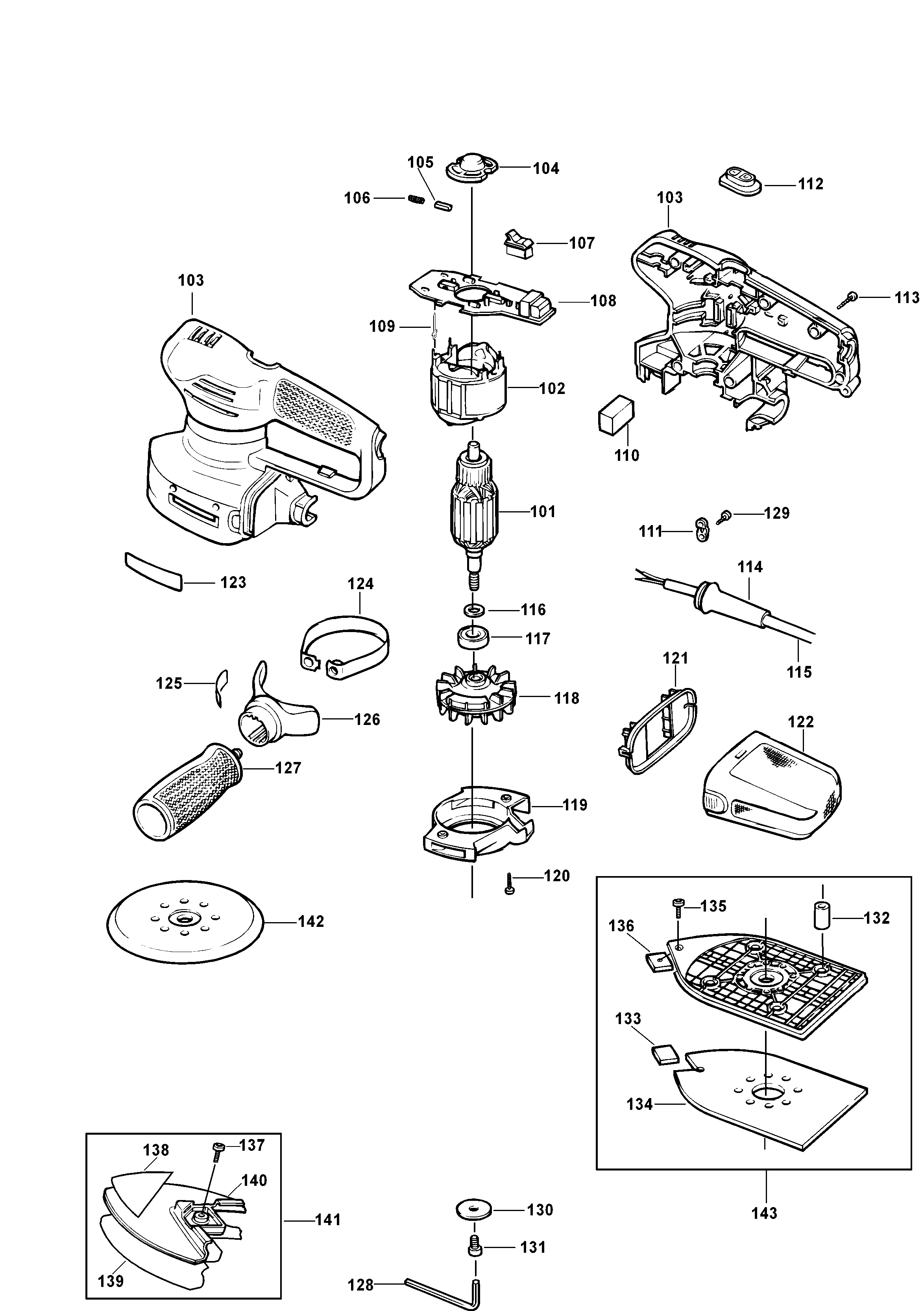

KA220 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 150244-01 | 1 | SWITCH | GB |  |
||
| 5 | 639924-00 | 1 | ARMATURE | GB | |||
| 6 | 396274-01 | 1 | LEADWIRE | WHITE | GB | ||
| 7 | 176830-00 | 1 | SWITCH,VSR | GB | |||
| 8 | 385995-00 | 1 | RING | REVERSE RING | GB | ||
| 9 | 395437-00 | 1 | DOOR | GB | |
||
| 10 | N437890 | 1 | SPRING | GB |  |
||
| 11 | 385424-00 | 1 | RATING PLATE | GB | |
||
| 12 | 1002856-00 | 1 | AUTO STOP LABEL | GB | |
||
| 13 | 146714-00 | 1 | LOCK | GB | |
||
| 14 | 398646-00 | 2 | ADAPTOR | GB | |
||
| 15 | 389300-00 | 1 | BUTTON | GB | |
||
| 16 | N108694 | 4 | GREASE | NYE Nyogel 760G 30ml | GB | ||
| 18 | 098162-18 | 7 | SPRING PIN | GB | |||
| 21 | 380244-00 | 1 | RETAINER | GB | |
||
| 22 | N142238 | 1 | NAME PLATE | GB | |||
| 23 | 498041-00 | 1 | SPRING RH | GB | |
||
| 30 | 590336-01 | 1 | GEARCASE COVER | Front | GB | |
|
| 34 | 429704-01 | 1 | HANDLE | GB | |||
| 35 | 386631-00 | 1 | NAMEPLATE | GB | |||
| 36 | N385062 | 1 | WARNING LABEL | SPANISH | GB | ||
| 37 | 393746-00 | 1 | BAFFLE | GB | |
||
| 39 | 389461-00 | 6 | SPRING | GB | |
||
| 40 | 6010092-14 | 1 | BODY | CHOPPER BODY TOP | GB | |
|
| 41 | 397875-00 | 1 | SPINDLE SA | GB | |||
| 42 | N028249 | 7 | KITBOX | GB | |
||
| 43 | N543918 | 6 | SPRING | GB | |
||
| 44 | 395073-00 | 1 | PLATE | GB | |
||
| 45 | 632579-00 | 2 | NAMEPLATE | GB | |||
| 48 | 384198-00 | 1 | RING | GB | |||
| 101 | 373311-01 | 1 | ARMATURE 230V | GB | |
||
| 102 | 807254-13 | 1 | FIELD SA | GB | |
||
| 103 | 571983-00 | 1 | CLAMSHELL | TYPE 2 | GB |
| ||
| 103 | 580941-03 | 1 | CLAMSHELL SET | ORANGE | FROM DCODE 010202 | GB | |
| 103 | 374126-00 | 1 | CLAMSHELL | TYPE 1 | GB | |
|
| 104 | 807262 | 1 | HEATSINK SA | GB | |
||
| 105 | 736703 | 2 | BRUSH | GB | |
||
| 106 | 830501 | 2 | SPRING | GB | |
||
| 107 | 368320 | 1 | SWITCH | GB | |
||
| 108 | 807264-00 | 1 | PCB SA | TYPE 1 | GB | |
|
| 108 | 807264-02 | 1 | PCB | TYPE 2 | GB | |
|
| 109 | 823723 | 4 | CONNECTOR | GB | |
||
| 110 | 807242 | 1 | PAD | GB | |
||
| 111 | 821070 | 1 | CORD CLAMP | GB | |
||
| 112 | 808495-01 | 1 | ACTUATOR | GB | |
||
| 113 | 747329 | 7 | SCREW | GB | |
||
| 114 | 770235 | 1 | PROTECTOR | GB | |
||
| 115 | 330060-53 | 1 | CORDSET | GB | |
||
| 116 | 807246 | 1 | WASHER | UPTO DATE CODE 09-97 | GB | |
|
| 117 | 330003-39 | 1 | BEARING | GB | |
||
| 118 | 807235 | 1 | FAN SA | GB | |
||
| 119 | 807241 | 1 | SHROUD | GB | |
||
| 120 | 747329 | 2 | SCREW | GB | |
||
| 121 | 808766 | 1 | BAFFLE | GB | |
||
| 122 | 807237 | 1 | DUST BAG SA | GB | |
||
| 123 | 369881-04 | 1 | BRAND LABEL | KA200 | GB | |
|
| 123 | 369881-03 | 1 | BRAND LABEL | KA210 | GB | |
|
| 123 | 369881-01 | 1 | BRAND LABEL | KA220 | GB | |
|
| 124 | 797165-01 | 1 | STRAP | GB | |
||
| 125 | 369996-00 | 1 | BRAND LABEL | GB | |
||
| 126 | 807255-03 | 1 | BLOCK | GB | |
||
| 127 | 808144-02 | 1 | SIDE HANDLE | GB | |
||
| 128 | 807043 | 1 | WRENCH | 4mm | GB | |
|
| 129 | 370748 | 2 | SCREW | GB | |
||
| 130 | 807936 | 1 | WASHER | GB | |
||
| 131 | 797190 | 1 | SCREW.TEMP | GB | |
||
| 132 | 807224 | 4 | LEG | GB | |
||
| 133 | 90558556 | 1 | TIP | GB | |
||
| 134 | 807274-01 | 1 | PAD | GB | |
||
| 135 | 808765 | 1 | SCREW | GB | |
||
| 136 | 377443-01 | 1 | TIP | GB | |
||
| 137 | 371936 | 1 | SCREW | KA210 LD | GB | |
|
| 138 | 90554651N | 1 | BASE | KA210 LD | GB | |
|
| 139 | 371933 | 1 | FASTENER | KA210 LD | GB | |
|
| 140 | 371934 | 1 | PLATEN | KA210 LD | GB | |
|
| 141 | 371931 | 1 | BASE SA | KA210 LD | GB | |
|
| 142 | 807939 | 1 | PLATE | GB | |
||
| 143 | 575772-01 | 1 | SHOE SA | GB | |
||
| 861 | 633044-00 | 1 | O RING | 10.82x1.78 | GB | |
|
| 871 | 5102767-09 | 1 | CHARGER | GB |
