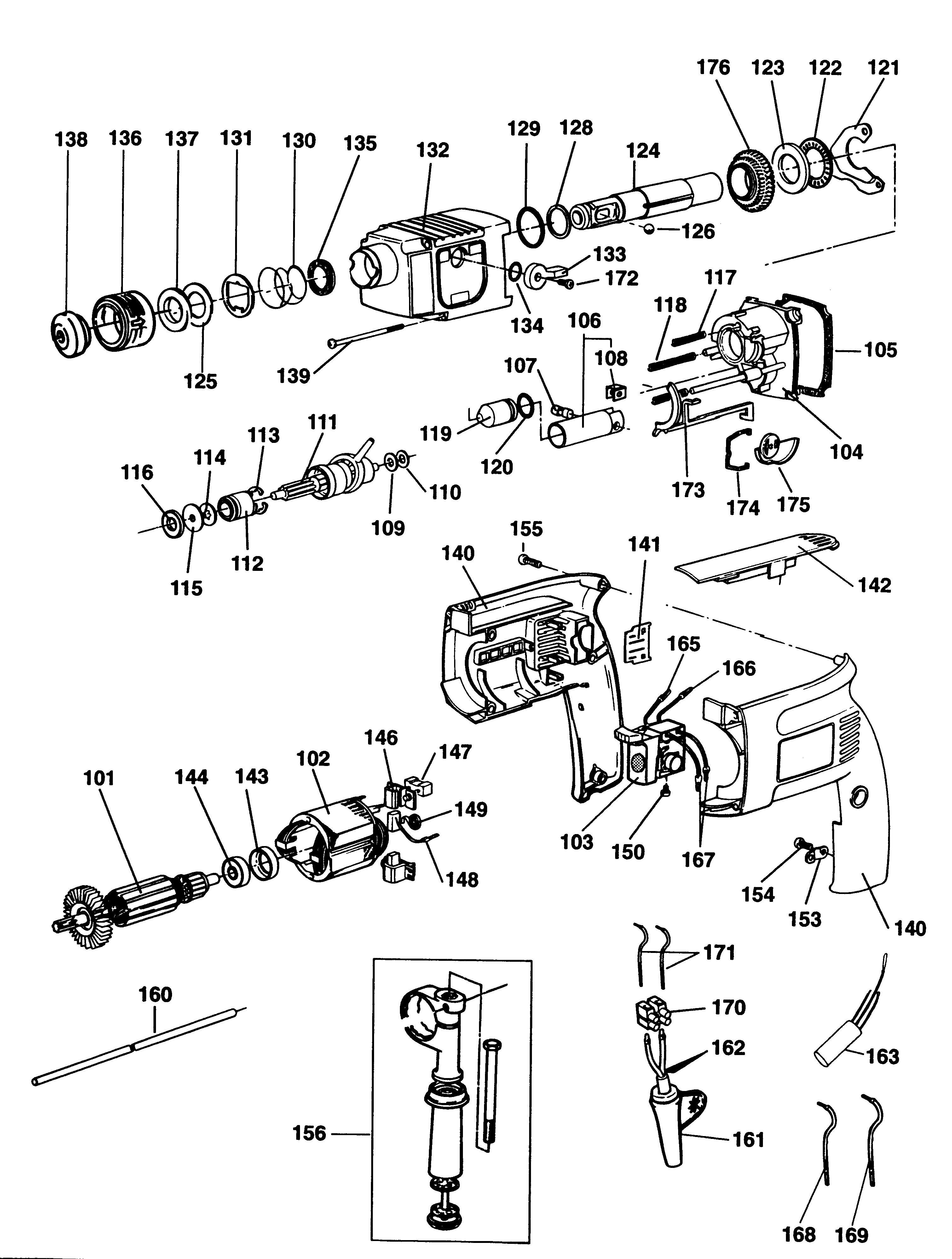

KD654HRX ROTARY HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 323497-02 | 1 | ARMATURE | GB |  |
||
| 102 | 323983-02 | 1 | FIELD | GB | |
||
| 103 | 326570-00 | 1 | SWITCH | GB | |
||
| 104 | 324032-00 | 1 | HOUSING | GB | |
||
| 105 | 323572-00 | 1 | SEAL | GB | |
||
| 106 | 323926-00 | 1 | PISTON | GB | |
||
| 107 | 323569-00 | 1 | AXLE | GB | |
||
| 108 | 324487-00 | 2 | SPRING | GB | |
||
| 109 | 324430-03 | 1 | BEARING AXIAL | GB | |
||
| 110 | 324431-03 | 1 | WASHER 7 | GB | |
||
| 111 | 324155-00 | 1 | GEAR | GB | |
||
| 112 | 325232-01 | 1 | SLEEVE | GB | |
||
| 113 | 323487-00 | 1 | RING | GB | |
||
| 114 | 325294-00 | 1 | WASHER SPRING | GB | |
||
| 115 | 324431-00 | 1 | WASHER 6 | GB | |
||
| 116 | 324430-00 | 1 | BEARING NEEDLE | GB | |
||
| 117 | 323395-00 | 2 | SPRING | GB | |
||
| 118 | 323395-02 | 1 | SPRING | GB | |
||
| 119 | 325175-00 | 1 | RAM | GB | |
||
| 120 | 323711-25 | 1 | O RING | GB |  |
||
| 121 | 323488-01 | 1 | PLATE | GB | |
||
| 122 | 324430-01 | 1 | BEARING,NEEDLE | GB | |
||
| 123 | 323999-00 | 1 | WASHER | GB | |
||
| 124 | 324031-00 | 1 | SPINDLE | GB | |
||
| 125 | 323492-00 | 1 | WASHER | GB | |
||
| 126 | 583890-00 | 1 | BALL | GB | |
||
| 128 | 323753-01 | 1 | WASHER | GB | |
||
| 129 | 323711-04 | 1 | SEAL | GB | |
||
| 130 | 871690 | 1 | SPRING | GB | |
||
| 131 | 578387-00 | 1 | WASHER | GB | |
||
| 132 | 324033-06 | 1 | GEARCASE | GB | |
||
| 133 | 323841-00 | 1 | LEVER | GB | |
||
| 134 | 323711-07 | 1 | O RING | GB | |
||
| 135 | 324432-00 | 1 | SEAL SA | GB | |
||
| 136 | 576756-00 | 1 | COLLAR | GB | |
||
| 137 | 323480-00 | 1 | SPACER | GB | |
||
| 138 | 323489-00 | 1 | CAP | GB | |
||
| 139 | 324044-02 | 4 | SCREW | GB | |
||
| 140 | 323505-11 | 1 | CLAMSHELL PAIR | GB | |
||
| 141 | 323758-00 | 2 | COVER | GB | |
||
| 142 | 323666-05 | 1 | COVER | GB | |
||
| 143 | 323481-00 | 1 | CAP | GB | |
||
| 144 | 605040-63 | 1 | BEARING | GB | |
||
| 146 | 323496-01 | 2 | BRUSH HOLDER | GB | |
||
| 147 | 491366-00 | 2 | BRUSH KIT | GB | |
||
| 148 | 323660-01 | 2 | BRUSH 230V | GB | |
||
| 149 | 872843 | 2 | SPRING | GB | |
||
| 150 | 911026 | 3 | SCREW | GB | |
||
| 153 | 821070 | 1 | CORD CLAMP | GB | |
||
| 154 | 323924-08 | 2 | SCREW | GB | |
||
| 155 | 323924-02 | 5 | SCREW | GB | |
||
| 156 | 326076-00 | 1 | SIDE HANDLE | GB | |
||
| 160 | 580787-00 | 1 | DEPTH STOP | GB | |
||
| 161 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 162 | 325090-07 | 1 | CORDSET | GB | |||
| 163 | 320843-03 | 1 | CAPACITOR | GB | |
||
| 165 | 877356 | 1 | LEAD 90MM BLACK | GB | |
||
| 166 | 323768-03 | 1 | LEAD 75MM BLACK | GB | |
||
| 167 | 323768-02 | 2 | LEAD 120MM BLACK | GB | |
||
| 168 | 877358 | 1 | LEAD 220MM | GB | |
||
| 169 | 877357 | 1 | LEAD 160MM BLACK | GB | |
||
| 170 | 323534-00 | 1 | CONNECTOR | GB | |
||
| 171 | 873309 | 2 | LEAD | GB | |
||
| 172 | 324007-10 | 1 | SCREW | GB | |
||
| 173 | 323795-01 | 1 | LEVER | GB | |
||
| 174 | 323797-00 | 1 | CLIP | GB | |
||
| 175 | 323956-01 | 1 | LEVER | GB | |
||
| 176 | 324108-01 | 1 | GEAR | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 846 | 327354-00 | 1 | WASHER SA | GB | |
