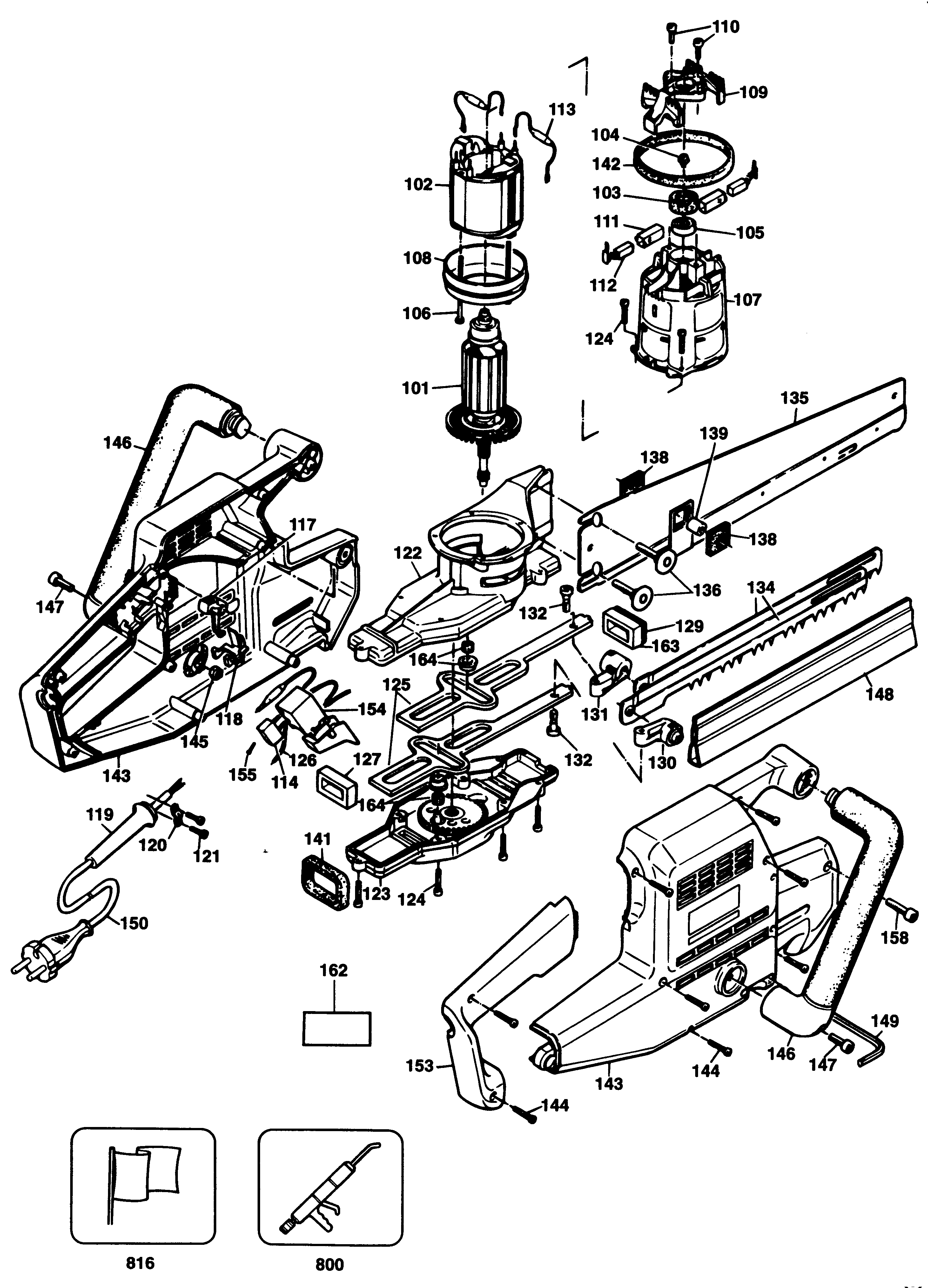

KS380 UNIVERSAL SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 369453-04 | 1 | ARMATURE 230V | GB |  |
||
| 102 | 373007-15 | 1 | FIELD 230V | GB | |
||
| 103 | 911897 | 1 | HOLDER | GB | |
||
| 104 | 322491 | 1 | SCREW | GB | |
||
| 105 | 330003-19 | 1 | BEARING | GB |  |
||
| 106 | 916231 | 2 | SCREW | GB | |
||
| 107 | 322330 | 1 | FIELDCASE | GB | |
||
| 108 | 916128 | 1 | BAFFLE FAN | GB | |
||
| 109 | 322894 | 1 | BRIDGE | GB | |
||
| 110 | 894748 | 2 | O RING | GB | |
||
| 111 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 112 | 322950 | 2 | BRUSH 230V | GB | |
||
| 113 | 917912-07 | 2 | CHOKE SA | GB | |
||
| 114 | 321384 | 1 | CAPACITOR | GB | |
||
| 117 | 322369-00 | 1 | LEVER | GB | |
||
| 118 | 323136 | 1 | LEVER | GB | |
||
| 119 | 859013 | 1 | PROTECTOR | GB | |
||
| 120 | 821070 | 1 | CORD CLAMP | GB | |
||
| 121 | D911324 | 2 | SCREW | GB | |
||
| 122 | 324817-00 | 1 | GEARCASE | GB | |
||
| 123 | 322667 | 1 | GEARCASE | GB | |
||
| 124 | 810091-00 | 11 | SCREW.SPECIAL | GB | |
||
| 125 | 1008559-01 | 1 | REPAIR KIT | GB | |
||
| 126 | 878756 | 2 | LEAD 200MM BLACK | GB | |
||
| 127 | 322377 | 1 | BEARING | GB | |
||
| 129 | 325990-00 | 1 | SEAL | GB | |
||
| 130 | 368469-00 | 1 | CLAMP SA RH | GB | |
||
| 131 | 368470-00 | 1 | CLAMP SA LH | GB | |
||
| 132 | 495253-00 | 2 | REPAIR KIT | GB | |
||
| 135 | 324770-00 | 1 | BAR | KS380 | GB | |
|
| 135 | 325334-00 | 1 | BAR | KS385 | GB | |
|
| 136 | 324776-00 | 2 | SCREW | GB | |
||
| 138 | 322661 | 2 | INSERT | GB | |
||
| 139 | 322662 | 1 | SPACER | GB | |
||
| 141 | 322659 | 1 | INSERT | GB | |
||
| 142 | 322660 | 1 | INSERT | GB | |
||
| 143 | 325602-04 | 1 | CLAMSHELL | GB | |
||
| 144 | 911325 | 9 | SCREW | GB | |
||
| 145 | 911018 | 2 | NUT | GB | |
||
| 146 | 322370 | 2 | HANDLE | GB | |
||
| 147 | 911281 | 2 | SCREW | GB | |||
| 148 | 322763-00 | 1 | GUARD | GB | |
||
| 149 | 098000-11 | 1 | HEX KEY | GB | |
||
| 150 | 799334-13 | 1 | CORDSET | GB | |
||
| 153 | 322363-04 | 1 | HANDLE COVER | GB | |
||
| 154 | 326568-00 | 1 | SWITCH | GB | |
||
| 155 | 911026 | 4 | SCREW | GB | |
||
| 158 | 322928 | 1 | SCREW | GB | |
||
| 162 | 323504-00 | 1 | WARNING LABEL | GB | |
||
| 163 | 325881-01 | 1 | BEARING | GB | |
||
| 164 | 1008559-01 | 2 | REPAIR KIT | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 369710-01 | 1 | BRAND LABEL | KS380 | GB | |
|
| 816 | 584453-00 | 1 | BRAND LABEL | KS385 | GB | |
