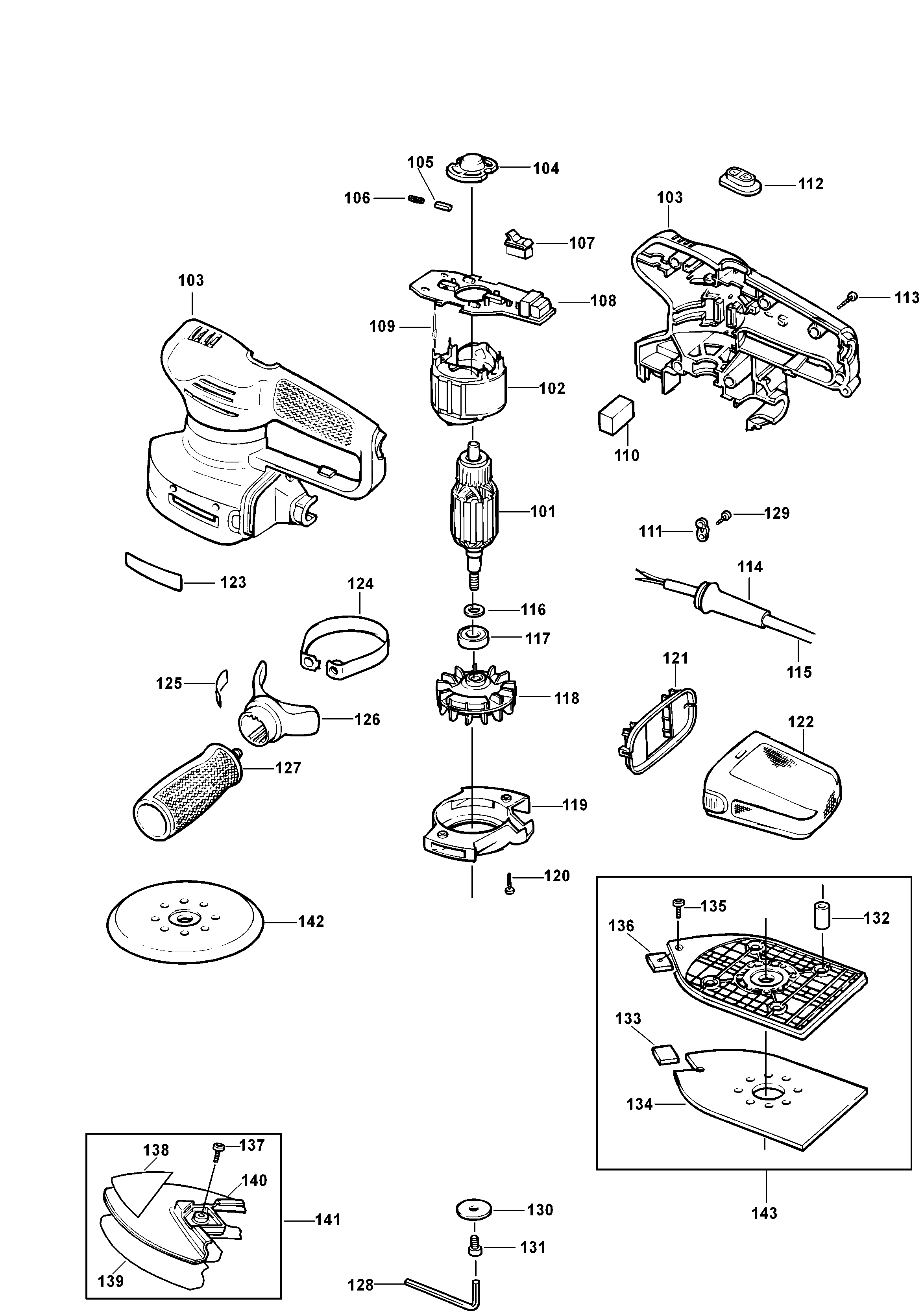

KA210LD SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 391452-02 | 1 | LEVER | GB |  |
||
| 3 | 149085-00 | 1 | LABEL,ID | GB | |||
| 4 | 082481-00 | 1 | WASHER | GB | |||
| 5 | 429598-00 | 1 | CHUCK & KEY | GB | |||
| 7 | 382180-01 | 2 | GEARCASE COVER SA | GB | |
||
| 8 | 393759-00 | 1 | PLATE | RETAINER | GB | |
|
| 9 | 330065-08 | 1 | SCREW | M4x18 T20 | GB |  |
|
| 10 | 605040-72 | 1 | BEARING | GB | |
||
| 11 | 007027-00 | 1 | KEY | INCL 100 | GB | |
|
| 13 | 51402-00 | 1 | PINION | GB | |||
| 15 | 616831-00 | 1 | ANVIL ASSY. | 5/8 - 16 THD | GB | ||
| 16 | 146636-00 | 1 | NUT, FIELD | GB | |||
| 17 | 626393-00 | 1 | TABLE | GB | |
||
| 18 | A23284 | 1 | CORDSET | Incl. Capacitor | GB | ||
| 19 | 581240-00 | 1 | BAFFLE FAN | GB | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | GB | |
||
| 21 | 050056-00 | 2 | O RING | GB | |
||
| 22 | N020948 | 1 | BRAND LABEL | GB | |
||
| 24 | 582831-00 | 1 | BAFFLE | GB | |
||
| 25 | 327429-11 | 1 | FIELD 120V | GB | |
||
| 26 | N011328 | 4 | LOCKING DEVICE | GB | |||
| 27 | N411027 | 8 | LEAD ASSY. | WHITE (125MM) | GB | ||
| 28 | 496429-00 | 2 | FAN | GB | |||
| 34 | 330045-06 | 2 | SCREW | GB | |
||
| 36 | N007870 | 1 | RATING PLATE | DW304PK-TW TY2 | GB | ||
| 69 | 5103553-00 | 2 | BATTERY 18V - 1.5AH - 27WH | GB | |
||
| 70 | 663029-00 | 1 | HANDLE SIDE SA | GB | |
||
| 71 | 617223-00 | 1 | KITBOX | GB | |||
| 72 | 152251-02SV | 1 | PACK-BATTERY | GB | |||
| 74 | 390096-00 | 1 | DEFLECTOR | GB | |
||
| 75 | 450849-00 | 1 | SELECTOR | GB | |
||
| 76 | 641453-00 | 1 | PLATE | GB | |
||
| 77 | N300110 | 1 | PLATE | GB | |||
| 78 | 398076-01 | 1 | ARMATURE SA | GB | |||
| 79 | 648184-00 | 1 | SWITCH COVER | GB | |
||
| 80 | A23584 | 1 | HOUSING | GB | |||
| 81 | N083671 | 1 | SHIFT KNOB | GB | |||
| 82 | 616828-06 | 1 | FIELDCASE | GB | |
||
| 100 | 21246-00 | 3 | BEARING NEEDLE | GB | |||
| 101 | 373311-01 | 1 | ARMATURE 230V | GB | |
||
| 102 | 807254-13 | 1 | FIELD SA | GB | |
||
| 102 | 700964-00 | 1 | BEARING | GB | |
||
| 103 | 580941-03 | 1 | CLAMSHELL SET | ORANGE | FROM DCODE 010202 | GB | |
| 103 | 374126-00 | 1 | CLAMSHELL | TYPE 1 | GB | |
|
| 103 | 571983-00 | 1 | CLAMSHELL | TYPE 2 | GB |
| ||
| 104 | 807262 | 1 | HEATSINK SA | GB | |
||
| 104 | 146736-02 | 1 | GEAR & SPINDLE SA | GB | |
||
| 105 | 736703 | 2 | BRUSH | GB | |
||
| 105 | N522017 | 1 | LEVER | GB | |
||
| 106 | 830501 | 2 | SPRING | GB | |
||
| 106 | 330003-11 | 1 | BEARING | GB | |
||
| 107 | 368320 | 1 | SWITCH | GB | |
||
| 108 | 807264-00 | 1 | PCB SA | TYPE 1 | GB | |
|
| 108 | 807264-02 | 1 | PCB | TYPE 2 | GB | |
|
| 108 | N772471 | 1 | BASE SA | GB | |
||
| 109 | 823723 | 4 | CONNECTOR | GB | |
||
| 109 | 402140-00 | 1 | ANTI SPLINTER DEVICE | GB | |
||
| 110 | 807242 | 1 | PAD | GB | |
||
| 110 | 021635-00 | 1 | NEEDLE BEARING | GB | |||
| 111 | 821070 | 1 | CORD CLAMP | GB | |
||
| 111 | 389658-00 | 1 | HANDLE | GB | |
||
| 112 | 808495-01 | 1 | ACTUATOR | GB | |
||
| 112 | 624281-00 | 1 | CAP | NON VS | GB | ||
| 113 | 747329 | 7 | SCREW | GB | |
||
| 114 | 770235 | 1 | PROTECTOR | GB | |
||
| 115 | 330060-53 | 1 | CORDSET | GB | |
||
| 116 | 807246 | 1 | WASHER | UPTO DATE CODE 09-97 | GB | |
|
| 117 | 330003-39 | 1 | BEARING | GB | |
||
| 118 | 807235 | 1 | FAN SA | GB | |
||
| 119 | 807241 | 1 | SHROUD | GB | |
||
| 120 | 747329 | 2 | SCREW | GB | |
||
| 121 | 808766 | 1 | BAFFLE | GB | |
||
| 122 | 807237 | 1 | DUST BAG SA | GB | |
||
| 123 | 369881-01 | 1 | BRAND LABEL | KA220 | GB | |
|
| 123 | 369881-04 | 1 | BRAND LABEL | KA200 | GB | |
|
| 123 | 369881-03 | 1 | BRAND LABEL | KA210 | GB | |
|
| 124 | 797165-01 | 1 | STRAP | GB | |
||
| 125 | 369996-00 | 1 | BRAND LABEL | GB | |
||
| 126 | 807255-03 | 1 | BLOCK | GB | |
||
| 127 | 808144-02 | 1 | SIDE HANDLE | GB | |
||
| 128 | 807043 | 1 | WRENCH | 4mm | GB | |
|
| 129 | 370748 | 2 | SCREW | GB | |
||
| 130 | 807936 | 1 | WASHER | GB | |
||
| 131 | 797190 | 1 | SCREW.TEMP | GB | |
||
| 132 | 807224 | 4 | LEG | GB | |
||
| 133 | 90558556 | 1 | TIP | GB | |
||
| 134 | 807274-01 | 1 | PAD | GB | |
||
| 135 | 808765 | 1 | SCREW | GB | |
||
| 136 | 377443-01 | 1 | TIP | GB | |
||
| 137 | 371936 | 1 | SCREW | KA210 LD | GB | |
|
| 138 | 90554651N | 1 | BASE | KA210 LD | GB | |
|
| 139 | 371933 | 1 | FASTENER | KA210 LD | GB | |
|
| 140 | 371934 | 1 | PLATEN | KA210 LD | GB | |
|
| 141 | 371931 | 1 | BASE SA | KA210 LD | GB | |
|
| 142 | 807939 | 1 | PLATE | GB | |
||
| 143 | 575772-01 | 1 | SHOE SA | GB | |
