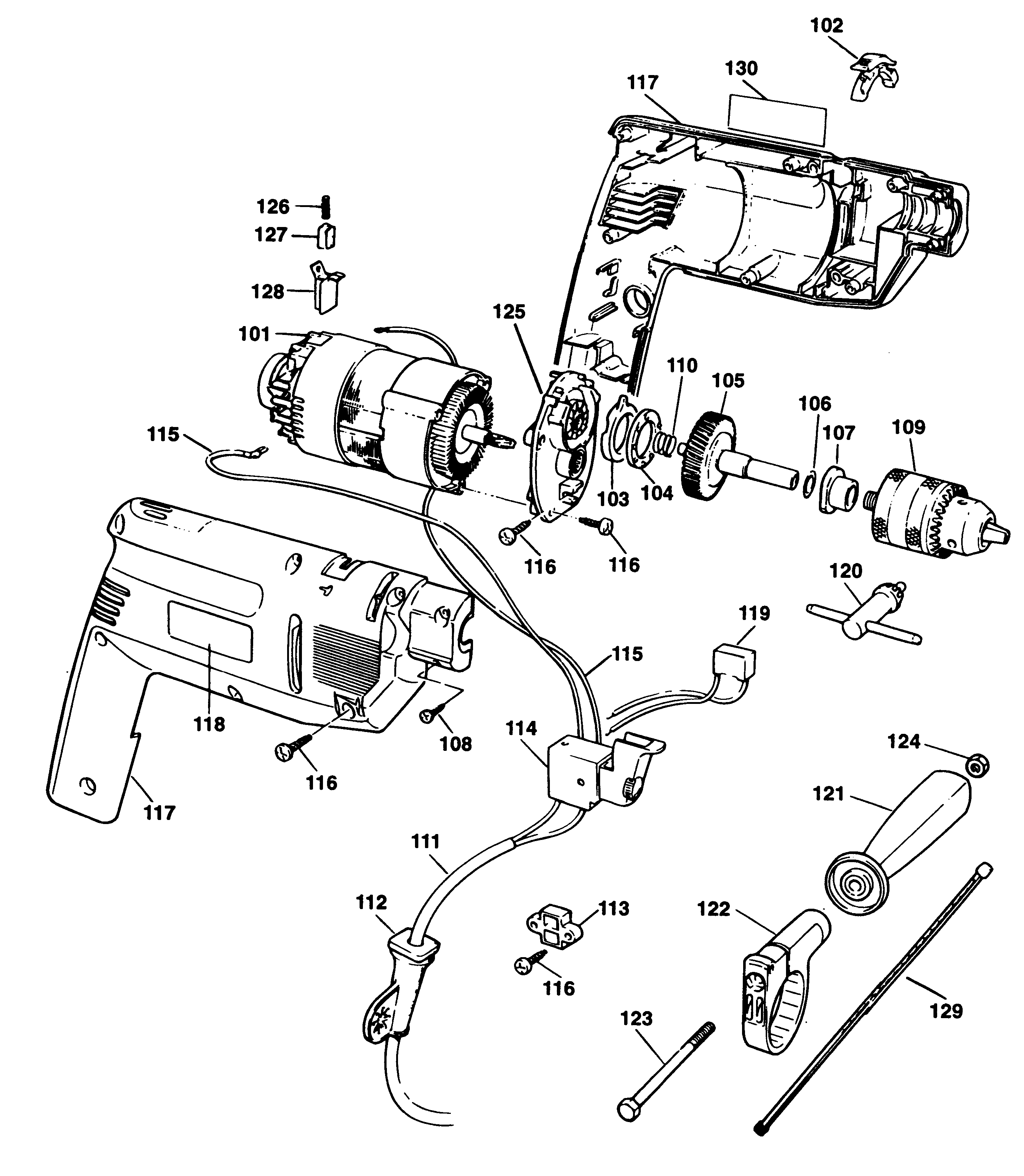

KD163E HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 869292-00 | 1 | OUTER FLANGE | GB |  |
||
| 3 | 398646-00 | 1 | ADAPTOR | GB |  |
||
| 5 | 497784-34 | 1 | MOTOR SA 9.6V | GB | |
||
| 6 | N088642 | 1 | BRUSH KIT 115V | GB | |
||
| 7 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 8 | 311908-03 | 1 | CHARGER SA | GB | |
||
| 9 | 244635-00 | 1 | DEFLECTOR | GB | |||
| 10 | 390691-01 | 1 | BIT SCREWDRIVER | GB | |
||
| 11 | 494543-00 | 1 | PISTON RING | GB | |
||
| 12 | 90528126 | 7 | FILTER | FVF90 | GB | |
|
| 13 | 583154-04 | 1 | HOSE SA | Blue | GB | ||
| 14 | 90563826 | 1 | BEARING PLATE | GB | |
||
| 15 | 584742-01 | 1 | PLATEN | GB | |
||
| 16 | N039739 | 1 | RATING PLATE | GB | |
||
| 101 | 376913-09 | 1 | MOTOR SA | GB | |
||
| 102 | 831215 | 1 | SELECTOR | GB | |
||
| 103 | 812962 | 1 | RING | GB | |
||
| 104 | 892261 | 1 | BEARING | GB | |
||
| 105 | 831770 | 1 | SPINDLE SA | GB | |
||
| 106 | 812979 | 1 | WASHER THRUST | GB | |
||
| 107 | 812973 | 1 | BEARING | GB | |
||
| 108 | 805035 | 2 | SCREW | GB | |
||
| 109 | 330033-27 | 1 | CHUCK | GB | |
||
| 110 | 821986 | 1 | SPRING | GB | |
||
| 111 | 330060-53 | 1 | CORDSET | GB | |
||
| 112 | 770236 | 1 | PROTECTOR | GB | |
||
| 113 | 994808 | 1 | CABLE CLAMP | GB | |
||
| 114 | 372976-49 | 1 | SWITCH KIT | Capax | GB | |
|
| 115 | 821832 | 2 | LEAD SA | GB | |
||
| 116 | 809961 | 11 | SCREW | GB | |
||
| 117 | 369048 | 1 | CLAMSHELL | GB | |
||
| 119 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 120 | 330034-07 | 1 | CHUCK KEY | GB | |
||
| 121 | 808402 | 1 | SIDE HANDLE | GB | |
||
| 122 | 808405 | 1 | CLAMP | GB | |
||
| 123 | 813918 | 1 | SCREW | GB | |
||
| 124 | 896369 | 1 | NUT | GB | |
||
| 125 | 823782 | 1 | COVER GEARCASE | GB | |
||
| 126 | 847709 | 2 | SPRING | GB | |
||
| 127 | 376143 | 2 | BRUSH | GB | |
||
| 128 | 812738 | 2 | BRUSH HOLDER | GB | |
||
| 129 | 808401 | 1 | DEPTH STOP | GB | |
