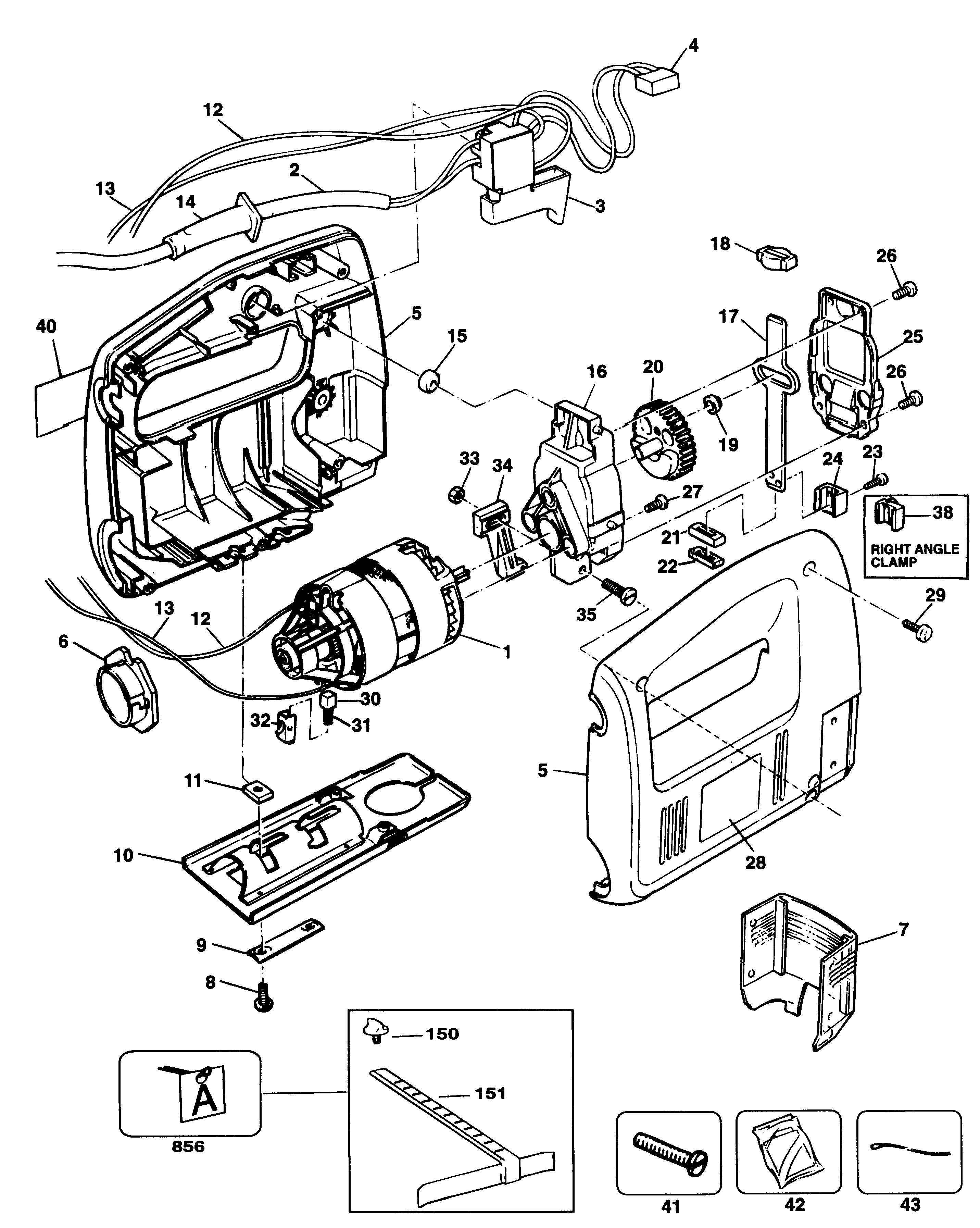

BD529 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576376-03 | 1 | MOTOR SA | DN51W(DE-AT) | GB |  |
|
| 1 | 576376-03 | 1 | MOTOR SA | GB | |
||
| 2 | 330060-00 | 1 | CORDSET (M/PLUG) | GB | |
||
| 2 | 330048-05 | 1 | CORDSET (EURO) | DN51W(DE-AT) | GB | |
|
| 3 | 374005 | 1 | SWITCH SA | GB | |
||
| 4 | 807285-06 | 1 | CAPACITOR | GB |  |
||
| 4 | 807285-06 | 1 | CAPACITOR | DN51W(DE-AT) | GB | |
|
| 5 | 806719-10 | 1 | CLAMSHELL | BD528 | GB | |
|
| 5 | 806719-10 | 1 | CLAMSHELL | BD531 | GB | |
|
| 5 | 806719-10 | 1 | CLAMSHELL | BD529 | GB | |
|
| 5 | 806719-14 | 1 | CLAMSHELL PAIR | CON529 | GB | |
|
| 6 | 805156 | 1 | OUTLET | GB | |
||
| 7 | 826918 | 1 | GUARD | GB | |
||
| 8 | 376409 | 2 | SCREW | GB | |
||
| 9 | 805981-00 | 1 | SUPPORT | GB | |
||
| 10 | 823909 | 1 | SHOE SA | GB | |
||
| 11 | 845591 | 2 | NUT | GB | |
||
| 12 | 811516 | 1 | LEAD | GB | |
||
| 13 | 811524 | 1 | LEAD | GB | |
||
| 14 | 770235 | 1 | PROTECTOR | GB | |
||
| 15 | 847185 | 4 | SEAL | GB | |
||
| 16 | 828569 | 1 | GEARCASE SA | GB | |
||
| 17 | 810946 | 1 | SHAFT | GB | |
||
| 18 | 810897 | 1 | BEARING | GB | |
||
| 19 | 492994-00 | 1 | ROLLER | GB | |
||
| 20 | 847211 | 1 | GEAR | GB | |
||
| 21 | 810893 | 1 | BEARING | GB | |
||
| 22 | 847216 | 1 | SEAL | GB | |
||
| 23 | 797123 | 2 | SCREW | GB | |
||
| 24 | 847182 | 1 | CLAMP | GB | |
||
| 25 | 822297 | 1 | COVER | GB | |
||
| 26 | 860094-05 | 1 | SCREW | GB | |
||
| 27 | 812171 | 2 | SCREW | GB | |
||
| 29 | 809961 | 5 | SCREW | GB | |
||
| 30 | 372523 | 2 | BRUSH | GB | |
||
| 31 | 847709 | 2 | SPRING | GB | |
||
| 32 | 846076 | 2 | BRUSHBOX | GB | |
||
| 33 | 892153 | 1 | NUT | GB | |
||
| 34 | 793242 | 1 | SUPPORT SA | GB | |
||
| 35 | 813403 | 1 | SCREW | GB | |
||
| 36 | 858274 | 1 | FENCE | PARTS NOT DRAWN | GB | |
|
| 37 | 812331 | 1 | KNOB | PARTS NOT DRAWN | GB | |
|
| 38 | 821542 | 1 | CLAMP | GB | |
||
| 39 | A5642 | 1 | ADAPTOR | PARTS NOT DRAWN | GB | |
|
| 41 | 990735 | 2 | SCREW | DN51W(DE-AT) | GB | |
|
| 42 | 747278 | 1 | PLATE | DN51W(DE-AT) | GB | |
