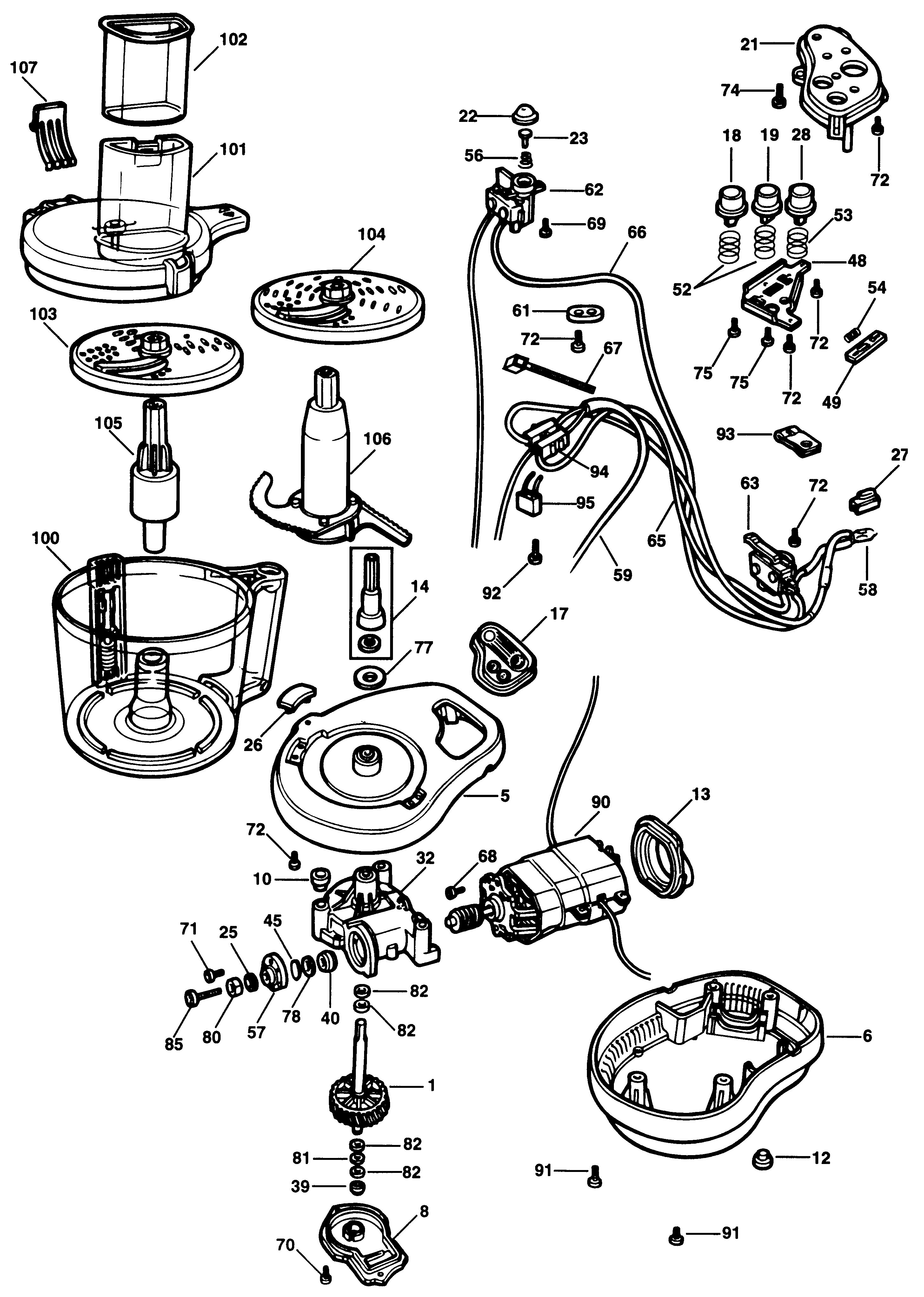

FP1000 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 560465-00 | 1 | DRIVE SHAFT | XJ |  |
||
| 5 | 560466-00 | 1 | HOUSING UPPER | XJ | |
||
| 6 | 560467-00 | 1 | HOUSING LOWER | XJ | |
||
| 8 | 560468-00 | 1 | GEARCASE COVER | XJ | |
||
| 10 | 560469-00 | 3 | RUBBER PAD | XJ | |
||
| 12 | 560470-00 | 4 | FOOT | XJ | |
||
| 13 | 560471-00 | 1 | SHROUD | XJ | |
||
| 14 | 560472-00 | 1 | SPINDLE SA | XJ | |
||
| 17 | 560473-00 | 1 | KEYBOARD | XJ | |
||
| 18 | 560550-00 | 1 | BUTTON OFF | XJ | |
||
| 19 | 560551-00 | 1 | BUTTON ON | XJ | |
||
| 21 | 560474-00 | 1 | BRACKET.INNER | XJ | |
||
| 22 | 560475-00 | 1 | BOOT | XJ | |
||
| 23 | 560476-00 | 1 | ACTUATOR | XJ | |
||
| 25 | 560477-00 | 1 | WASHER LOCK | XJ | |
||
| 26 | 560478-00 | 2 | STOP PLATE | XJ | |
||
| 27 | 560479-00 | 1 | HOLDER BULB | XJ | |
||
| 28 | 560480-00 | 1 | BUTTON | XJ | |
||
| 32 | 560481-00 | 1 | GEARCASE | XJ | |
||
| 39 | 560483-00 | 1 | BEARING | XJ | |
||
| 40 | 560484-00 | 1 | BEARING | XJ | |
||
| 45 | 560485-00 | 1 | PLATE THRUST | XJ | |
||
| 48 | 560486-00 | 1 | BRACKET.OUTER | XJ | |
||
| 49 | 560487-00 | 1 | SLIDER | XJ | |
||
| 52 | 560488-00 | 2 | SPRING | XJ | |
||
| 53 | 560489-00 | 1 | SPRING | XJ | |
||
| 54 | 560490-00 | 1 | SPRING | XJ | |
||
| 56 | 560491-00 | 1 | SPRING | XJ | |
||
| 57 | 560492-00 | 1 | COVER | XJ | |
||
| 58 | 560493-00 | 1 | NEON SA | XJ | |
||
| 61 | 560482-00 | 1 | CORD CLAMP | XJ | |
||
| 62 | 560495-00 | 1 | SWITCH SAFETY | XJ | |
||
| 63 | 560496-00 | 1 | SWITCH | XJ | |
||
| 65 | 560497-00 | 1 | LEAD RED | XJ | |
||
| 66 | 560498-00 | 1 | LEAD BLUE | XJ | |
||
| 67 | 560499-00 | 2 | TIE | XJ | |
||
| 68 | 560500-00 | 4 | SCREW | XJ | |
||
| 69 | 560501-00 | 2 | SCREW | XJ | |
||
| 70 | 560502-00 | 4 | SCREW | XJ | |
||
| 71 | 560503-00 | 4 | SCREW | XJ | |
||
| 72 | 560504-00 | 10 | SCREW | XJ | |
||
| 73 | 560505-00 | 3 | SCREW | XJ | |
||
| 74 | 560506-00 | 1 | SCREW | XJ | |
||
| 75 | 560507-00 | 2 | SCREW | XJ | |
||
| 77 | 560508-00 | 1 | RING | XJ | |
||
| 78 | 560509-00 | 1 | FELT SEAL | XJ | |
||
| 80 | 560510-00 | 1 | NUT | XJ | |
||
| 81 | 560511-00 | 1 | WASHER | XJ | |
||
| 82 | 560512-00 | 1 | WASHER | XJ | |
||
| 85 | 560513-00 | 1 | SCREW | XJ | |
||
| 90 | 560514-00 | 1 | MOTOR SA | XJ | |
||
| 91 | 560515-00 | 4 | SCREW.SPECIAL | XJ | |
||
| 92 | 560516-00 | 1 | SCREW | XJ | |
||
| 93 | 560517-00 | 1 | RETAINER | XJ | |
||
| 94 | 560518-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 95 | 560519-00 | 1 | CAPACITOR | XJ | |
||
| 100 | 560520-00 | 1 | BOWL | XJ | |
||
| 101 | 560521-00 | 1 | LID | XJ | |
||
| 102 | 560522-00 | 1 | FOOD PUSHER | XJ | |
||
| 103 | 560523-00 | 1 | DISC | XJ | |
||
| 104 | 560524-00 | 1 | DISC | XJ | |
||
| 105 | 560525-00 | 1 | ADAPTOR SA | XJ | |
||
| 106 | 560526-00 | 1 | CHOPPER | XJ | |
||
| 107 | 560527-00 | 1 | FOOD HOLDER | XJ | |
