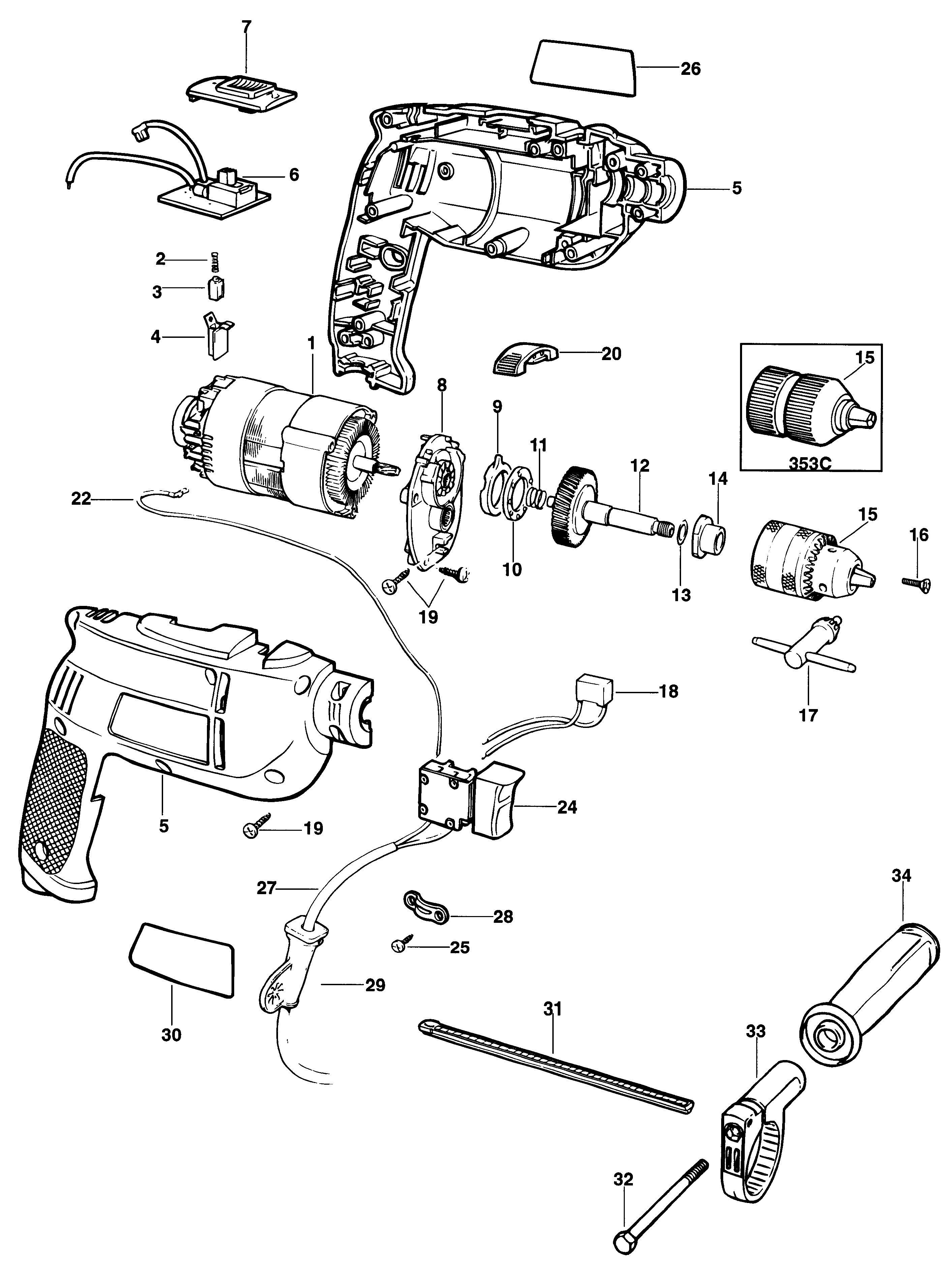

KD353 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376913-09 | 1 | MOTOR SA | GB |  |
||
| 1 | 376913-05 | 1 | MOTOR | TW ONLY | GB | |
|
| 1 | 5170029-46 | 1 | BALL | GB | |||
| 2 | 847709 | 2 | SPRING | GB |  |
||
| 2 | 586614-00 | 1 | BAFFLE | GB | |
||
| 3 | 376143 | 2 | BRUSH | GB | |
||
| 3 | 1004702-18 | 1 | GUARD | Type 27 | GB | |
|
| 4 | 812738 | 2 | BRUSH HOLDER | GB | |
||
| 4 | 579778-00 | 4 | FLANGE | GB | |
||
| 5 | 808362 | 1 | CLAMSHELL | GB | |
||
| 6 | 808367-00 | 1 | SWITCH | GB | |
||
| 6 | 808367-01 | 1 | SWITCH | TW ONLY | GB | ||
| 7 | 808369-01 | 1 | ACTUATOR | GB | |
||
| 8 | 823782 | 1 | COVER GEARCASE | GB | |
||
| 9 | 812962 | 1 | RING | GB | |
||
| 10 | 892261 | 1 | BEARING | GB | |
||
| 11 | 821986 | 1 | SPRING | GB | |
||
| 12 | 747323-49 | 1 | SPINDLE SA | GB | |
||
| 13 | 812979 | 1 | WASHER THRUST | GB | |
||
| 14 | 812973 | 1 | BEARING | GB | |
||
| 14 | 498099-00 | 1 | SCREW | GB | |
||
| 15 | 586589-00L | 1 | CHUCK KEYLESS | KD353C | GB | |
|
| 15 | 330033-23 | 1 | CHUCK 13MM | KD352 | GB | |
|
| 15 | 330033-23 | 1 | CHUCK 13MM | KD353 | GB | |
|
| 15 | 491506-00 | 5 | END CAP | GB | |
||
| 16 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 17 | 330034-07 | 1 | CHUCK KEY | KD352 | GB | |
|
| 17 | 330034-07 | 1 | CHUCK KEY | KD353 | GB | |
|
| 18 | 793192 | 1 | CAPACITOR SA | GB | |
||
| 19 | 809961 | 11 | SCREW | GB | |
||
| 20 | 808370 | 1 | SELECTOR | GB | |
||
| 20 | 1004742-76 | 1 | PINION | GB | |
||
| 21 | 90525962 | 1 | BOLT | GB | |||
| 22 | 371667 | 1 | LEAD | TW ONLY | GB | |
|
| 22 | 822215 | 1 | LEAD | GB | |
||
| 22 | 6010267-76 | 1 | SPRING | GB | |||
| 24 | 808365-00 | 1 | SWITCH | GB | |
||
| 24 | 808365-01 | 1 | SWITCH | TW ONLY | GB | |
|
| 24 | 581656-00 | 1 | PIN | GB | |
||
| 25 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 25 | 5170020-10 | 1 | MAIN UNIT SA | GB | |||
| 26 | 808371-10 | 1 | BRAND LABEL | KD353 | GB | |
|
| 26 | 5170028-08 | 2 | TANK | GB | |||
| 27 | 330060-53 | 1 | CORDSET | GB | |
||
| 27 | 1004569-02 | 1 | ARMATURE SA | GB | |
||
| 28 | 821070 | 1 | CORD CLAMP | GB | |
||
| 29 | 770235 | 1 | PROTECTOR | GB | |
||
| 29 | N106221-00 | 1 | BELLOWS | GB | |
||
| 30 | 6010267-90 | 1 | HOSE SA | GB | |||
| 31 | 808401 | 1 | DEPTH STOP | GB | |
||
| 31 | 6010037-17 | 1 | TUBE | FLUORESCENT | GB | |
|
| 32 | 813918 | 1 | SCREW | GB | |
||
| 32 | 6010408-43 | 1 | BASKET | UPPER | GB | ||
| 33 | 808405 | 1 | CLAMP | GB | |
||
| 33 | 5170033-56 | 2 | SCREW | GB | |
||
| 34 | 808402 | 1 | SIDE HANDLE | GB | |
||
| 34 | 90629876 | 1 | FIELD SA | GB | |
||
| 35 | 90587109 | 1 | LEADWIRE | GB | |||
| 36 | N512361 | 1 | SWITCH & PCB SA | GB | |
||
| 37 | 6010267-78 | 2 | FILTER | GB | |||
| 38 | 1004555-02 | 1 | MOTOR COVER | GB | |
||
| 39 | 3084355 | 2 | BRUSH SA | Patio | GB | |
|
| 43 | 90615125 | 1 | SWITCH & PCB SA | GB | |
||
| 44 | 90587068 | 1 | CHOKE LEAD SA | GB | |
||
| 45 | N041825 | 2 | MOTOR HOUSING SA | GB | |
||
| 46 | 6010267-86 | 1 | END CAP | GB | |||
| 47 | N020087 | 1 | HOUSING & COVER | Non EMI | GB | ||
| 48 | 6010037-16 | 1 | HOLDER | TUBE HOLDER (BOTTOM) | GB | |
|
| 49 | 279558-00 | 1 | PLATE | GB | |
||
| 50 | 1002097-00 | 1 | REFLECTOR SA | GB | |
||
| 51 | 6010389-29 | 1 | CONE | GB | |
||
| 52 | N133192 | 1 | RATING PLATE | GB | |||
| 54 | 6010266-98 | 1 | PCB | GB | |
||
| 55 | 1002098-00 | 1 | BULB | GB | |||
| 56 | 90591863 | 1 | GUARD LOWER | GB | |
||
| 861 | N501802 | 1 | KITBOX | GB | |
