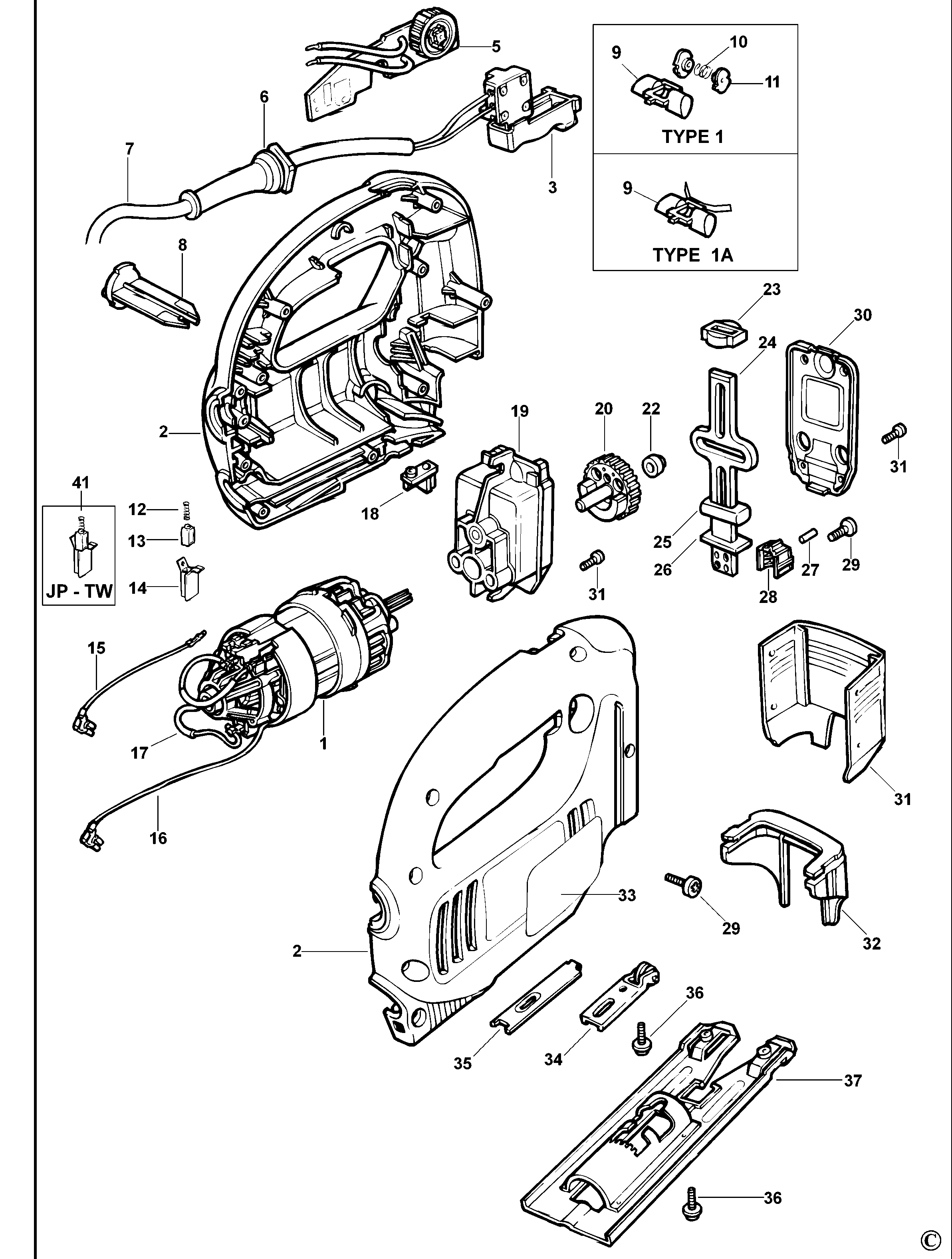

374452 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576376-03 | 1 | MOTOR SA | A9 | GB |  |
|
| 1 | 576376-03 | 1 | MOTOR SA | A7 | GB | |
|
| 1 | 576376-03 | 1 | MOTOR SA | XE | GB | |
|
| 1 | 571299-17 | 1 | MOTOR SA | XD | GB | |
|
| 1 | 571299-17 | 1 | MOTOR SA | GB | |
||
| 2 | 580151-01 | 1 | CLAMSHELL SET | GB | |
||
| 3 | 809483-01 | 1 | SWITCH | GB | |
||
| 5 | 368329-03 | 1 | PCB SA | GB | |
||
| 5 | 368329-03 | 1 | PCB SA | QS | GB | |
|
| 5 | 368329-03 | 1 | PCB SA | A9 | GB | |
|
| 5 | 368329-03 | 1 | PCB SA | XD | GB | |
|
| 5 | 368329-03 | 1 | PCB SA | XE | GB | |
|
| 5 | 368329-03 | 1 | PCB SA | A7 | GB | |
|
| 6 | 770235 | 1 | PROTECTOR | GB |  |
||
| 7 | 330080-06 | 1 | CORDSET | XE | GB | |
|
| 7 | 330080-03 | 1 | CORDSET | QS | GB | |
|
| 7 | 330080-05 | 1 | CORDSET | A7 | GB | |
|
| 7 | 330060-53 | 1 | CORDSET | GB | |
||
| 7 | 330060-53 | 1 | CORDSET | XD | GB | |
|
| 7 | 372067-01 | 1 | CORDSET | A9 | GB | |
|
| 8 | 369328 | 1 | REGULATOR | GB | |
||
| 9 | 370282-00 | 1 | LOCK SA | TYPE 1 | GB | |
|
| 10 | 748158 | 1 | SPRING | GB | |
||
| 11 | 370966 | 2 | WASHER | GB | |
||
| 12 | 847709 | 2 | SPRING | GB | |
||
| 13 | 372523 | 2 | BRUSH | GB | |
||
| 14 | 846076 | 2 | BRUSHBOX | GB | |
||
| 15 | 811679 | 1 | LEAD | GB | |
||
| 15 | 811679 | 1 | LEAD | QS | GB | |
|
| 15 | 811679 | 1 | LEAD | A9 | GB | |
|
| 15 | 811679 | 1 | LEAD | XD | GB | |
|
| 15 | 811679 | 1 | LEAD | XE | GB | |
|
| 15 | 811679 | 1 | LEAD | A7 | GB | |
|
| 16 | 811666 | 1 | LEAD | GB | |
||
| 16 | 811666 | 1 | LEAD | QS | GB | |
|
| 16 | 811666 | 1 | LEAD | A9 | GB | |
|
| 16 | 811666 | 1 | LEAD | XD | GB | |
|
| 16 | 811666 | 1 | LEAD | XE | GB | |
|
| 16 | 811666 | 1 | LEAD | A7 | GB | |
|
| 17 | 828446 | 2 | CHOKE SA | GB | |
||
| 18 | 369620 | 1 | NUT | GB | |
||
| 19 | 368564 | 1 | GEARCASE | GB | |
||
| 20 | 368562 | 1 | GEAR | GB | |
||
| 21 | 812171 | 6 | SCREW | GB | |
||
| 22 | 492994-00 | 1 | ROLLER | GB | |
||
| 23 | 810897 | 1 | BEARING | GB | |
||
| 24 | 368465 | 1 | SHAFT | GB | |
||
| 25 | 810893 | 1 | BEARING | GB | |
||
| 26 | 847216 | 1 | SEAL | GB | |
||
| 27 | 330041-11 | 2 | PIN | GB | |
||
| 28 | 368382-00 | 1 | CLAMP | GB | |
||
| 29 | 797123 | 2 | SCREW | GB | |
||
| 30 | 368587 | 1 | COVER | GB | |
||
| 31 | 369008 | 1 | GUARD | GB | |
||
| 32 | 370584 | 1 | GUARD | GB | |
||
| 33 | 369002-03 | 1 | BRAND LABEL | KS632E | GB | |
|
| 33 | 369002-14 | 1 | BRAND LABEL | 374452 | GB | |
|
| 34 | 368375-01 | 1 | SUPPORT SA | GB | |
||
| 35 | 368857-00 | 1 | CLAMP | GB | |
||
| 36 | 376409 | 2 | SCREW | GB | |
||
| 37 | 369304-00 | 1 | SHOE SA | GB | |
||
| 39 | 747329 | 9 | SCREW | GB | |
