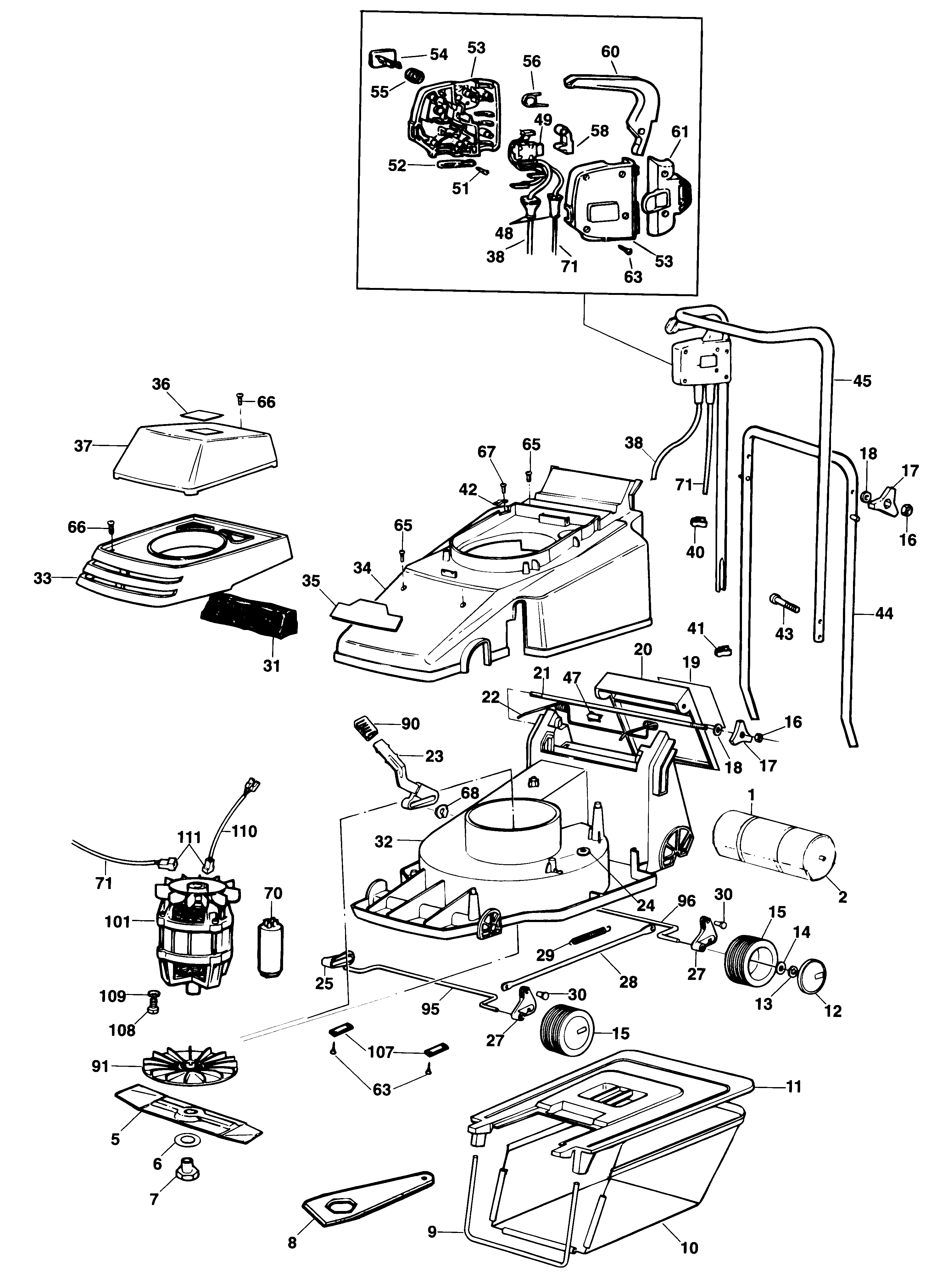

GR360 ROTARY MOWER Type H4C | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 832222 | 1 | ROLLER LH | GB |  |
||
| 2 | 793060 | 1 | ROLLER RH | GB | |
||
| 5 | 748872 | 1 | BLADE | GB | |
||
| 6 | 844390 | 1 | WASHER | GB | |
||
| 7 | 805596 | 1 | BLADE BOLT | GB | |
||
| 8 | 844249 | 1 | SPANNER | GB | |
||
| 9 | 832653 | 1 | AXLE GRASSBAG | GB | |
||
| 10 | 799236 | 1 | GRASSBAG | GB | |
||
| 11 | 832204-01 | 1 | GRASSBAG TOP | GB | |
||
| 12 | 832224 | 4 | COVER | GB | |
||
| 13 | 845785 | 4 | RETAINER | GB | |
||
| 14 | 792612 | 4 | WASHER | GB | |
||
| 15 | 832223-01 | 4 | WHEEL | GB | |
||
| 16 | 830762 | 4 | NUT | GB | |
||
| 17 | 830661 | 4 | KNOB | GB | |
||
| 18 | 830832 | 4 | WASHER M6 | GB | |
||
| 19 | 832207 | 1 | WARNING LABEL | GB | |
||
| 20 | 832211-01 | 1 | GRASSFLAP | GB | |
||
| 21 | 832213 | 1 | BAR | GB | |
||
| 22 | 844248 | 1 | SPRING | GB | |
||
| 23 | 844255 | 1 | ADJUSTER SA | GB | |
||
| 24 | 845785 | 1 | RETAINER | GB | |
||
| 25 | 832237 | 1 | BRACKET | GB | |
||
| 27 | 839398 | 2 | BRACKET | GB | |
||
| 28 | 375486 | 1 | BAR | GB | |
||
| 29 | 844945 | 1 | SPRING | GB | |
||
| 30 | 793648 | 2 | PIN | GB | |
||
| 31 | 832221 | 1 | FILTER | GB | |
||
| 32 | 373604-01 | 1 | CUTTER DECK | GB | |
||
| 33 | 832532-01 | 1 | COLLAR | GB | |
||
| 34 | 375040-01 | 1 | CUTTER COVER | GB | |
||
| 35 | 373108 | 1 | BRAND LABEL | GB | |
||
| 36 | 373111-01 | 1 | LABEL | GB | |
||
| 37 | 374756-01 | 1 | COVER SA | GB | |
||
| 38 | 799370-09 | 1 | CABLE M/PLUG 16M | GB | |
||
| 40 | 915859 | 1 | CLIP CABLE | GB | |||
| 41 | 795735 | 1 | CABLE CLAMP | GB | |
||
| 42 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 43 | 830664 | 2 | BOLT | GB | |
||
| 44 | 839952 | 1 | LOWER HANDLE | GB | |
||
| 45 | 796116 | 1 | HANDLE UPPER | GB | |
||
| 48 | 770235 | 2 | PROTECTOR | GB | |
||
| 49 | 794164 | 1 | SWITCH | GB | |
||
| 51 | 810269 | 3 | SCREW | GB | |
||
| 52 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 53 | 799361-03 | 1 | CLAMSHELL | GB | |
||
| 54 | 373092 | 1 | BUTTON LOCK-OFF | GB | |
||
| 55 | 827137 | 1 | SPRING | GB | |
||
| 56 | 827135 | 1 | SPRING | GB | |
||
| 58 | 797929 | 1 | ACTUATOR | GB | |
||
| 60 | 373094 | 1 | LEVER | GB | |
||
| 61 | 799364 | 1 | PLATE | GB | |
||
| 63 | 849256 | 10 | SCREW | GB | |
||
| 65 | 330019-13 | 8 | SCREW | M4X19 T20 | GB | |
|
| 66 | 747329 | 3 | SCREW | GB | |
||
| 67 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 68 | 795489 | 1 | RETAINER | GB | |
||
| 70 | 374435 | 1 | CAPACITOR | GB | |||
| 71 | 805414-04 | 1 | CABLE SA | GB | |
||
| 90 | 844254 | 1 | GRIP | GB | |
||
| 91 | 798331-01 | 1 | IMPELLOR | GB | |
||
| 95 | 796672 | 1 | AXLE | GB | |
||
| 96 | 796673 | 1 | AXLE | GB | |
||
| 101 | 374031-04 | 1 | MOTOR SA | GB | |
||
| 107 | 805280 | 1 | CLAMPING BAR | GB | |
||
| 108 | 844253 | 4 | SCREW | GB | |
||
| 109 | 891070 | 4 | WASHER | GB | |
||
| 110 | 371903-02 | 1 | LEAD SA | GB | |
||
| 111 | 861714-00 | 1 | CONNECTOR | GB | |
