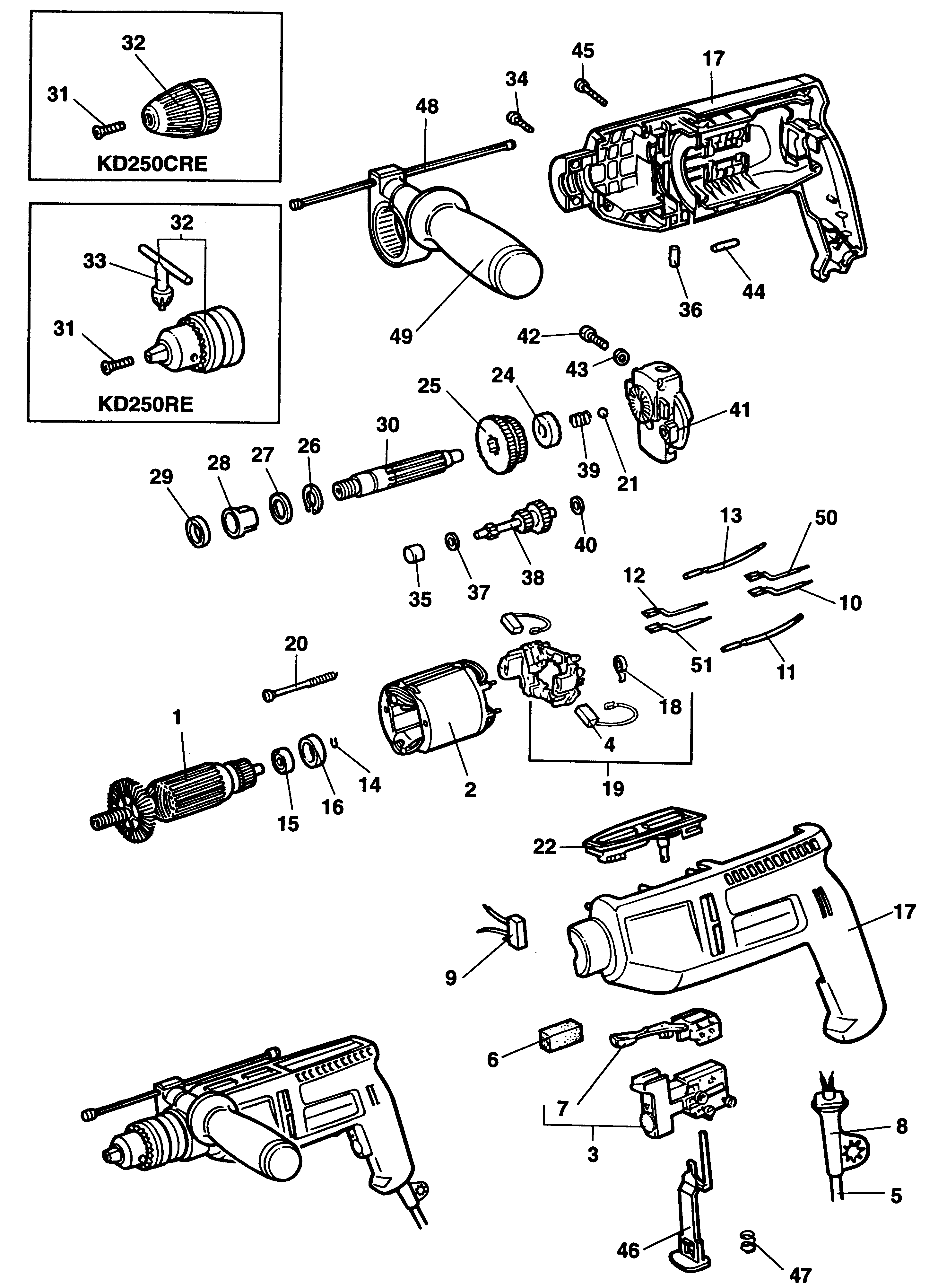

KD250 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949841-08 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 949847-11 | 1 | FIELD 230V | GB | |
||
| 3 | 941460-02 | 1 | SWITCH LOCK-ON | GB | |
||
| 4 | 949830-02 | 2 | BRUSH | GB |  |
||
| 5 | 949770-40 | 1 | CORDSET | GB | |
||
| 6 | 930026 | 1 | FOAM | GB | |
||
| 7 | 939791 | 1 | LEVER | GB | |
||
| 8 | 770236 | 1 | PROTECTOR | KD250RE | GB | |
|
| 8 | 916968 | 1 | CORD PROTECTOR | KD250CRE | GB | |
|
| 9 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 10 | 945402-02 | 1 | LEAD | GB | |
||
| 11 | 949801-26 | 1 | LEAD | GB | |||
| 12 | 945402-01 | 1 | LEAD | GB | |
||
| 13 | 949801-21 | 1 | LEAD | GB | |
||
| 14 | 939624-00 | 1 | RING | GB | |
||
| 15 | 330003-02 | 1 | BEARING | GB | |
||
| 16 | 930275-00 | 1 | SLEEVE | GB | |
||
| 17 | 940453-03 | 1 | CLAMSHELL | GB | |
||
| 18 | 930090-00 | 1 | BRUSH SPRING | GB | |
||
| 19 | 949860-15 | 1 | BRUSH HOLDER SA | GB | |
||
| 20 | 930752-00 | 1 | SCREW | GB | |
||
| 21 | 930012 | 1 | BALL | GB | |
||
| 22 | 939411-01 | 1 | SELECTOR SA | GB | |
||
| 24 | 945706-00 | 1 | RATCHET | GB | |
||
| 25 | 940475 | 1 | GEAR | GB | |
||
| 26 | 930098-00 | 1 | RETAINER | GB | |
||
| 27 | 949876-02 | 1 | WASHER | GB | |
||
| 29 | 945032-00 | 1 | WASHER FELT | GB | |
||
| 30 | 940787-00 | 1 | SPINDLE | GB | |
||
| 31 | 945013-00 | 1 | SCREW | GB | |
||
| 32 | 5140071-68 | 1 | CHUCK 13MM | KD250RE | GB | |
|
| 32 | 583096-02 | 1 | CHUCK SA | KD250CRE | GB | |
|
| 33 | 330034-07 | 1 | CHUCK KEY | KD250RE | GB | |
|
| 34 | 930284-01 | 2 | SCREW | GB | |
||
| 35 | 330004-19 | 1 | BEARING | GB | |
||
| 36 | 939622 | 1 | RUBBER | GB | |
||
| 37 | 930102-00 | 1 | WASHER | GB | |
||
| 38 | 940489 | 1 | GEAR | GB | |
||
| 39 | 934962 | 1 | SPRING | GB | |
||
| 40 | 931407-00 | 1 | WASHER | GB | |
||
| 42 | 938140 | 3 | SCREW | GB | |
||
| 43 | 932839-00 | 3 | WASHER | GB | |
||
| 44 | 941374-01 | 2 | RUBBER | GB | |
||
| 45 | 930079-01 | 9 | SCREW | GB | |
||
| 46 | 944020 | 1 | LEVER | GB | |
||
| 47 | 748158 | 1 | SPRING | GB | |
||
| 48 | 943215 | 1 | DEPTH STOP | GB | |
||
| 49 | 943210 | 1 | HANDLE SIDE SA | GB | |
||
| 50 | 949801-24 | 1 | LEAD | GB | |
||
| 51 | 949801-25 | 1 | LEAD | GB | |
