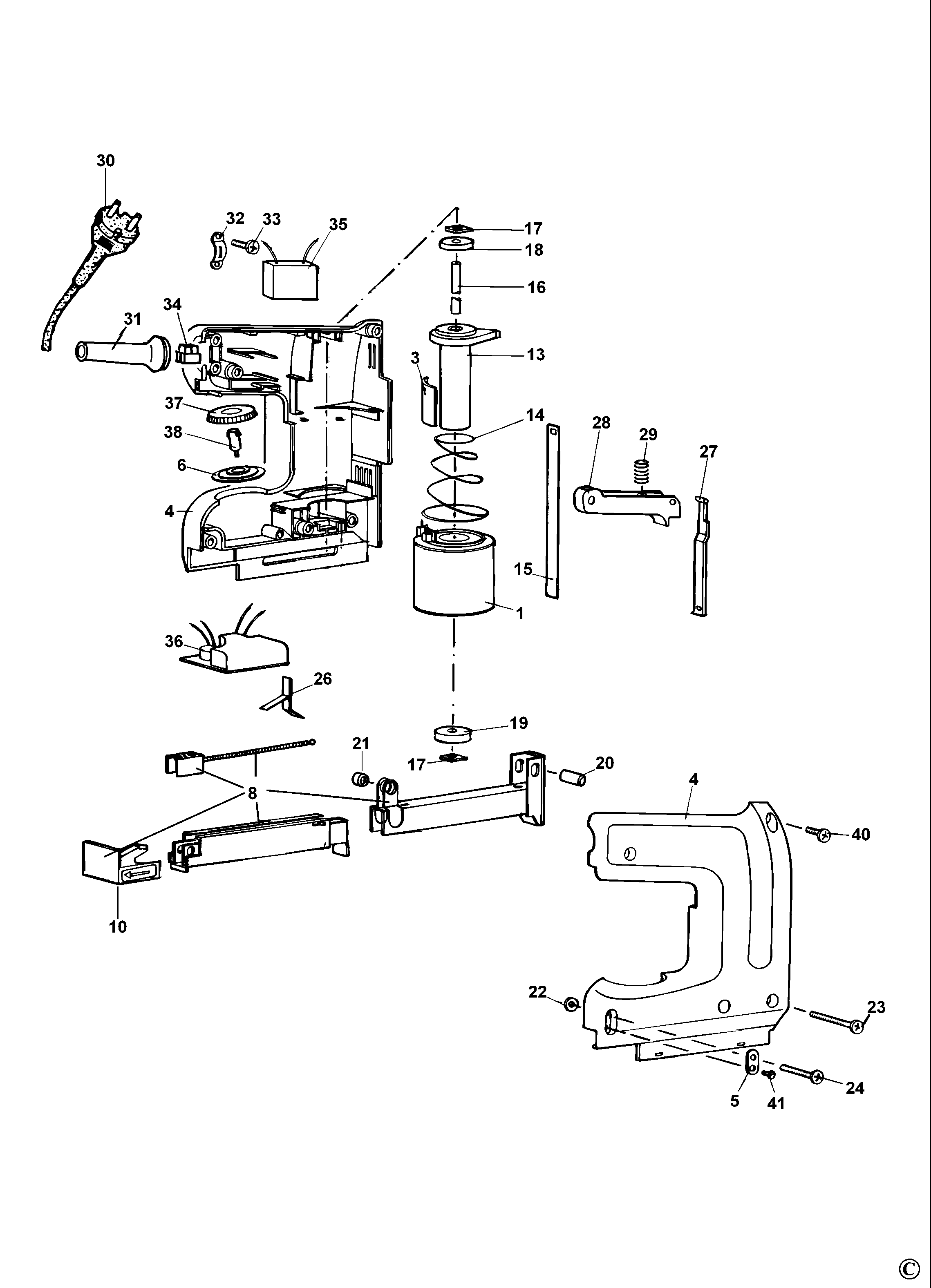

KX418E TACKER Type 1 & 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 591235-00 | 1 | REPAIR KIT | Inc 36 + 1 + 27 | GB |  |
|
| 3 | 918368 | 1 | INSERT | GB | |
||
| 4 | 591214-00 | 1 | CLAMSHELL SET | Orange | GB | |
|
| 4 | 591214-00 | 1 | CLAMSHELL SET | Orange | GB | |
|
| 5 | 918438 | 1 | SPACER | GB | |
||
| 6 | 321686 | 1 | INSERT | GB | |
||
| 8 | 322631-49 | 1 | MAGAZINE SA | GB | |
||
| 10 | 321915 | 1 | GUIDE | GB | |||
| 13 | 878950 | 1 | PISTON SA | GB | |
||
| 14 | 917904 | 1 | SPRING | GB | |
||
| 15 | 917858 | 1 | RECIPROCATOR | GB | |
||
| 16 | 875527 | 1 | GUIDE | GB | |
||
| 17 | 917859 | 2 | GUIDE | GB | |
||
| 18 | 917860 | 1 | RUBBER | GB | |
||
| 19 | 917897 | 1 | RUBBER | GB | |
||
| 20 | 917898 | 1 | BUSH | GB | |
||
| 21 | 917899 | 1 | BUSH | GB | |
||
| 23 | 911442 | 1 | RETAINER | GB | |
||
| 24 | 911441 | 1 | SCREW | GB | |
||
| 26 | 875848 | 1 | LEVER | GB | |
||
| 27 | 917862 | 1 | ROD | GB | |
||
| 28 | 591215-00 | 1 | TRIGGER | GB | |
||
| 28 | 917861 | 1 | TRIGGER | GB | |
||
| 29 | 915448-10 | 1 | SPRING | GB | |
||
| 30 | 589164-08 | 1 | CORDSET | GB | |
||
| 31 | 770235 | 1 | PROTECTOR | GB |  |
||
| 32 | 821070 | 1 | CORD CLAMP | GB | |
||
| 33 | 323924-08 | 2 | SCREW | GB | |
||
| 34 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 35 | 917911 | 1 | CAPACITOR | GB | |
||
| 36 | 591232-00 | 1 | SERVICE KIT | Inc 36 + 27 | GB | |
|
| 37 | 321688 | 1 | KNOB | GB | |
||
| 38 | 917916 | 1 | AXLE | GB | |
||
| 40 | 911325 | 3 | SCREW | GB | |
||
| 41 | 321693 | 1 | SCREW | GB | |
