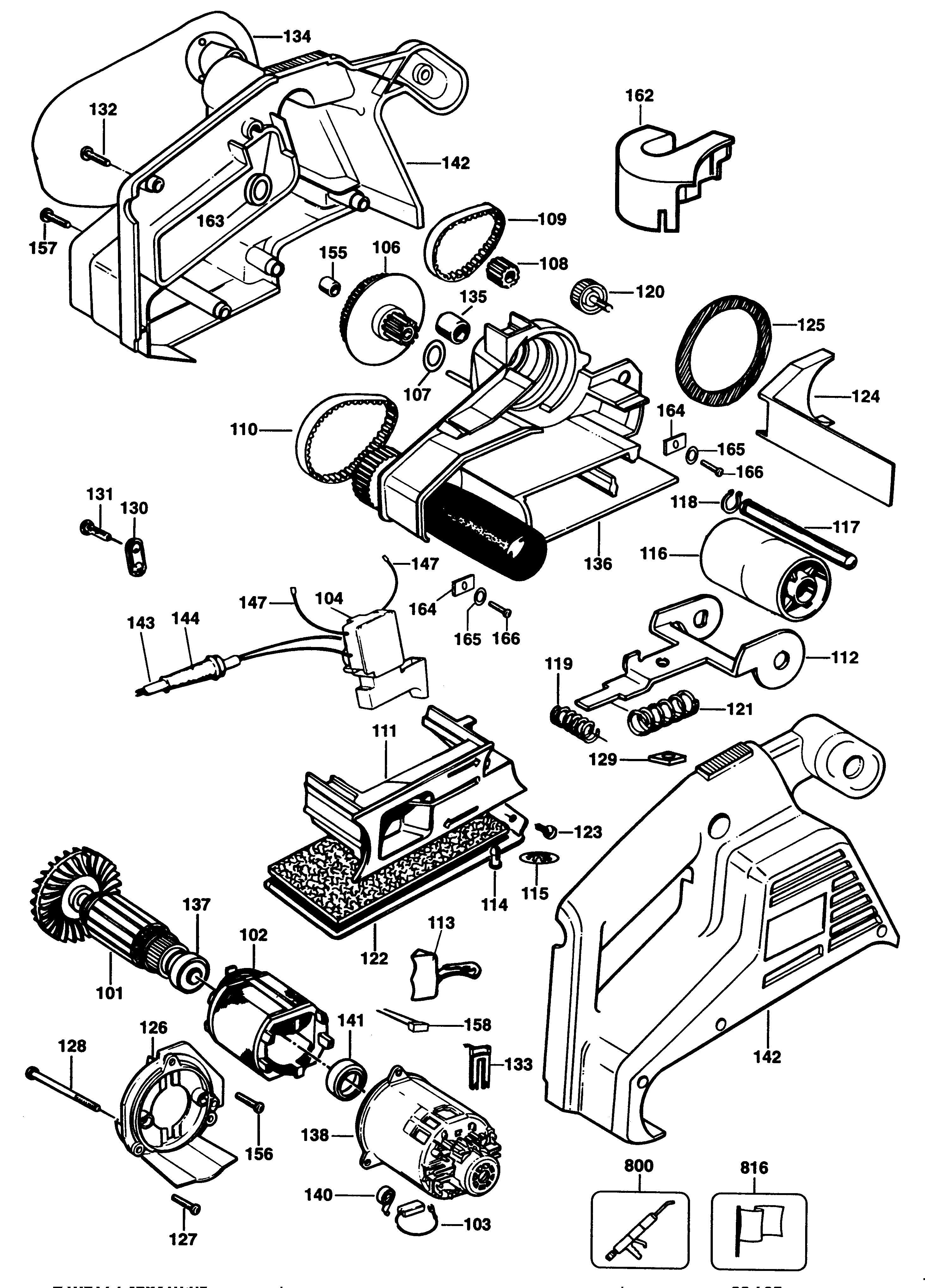

KA75 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 323968-00 | 1 | ARMATURE | GB |  |
||
| 102 | 376007-49 | 1 | MOTOR SA | GB | |
||
| 103 | 324016-00 | 2 | BRUSH | GB | |
||
| 104 | 369735-49 | 1 | SWITCH KIT | GB | |
||
| 106 | 371512 | 1 | GEAR | GB | |
||
| 107 | 891066 | 2 | WASHER | GB | |
||
| 108 | 323902-00 | 1 | PULLEY | GB | |
||
| 109 | 323909-00 | 1 | BELT | GB | |
||
| 110 | 323909-01 | 1 | BELT | GB | |
||
| 111 | 323917-00 | 1 | HOUSING | GB | |
||
| 112 | 916919 | 1 | HOLDER | GB | |
||
| 113 | 325118-00 | 1 | LEVER | GB | |
||
| 114 | 916929 | 1 | RIVET | GB | |
||
| 115 | 916105 | 1 | RING | GB | |
||
| 116 | 873100 | 1 | ROLLER | GB | |
||
| 117 | 878138 | 1 | AXLE | GB | |
||
| 118 | 916930 | 1 | RING | GB | |
||
| 119 | 916925 | 1 | SPRING | GB | |
||
| 120 | 322095 | 1 | ADJUSTER | GB | |
||
| 121 | 916926 | 1 | SPRING | GB | |
||
| 122 | 323916-49 | 1 | PLATE SA | GB | |
||
| 123 | 911059 | 2 | SCREW | GB | |
||
| 126 | 324947-00 | 1 | HOLDER | GB | |
||
| 127 | 324006-01 | 2 | SCREW | GB | |
||
| 128 | 916231 | 2 | SCREW | GB | |
||
| 129 | 914079 | 1 | NUT | GB | |
||
| 130 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 131 | D911324 | 2 | SCREW | GB | |
||
| 132 | 330065-08 | 7 | SCREW | M4x18 T20 | GB | |
|
| 133 | 323858-01 | 1 | CLIP | GB | |
||
| 134 | 369641-01 | 1 | BAG DUST SA | GB | |
||
| 135 | 330004-18 | 1 | BEARING | GB | |
||
| 136 | 325223-00 | 1 | CASTING SA | GB | |
||
| 137 | 605040-63 | 1 | BEARING | GB | |
||
| 138 | 326059-00 | 1 | HOUSING | GB | |
||
| 140 | 872843 | 2 | SPRING | GB | |
||
| 141 | 323910-00 | 1 | CAP | GB | |
||
| 142 | 368829-09 | 1 | CLAMSHELL | GB | |
||
| 143 | 589164-08 | 1 | CORDSET | GB | |
||
| 144 | 770235 | 1 | PROTECTOR | GB | |
||
| 147 | 323768-07 | 2 | LEAD 180MM | GB | |
||
| 155 | 330004-19 | 2 | BEARING | GB | |
||
| 156 | 330045-11 | 1 | SCREW | GB | |
||
| 157 | 954183 | 2 | SCREW | GB | |
||
| 158 | 320842-06 | 1 | CAPACITOR | GB | |
||
| 162 | 325735-00 | 1 | ADAPTOR | GB | |
||
| 163 | 324819-00 | 1 | WASHER | GB | |
||
| 164 | 325514-00 | 2 | PLATE | GB | |
||
| 165 | 916702 | 2 | WASHER | GB | |
||
| 166 | 324006-00 | 2 | SCREW | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
