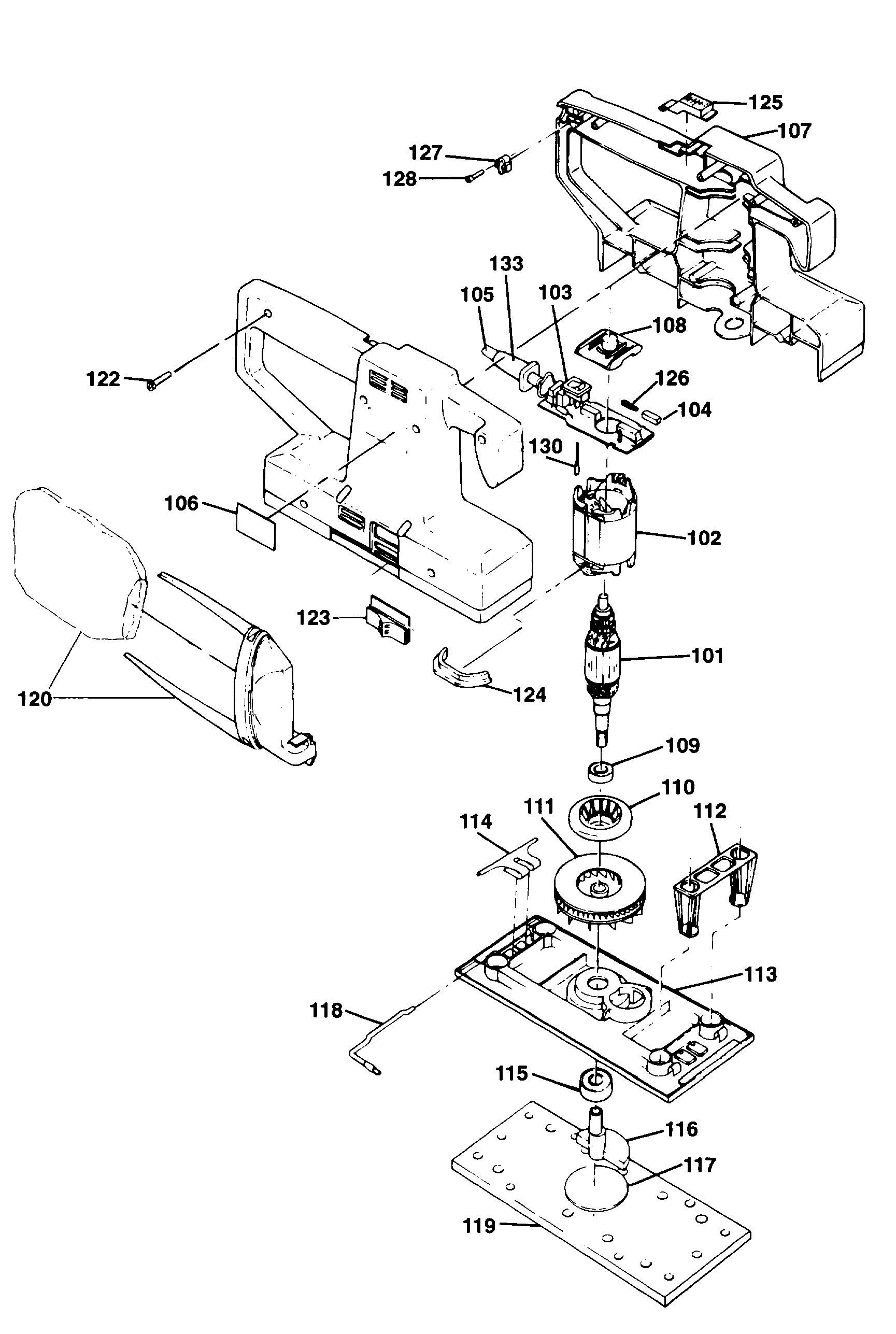

KA273 ORBITAL SANDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 795865-09 | 1 | ARMATURE | TYPE 3 | GB |  |
|
| 102 | 811657-49 | 1 | FIELD | B1-KR | GB | |
|
| 102 | 811657-49 | 1 | FIELD | XD | GB | |
|
| 102 | 811656-49 | 1 | FIELD 240V | GB | |
||
| 102 | 373006-03 | 1 | FIELD | TYPE 3 | GB | |
|
| 103 | 578462-00 | 1 | PCB | GB | |
||
| 104 | 736703 | 2 | BRUSH | GB |  |
||
| 105 | 330060-53 | 1 | CORDSET | GB | |
||
| 105 | 330060-53 | 1 | CORDSET | XD | GB | |
|
| 105 | 330080-03 | 1 | CORDSET | B1-KR | GB | |
|
| 107 | 374129-01 | 1 | CLAMSHELL | GB | |
||
| 108 | 372946-49 | 1 | BEARING SA | GB | |
||
| 109 | 330003-19 | 1 | BEARING | GB | |
||
| 110 | 735653 | 1 | CAGE | GB | |
||
| 111 | 736246 | 1 | FAN | TYPE 1 | GB | |
|
| 111 | 370975 | 1 | FAN | TYPE 2 | GB | |
|
| 111 | 370975 | 1 | FAN | TYPE 3 | GB | |
|
| 112 | 733668 | 1 | STUD | GB | |
||
| 113 | 370533-49 | 1 | BASE SA | TYPE 2 | GB | |
|
| 113 | 370533-49 | 1 | BASE SA | TYPE 3 | GB | |
|
| 114 | 748364 | 2 | GRIP | GB | |
||
| 115 | 915541 | 1 | BEARING | TYPE 1 | GB | |
|
| 115 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | TYPE 3 | GB | |
| 115 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | TYPE 2 | GB | |
| 116 | 370539 | 1 | ECCENTRIC | TYPE 2 | GB | |
|
| 116 | 370539 | 1 | ECCENTRIC | TYPE 3 | GB | |
|
| 116 | 370539 | 1 | ECCENTRIC | TYPE 1 | GB | |
|
| 117 | 733563 | 1 | PAD | GB | |
||
| 118 | 745700 | 2 | LEVER | GB | |
||
| 119 | 736516 | 1 | RUBBER PAD | GB | |
||
| 120 | 831865 | 1 | BAG SA | GB | |
||
| 122 | 849256 | 8 | SCREW | GB | |
||
| 123 | 733669 | 1 | COVER | GB | |
||
| 124 | 372944 | 1 | INSULATOR | TYPE 3 | GB | |
|
| 124 | 823726 | 1 | INSULATOR | TYPE 1 | GB | |
|
| 124 | 823726 | 1 | INSULATOR | TYPE 2 | GB | |
|
| 125 | 578252-00 | 1 | ACTUATOR | GB | |
||
| 126 | 830501 | 2 | SPRING | GB | |
||
| 127 | 994808 | 1 | CABLE CLAMP | GB | |
||
| 128 | 849256 | 2 | SCREW | GB | |
||
| 130 | 823723 | 4 | CONNECTOR | GB | |
||
| 133 | 770235 | 1 | PROTECTOR | GB | |
||
| 134 | 809928 | 1 | BRAND LABEL | GB | |
