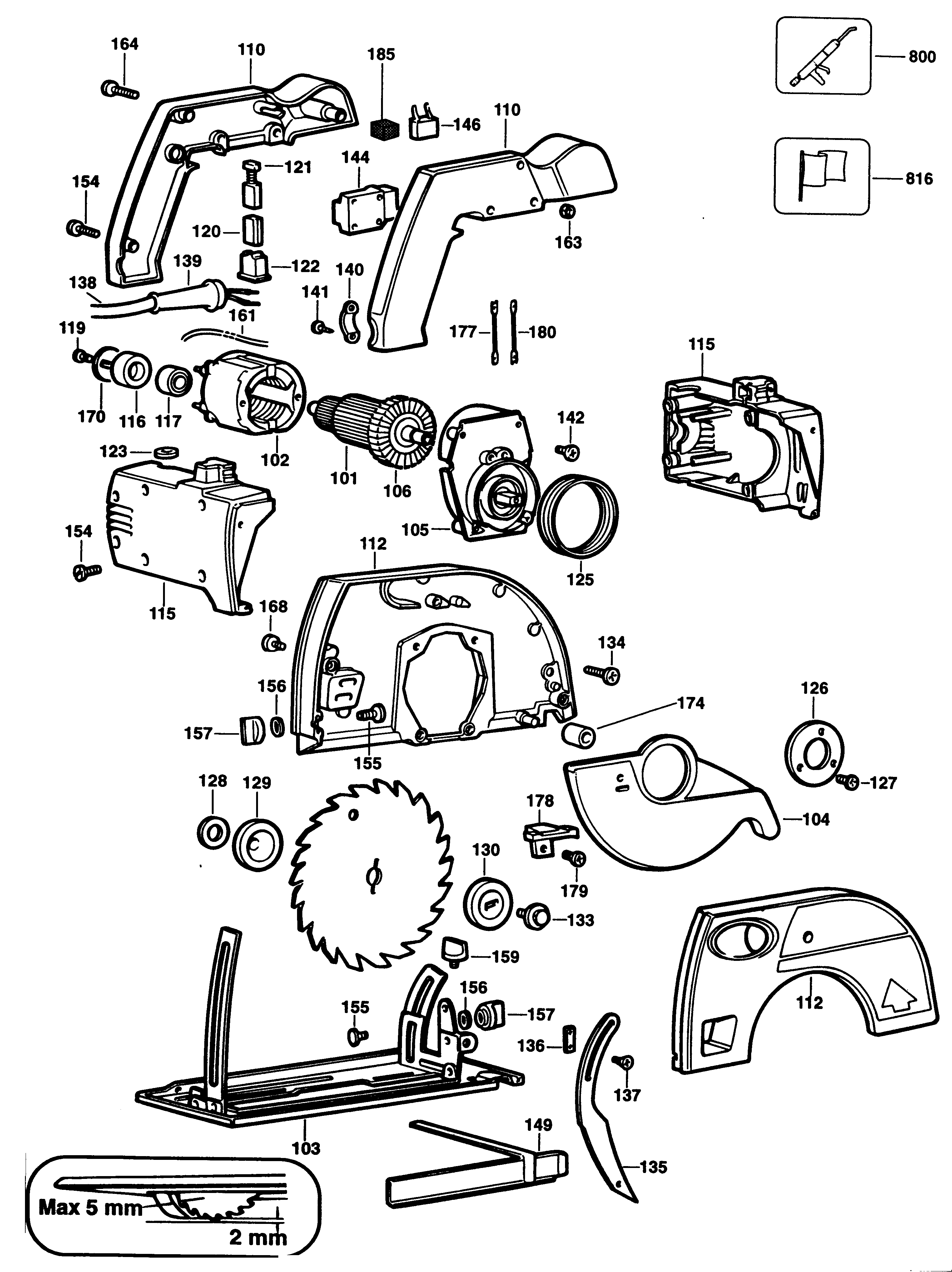

KS846 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 368877-02 | 1 | ARMATURE SA | GB |  |
||
| 102 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 103 | 325137-00 | 1 | SHOE SA | GB | |
||
| 104 | 325182-00 | 1 | GUARD | GB | |
||
| 105 | 879348 | 1 | GEAR SA | GB | |
||
| 106 | 918909 | 1 | FAN | GB | |
||
| 110 | 572283-00 | 1 | HANDLE | Jade Green | GB | |
|
| 112 | 325130-00 | 1 | GUARD SA | GB | |
||
| 115 | 322841-00 | 1 | CLAMSHELL | GB | |
||
| 116 | 870052 | 1 | SLEEVE | GB |  |
||
| 117 | 330003-31 | 1 | BEARING | GB | |
||
| 119 | 911276 | 1 | SCREW | GB | |
||
| 120 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 121 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 122 | 321328 | 2 | INSERT | GB | |
||
| 123 | 321345 | 2 | BRUSH CAP | GB | |
||
| 125 | 914816 | 1 | SPRING | GB | |
||
| 126 | 914632 | 1 | COVERPLATE | GB | |||
| 127 | 911246 | 3 | SCREW | GB | |
||
| 128 | 910623 | 1 | WASHER | GB | |
||
| 129 | 918191 | 1 | FLANGE | GB | |
||
| 130 | 872696 | 1 | FLANGE | GB | |
||
| 133 | 911760 | 1 | SCREW | GB | |
||
| 134 | 324006-02 | 4 | SCREW | GB | |
||
| 135 | 918486 | 1 | RIVING KNIFE | GB | |
||
| 136 | 874649 | 1 | INSERT | GB | |
||
| 137 | 322491 | 2 | SCREW | GB | |
||
| 138 | 589164-08 | 1 | CORDSET | GB | |
||
| 139 | 916969 | 1 | PROTECTOR | GB | |
||
| 140 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 141 | 894748 | 2 | O RING | GB | |
||
| 142 | 324006-00 | 3 | SCREW | GB | |
||
| 144 | 322001 | 1 | SWITCH | Lock-Off | GB | |
|
| 146 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 149 | 879420-01 | 1 | FENCE | GB | |
||
| 154 | 747329 | 9 | SCREW | GB | |
||
| 155 | 911353 | 2 | SCREW | GB | |
||
| 156 | 330016-07 | 2 | WASHER | GB | |
||
| 157 | 322078 | 2 | NUT WING | GB | |
||
| 159 | 322320 | 1 | KNOB | GB | |
||
| 161 | 321354 | 2 | LEAD 70MM | GB | |
||
| 163 | 322319 | 2 | NUT | GB | |
||
| 164 | 322318 | 2 | SCREW | GB | |
||
| 168 | 372748-05 | 1 | SCREW | GB | |
||
| 170 | 870405 | 1 | WASHER | GB | |
||
| 174 | 918366 | 1 | RUBBER | GB | |
||
| 177 | 879217 | 1 | LEAD 250MM | GB | |
||
| 178 | 322462 | 1 | LATCH | GB | |
||
| 179 | 323253 | 1 | SCREW | GB | |
||
| 180 | 878846 | 1 | LEAD 360MM | GB | |
||
| 185 | 918296 | 2 | BLOCK | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 326866-00 | 1 | BRAND LABEL | GB | |
